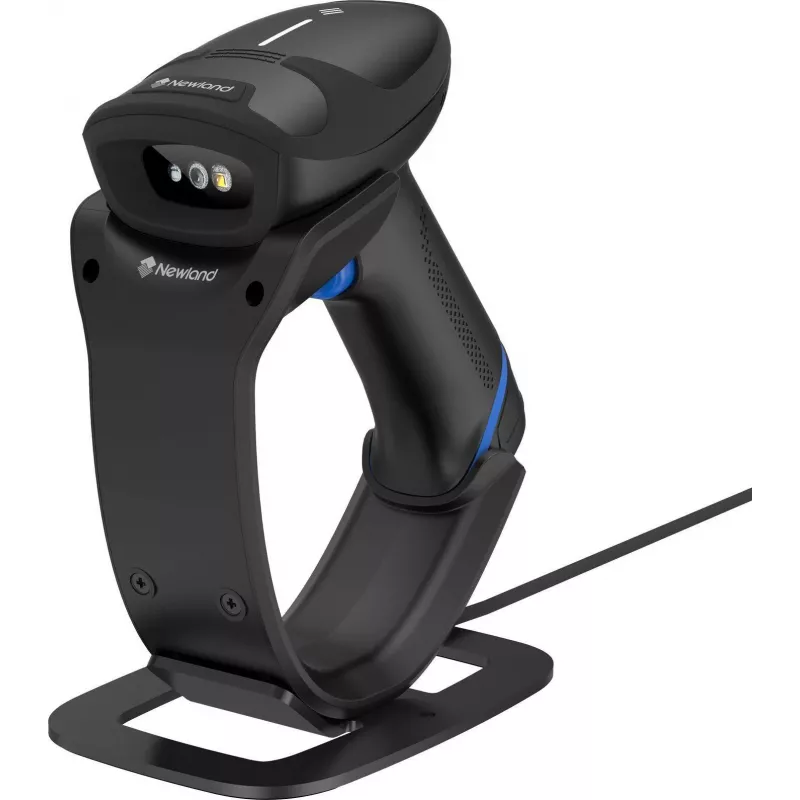

Newland HR33 Marlin 2D CMOS Megapixel Ασύρματος Bluetooth Σαρωτής Barcode

The Newland HR33 Marlin stands apart from typical handheld scanners by pairing a high-resolution megapixel CMOS imager with long-range Bluetooth 4.1 connectivity, enabling true freedom of movement up to 50 metres from its base. Unlike conventional laser or low-resolution CCD readers, it captures both 1D and 2D barcodes with exceptional speed and precision, even from smartphone screens or damaged labels. The rugged IP54-rated housing shrugs off dust and splashes, while the 1.5 m drop resistance ensures reliability in demanding retail, warehouse, and field service environments. A generous 2200 mAh battery keeps you scanning for up to 12 hours, and the 15 MB onboard memory supports batch mode when out of wireless range.

Highlights

• Megapixel CMOS imager with 1280 x 960 resolution for fast, accurate 1D/2D reading
• Bluetooth 4.1 (BLE) wireless with up to 50 m line-of-sight range
• Rugged design: IP54 sealed, survives 1.5 m drops to concrete
• All-day operation: 2200 mAh Li-ion battery, up to 12 hours per charge
• Batch mode with 15 MB onboard memory for offline scanning
• Multiple host interfaces: USB, Bluetooth SPP, HID-KBW, Virtual COM

In daily use

From the moment you pick up the HR33 Marlin, its balanced, lightweight body and intuitive trigger make scanning effortless. The red LED aiming dot and white LED illumination ensure precise targeting even in dimly lit aisles or bright sunlight. Pairing with a host device is straightforward via Bluetooth or the included USB cradle/dongle, and the scanner can switch between HID keyboard wedge, SPP, or virtual COM modes to match your software. When you roam beyond wireless coverage, the scanner automatically stores data in its 15 MB buffer and uploads once reconnected—no lost scans. The audible beeper and clear LED indicators confirm every successful read, reducing errors and speeding up checkout or inventory tasks.

Full specifications

• Scan technology: Megapixel CMOS imager
• Barcode compatibility: 1D and 2D
• Resolution: 1280 x 960 pixels
• Light source: White LED
• Aiming pattern: Red LED dot
• Scan angles: 42° horizontal, 33° vertical
• Connectivity: Bluetooth 4.1 (BLE), USB (via cradle/dongle)
• Host interfaces: Bluetooth SPP, HID-KBW, Virtual COM, USB
• Wireless range: Up to 50 m line of sight
• Battery: 2200 mAh Li-ion
• Operating time: Up to 12 hours
• Charging time: Approx. 4 hours
• Onboard memory: 15 MB for batch mode
• Drop resistance: 1.5 m to concrete
• IP rating: IP54
• Operating temperature: -20°C to 50°C
• Indicators: Beeper, LED

Final note

The Newland HR33 Marlin is a professional-grade wireless scanner built for high-volume environments where mobility, durability, and reading performance are non-negotiable. Its megapixel CMOS engine and Bluetooth 4.1 deliver a future-proof solution for modern data capture needs.
