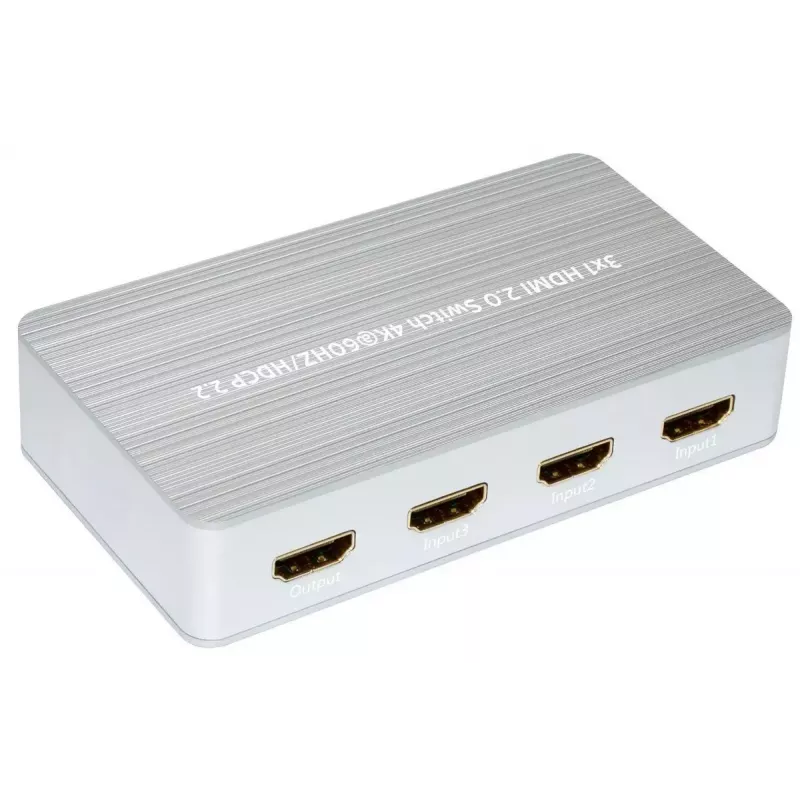

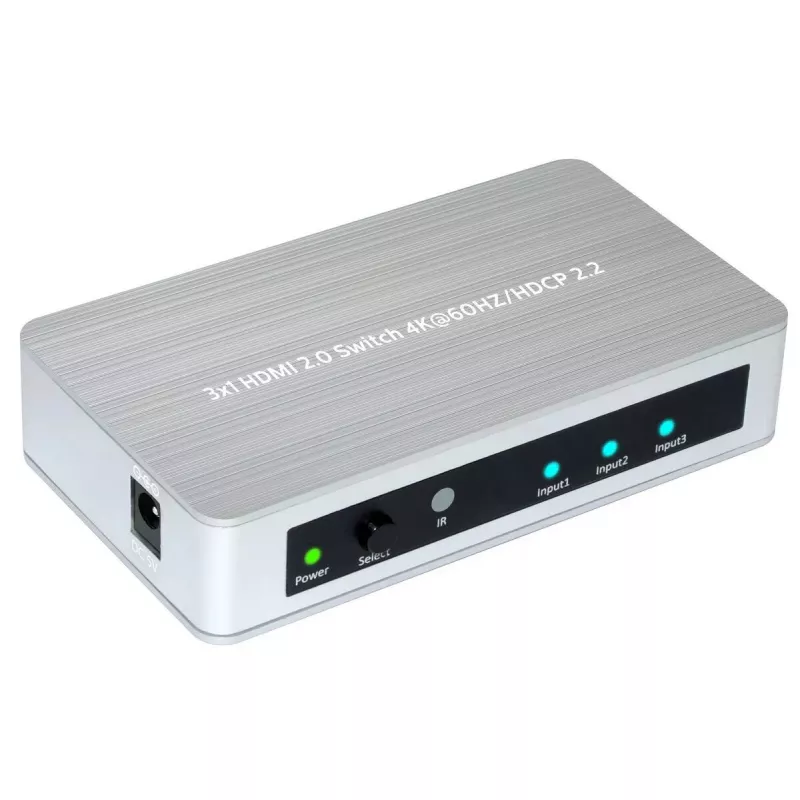

Microconnect MC-HMSW301B Διακόπτης βίντεο HDMI

The MicroConnect MC-HMSW301B is an intelligent HDMI 2.0 3x1 amplifier switcher in an aluminium housing that lets you connect three HDMI source devices to a single HD monitor or projector. It supports HDMI connections with a maximum refresh rate of 60 Hz, has typical power consumption around 5 W and is compact, weighing 0.21 kg for easy handling and transport.

Advantages

The aluminium construction provides durability and passive heat dissipation while keeping the unit lightweight. The HDMI 2.0 compatibility ensures reliable video transmission up to 60 Hz. Compact dimensions and low weight make the unit easy to install, store and carry. The switcher simplifies multi-source setups by enabling seamless selection between three HDMI inputs to a single output.

Suitable for

• Switching between multiple media players, set-top boxes or game consoles to one TV or projector
• Small meeting rooms or classrooms where several HDMI sources need to share a single display
• Home entertainment setups with multiple HDMI devices and a single monitor

Key specifications

• Model: MicroConnect MC-HMSW301B
• Video port type: HDMI (HDMI 2.0)
• Inputs: 3× HDMI, Outputs: 1× HDMI
• Maximum refresh rate: 60 Hz
• Power consumption (typical): 5 W
• Product colour: Aluminium
• Weight: 0.21 kg
• Package dimensions: 123 mm × 83 mm × 80 mm
• Brand: MicroConnect
• MPN: MC-HMSW301B
• EAN: 5704174048718

How to use

Connect up to three HDMI source devices to the switcher’s HDMI input ports and connect the HDMI output to your monitor or projector. Power the unit according to the supplied power adapter or cable. Use the device’s input selection control (button or remote, if included) to switch between sources. Ensure source devices and the display are powered on and set to compatible resolution and refresh rate settings that do not exceed 60 Hz.

Recommendations

For best results, use high-quality HDMI cables rated for HDMI 2.0 to maintain stable signal transmission. Place the switcher in a ventilated location to support passive cooling. If you experience handshake or compatibility issues, power cycle connected devices and verify display resolution settings.
