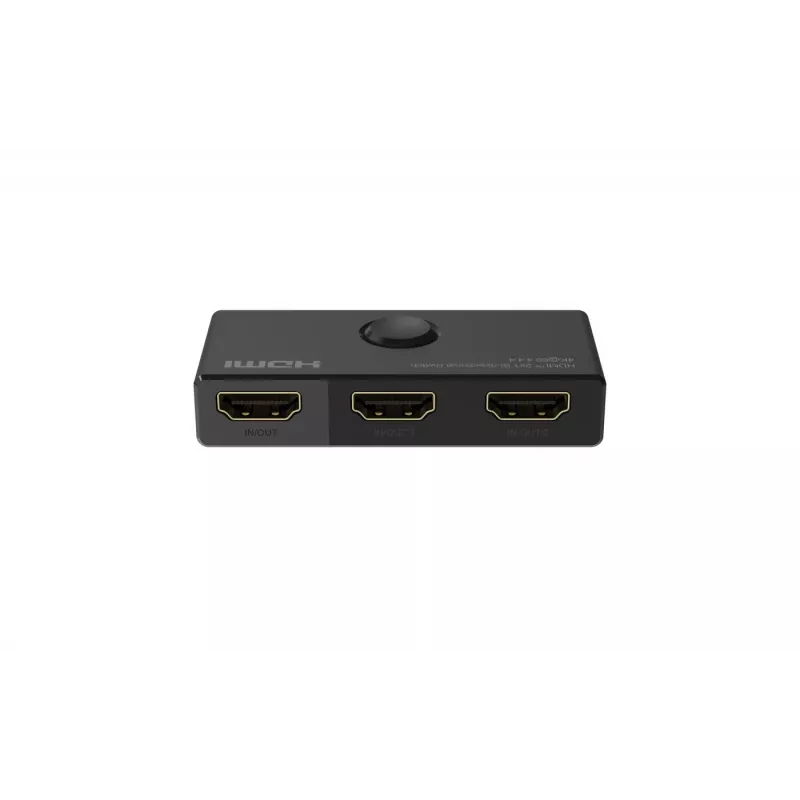

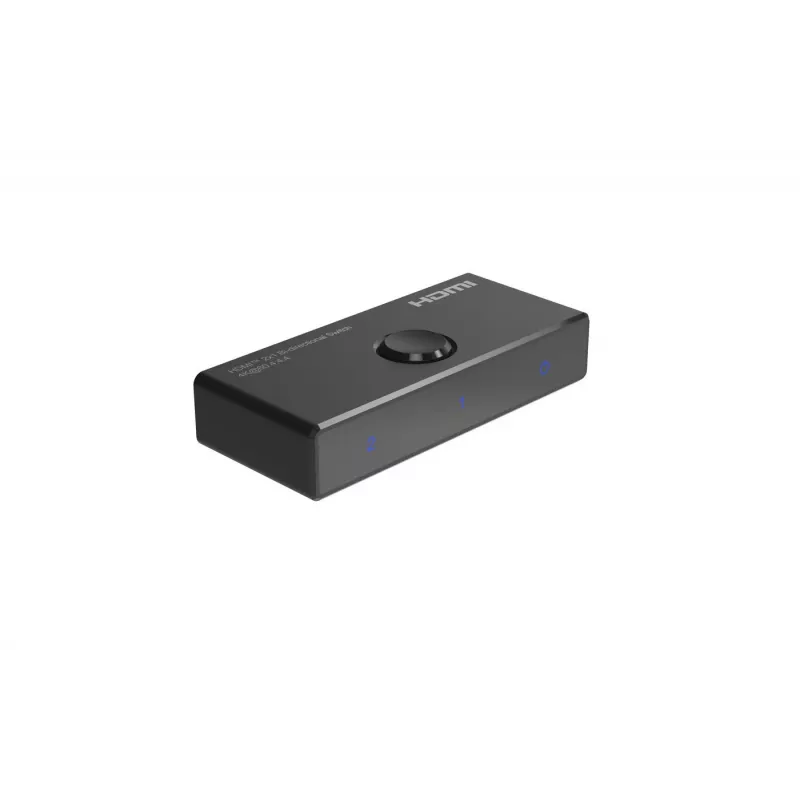

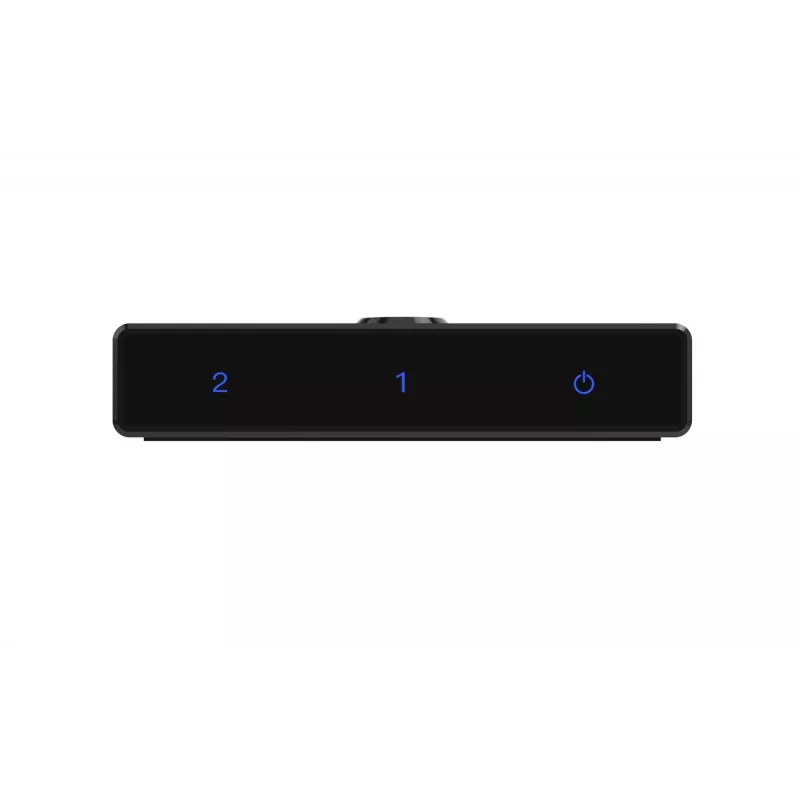

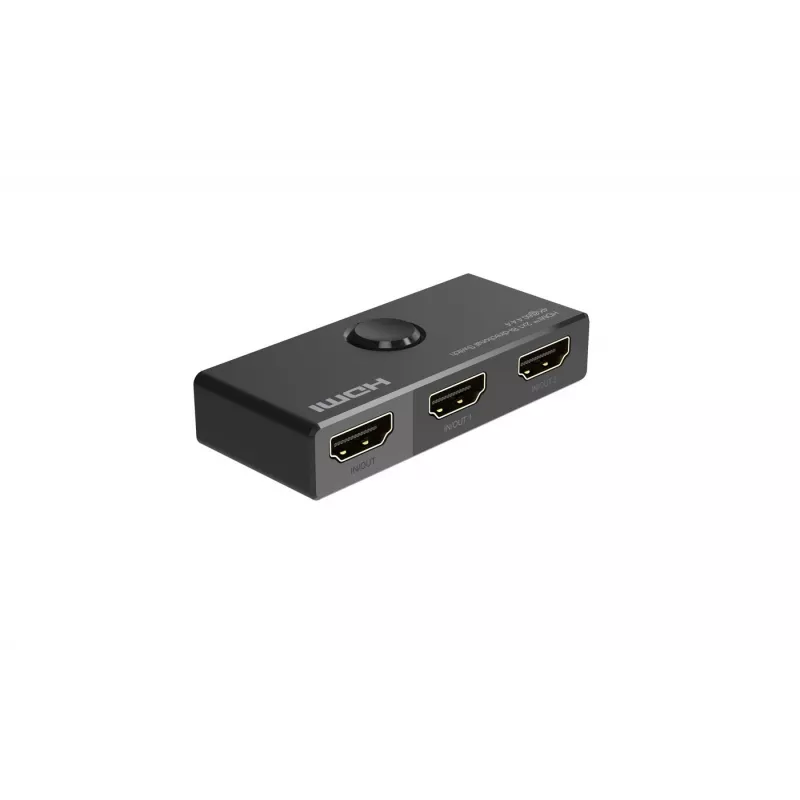

Διακόπτης βίντεο HDMI Microconnect MC-HDMISWITCH-4K-MINI 4K 60Hz

The Microconnect MC-HDMISWITCH-4K-MINI is a compact bi-directional HDMI video switch that supports 4K resolution at 60Hz with 4:4:4 HDR color. Housed in a durable ABS black casing and measuring 73.6 mm × 32 mm × 15 mm, this small device enables flexible connection management between HDMI sources and displays. Certified to CE, RoHS and FCC standards, it is suitable for integration into home or small-office multimedia setups where reliable signal switching is required.

Advantages

The MC-HDMISWITCH-4K-MINI offers bi-directional operation so it can be used either to connect multiple HDMI sources to a single display or to switch one source between multiple displays without unplugging cables. It supports 4K@60Hz and 4:4:4 HDR for accurate color reproduction and smooth motion. Its compact size and lightweight ABS construction make it easy to place near devices or inside AV cabinets, while industry certifications ensure compliance with common safety and EMC requirements.

Suitable for

• Connecting multiple HDMI sources (e.g., Blu-ray, game console, streaming box) to one screen
• Switching one HDMI source between two displays
• Small home theatre and multimedia workstations
• Office meeting rooms and presentation setups

Key specifications

• Model: Microconnect MC-HDMISWITCH-4K-MINI
• Video port type: HDMI
• Resolution support: up to 4K at 60Hz, 4:4:4 HDR
• Material: ABS
• Colour: Black
• Dimensions: 73.6 mm × 32 mm × 15 mm
• Weight: 0.027 kg
• Certifications: CE, RoHS, FCC

How to use

Place the MC-HDMISWITCH-4K-MINI near your HDMI devices and connect HDMI cables from sources and displays to the switch ports according to the required direction of signal flow. Use the device controls (or button on the unit) to select the active source or output. Ensure all connected devices are powered on and set to compatible resolution and HDR settings if needed. No driver installation is required for standard HDMI operation.

Recommendations

For best results, use high-quality HDMI cables rated for 18 Gbps or higher to maintain 4K@60Hz with 4:4:4 HDR. Keep the switch in a ventilated location and avoid placing it near strong electromagnetic interference sources. Verify device compatibility and set display resolution manually if automatic negotiation does not select the desired output.
