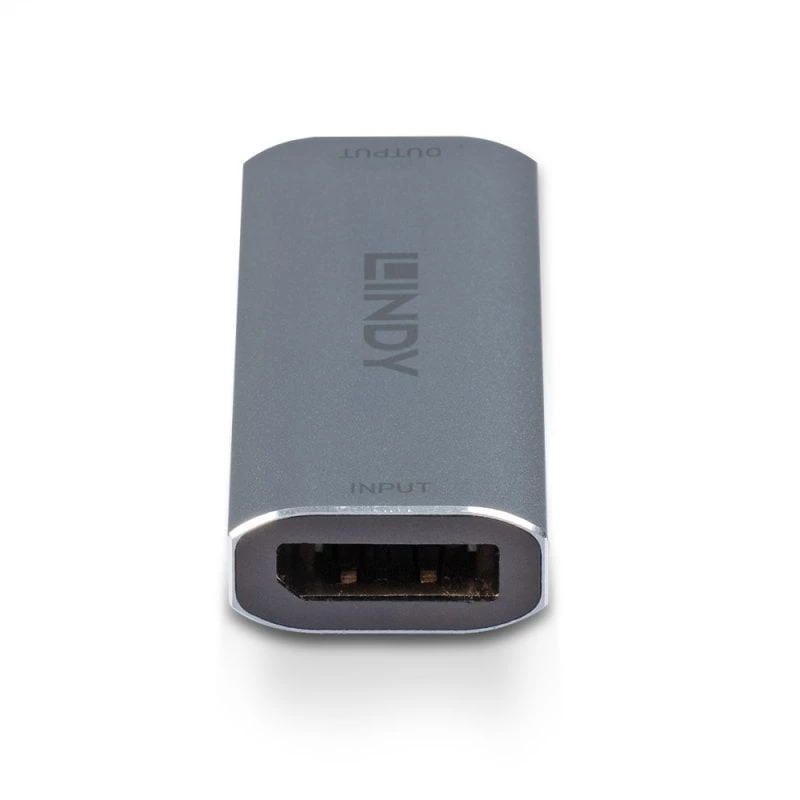

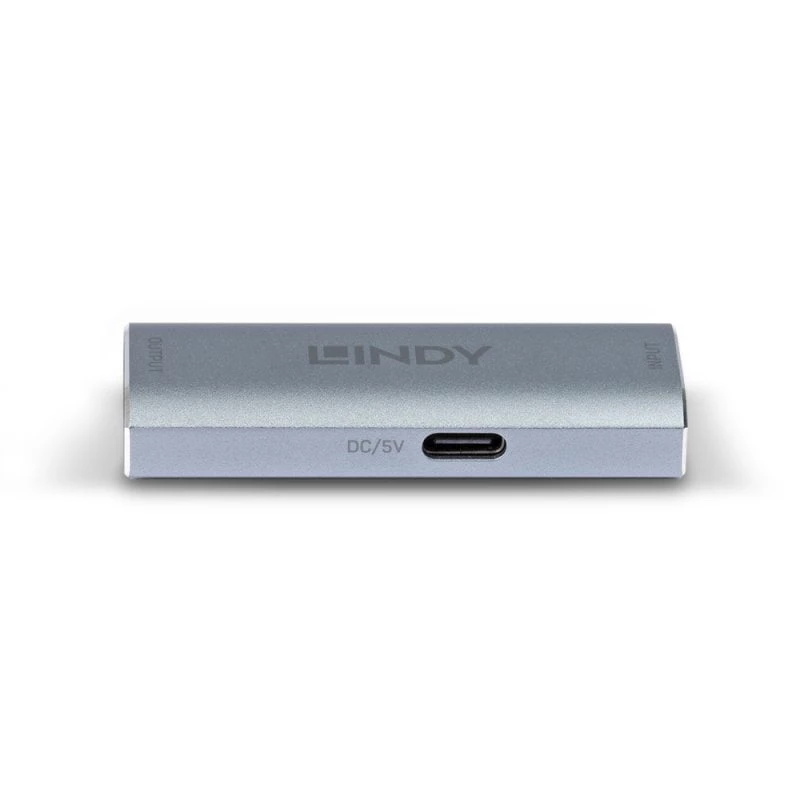

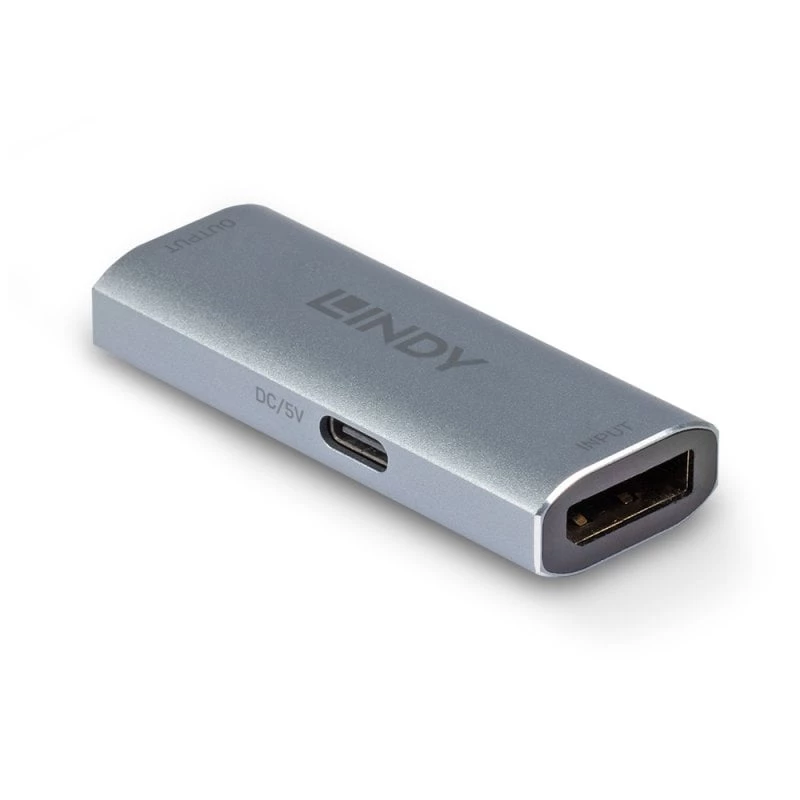

Lindy DisplayPort 1.4 Repeater, 20 m

The Lindy DisplayPort 1.4 Repeater extends DisplayPort 1.4 signals over distances of up to 20 m. It supports resolutions up to 3840x2160@144Hz 4:4:4 12bit and 7680x4320@60Hz 4:4:4 8bit, as well as HDR. Installation is plug-and-play with no drivers required.

Key features

• Extends DisplayPort 1.4 signals up to 20 m
• Supports resolutions up to 3840x2160@144Hz 4:4:4 12bit and 7680x4320@60Hz 4:4:4 8bit
• Supports HDR (High Dynamic Range)
• Plug-and-play installation – no drivers required
• DPCP-compatible

Specifications

• Brand: Lindy
• MPN: 38421
• AV interface: DisplayPort
• Interface standard: DisplayPort 1.4
• Supported bandwidth: 32.4 Gbit/s
• Max. resolution: 7680x4320@60Hz 4:4:4 8bit
• Transmission medium: 2x DisplayPort cable
• Special properties: DPCP-compatible, HDR
• Inputs: DisplayPort (socket)
• Outputs: DisplayPort (socket)
• Power supply: USB Type C (socket)
• Max. range 40 m – 3840x2160@60Hz (with multiple units): 15 m – 7680x4320@60Hz / 3840x2160@120Hz
• Max. range (input) 10 m – 3840x2160@60Hz (single unit): 5 m – 7680x4320@60Hz / 3840x2160@120Hz
• Max. range (output) 10 m – 3840x2160@60Hz (single unit): 5 m – 7680x4320@60Hz / 3840x2160@120Hz
