LevelOne RJ45 σε SFP Gigabit μετατροπέας μέσων, 802.3bt 60W PoE PSE

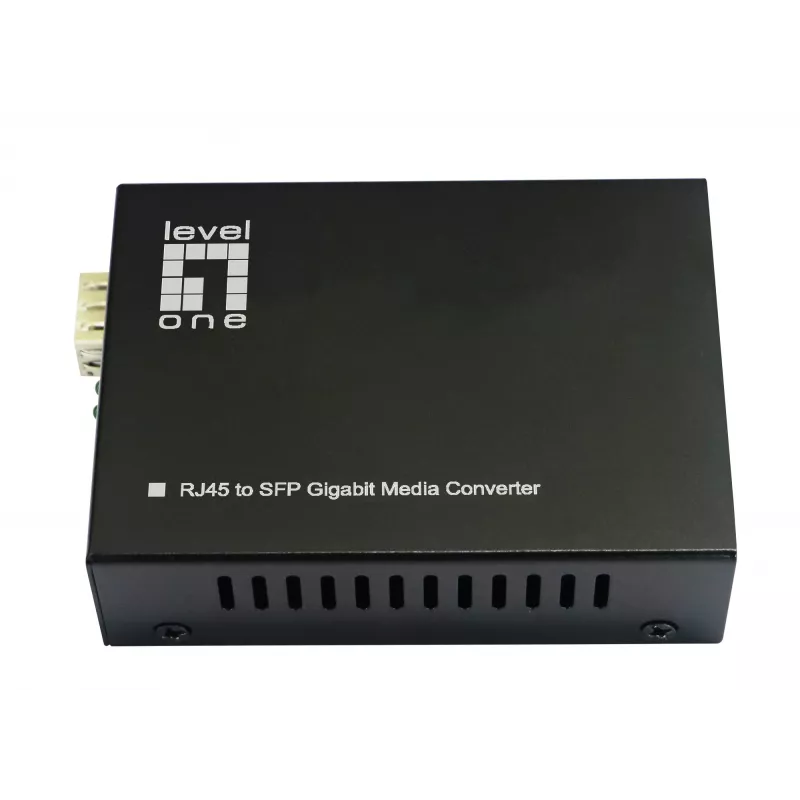

The LevelOne GVT-2015 is a Gigabit media converter that delivers data and up to 60W of IEEE 802.3bt High Power over Ethernet (PoE) over a single RJ45 port while providing a Gigabit SFP fiber uplink. It supports Gigabit Ethernet transmission (1000/100/10 Mbit/s) and is compatible with both multi-mode and single-mode fiber transceivers. The device is intended to power and connect network equipment that require elevated PoE power without additional power cabling.

Advantages

The GVT-2015 combines a Gigabit SFP fiber interface with an end-span 802.3bt PoE PSE delivering a total PoE budget of 60W, enabling long-distance fiber links while supplying power to a single powered device via the RJ45 port. It supports standard Ethernet rates and has LED indicators for LAN, PoE and Power, simplifying installation and status monitoring. Compact form factor and wide input voltage range (100–240 V) allow flexible deployment in wired network expansions.

Suitable for

• Powering and connecting PTZ network cameras and speed domes
• Feeding power to color touchscreen VoIP telephones
• Supplying multiband wireless LAN access points (IEEE 802.11a/b/g/n/ac/ax)
• Delivering data and power to other high-power network devices requiring up to 60W

Key specifications

• Model: LevelOne GVT-2015
• PoE standard: IEEE 802.3bt (High Power), PoE PSE, total budget 60 W
• Ethernet LAN (RJ-45) ports: 1 (10/100/1000 Mbit/s)
• Fiber port: 1 × SFP (supports multi-mode and single-mode transceivers)
• Maximum data transfer rate: 1000 Mbit/s
• Ethernet interface types: Gigabit Ethernet, Fast Ethernet

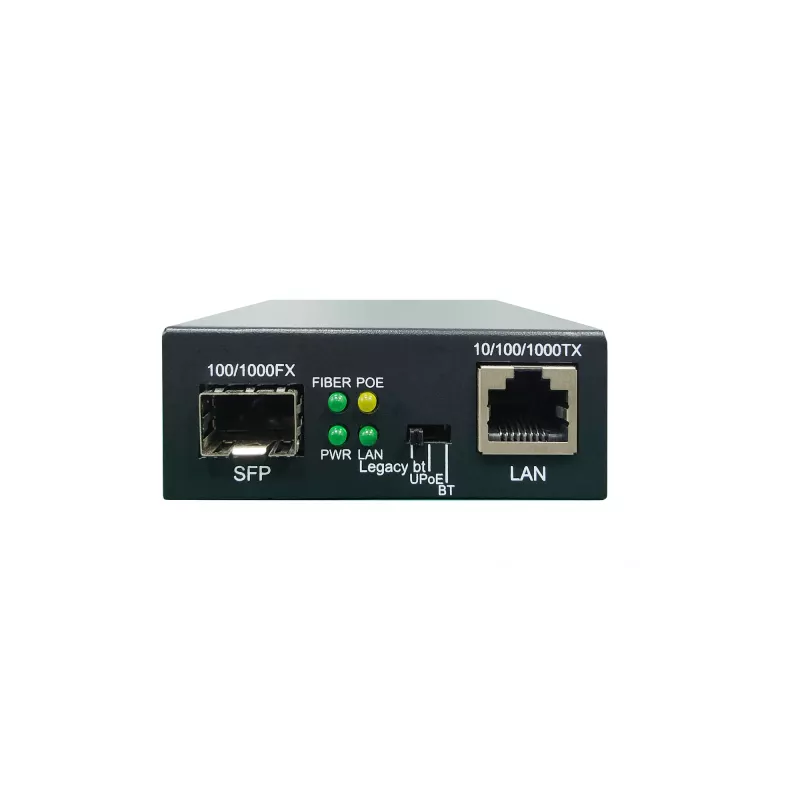

• Indicators: LAN, PoE, Power LEDs
• Input voltage: 100–240 V
• Product colour: Black
• Weight: 0.32 kg

How to use

Install a compatible Gigabit SFP transceiver in the SFP slot and connect the fiber link to your network. Connect the powered device to the RJ45 port; the converter will supply PoE power (up to 60 W) while passing data at Gigabit speeds. Connect the converter to AC power (100–240 V). Verify operation using the LAN, PoE and Power LEDs. Use appropriate fiber type matching the installed SFP transceiver (multi-mode or single-mode).

Recommendations

For reliable operation, use SFP transceivers and fiber cable matching network distance and bandwidth requirements, ensure the connected PD supports 802.3bt power classes, and verify total power budget when connecting high-power devices. Install the unit in a dry, ventilated location and avoid exceeding the specified environmental and power limits.
