Lanview MO-FG-TRAN-LX μονάδα πομποδέκτη δικτύου οπτική ίνα 1000 Mbit/s SFP 1310 nm

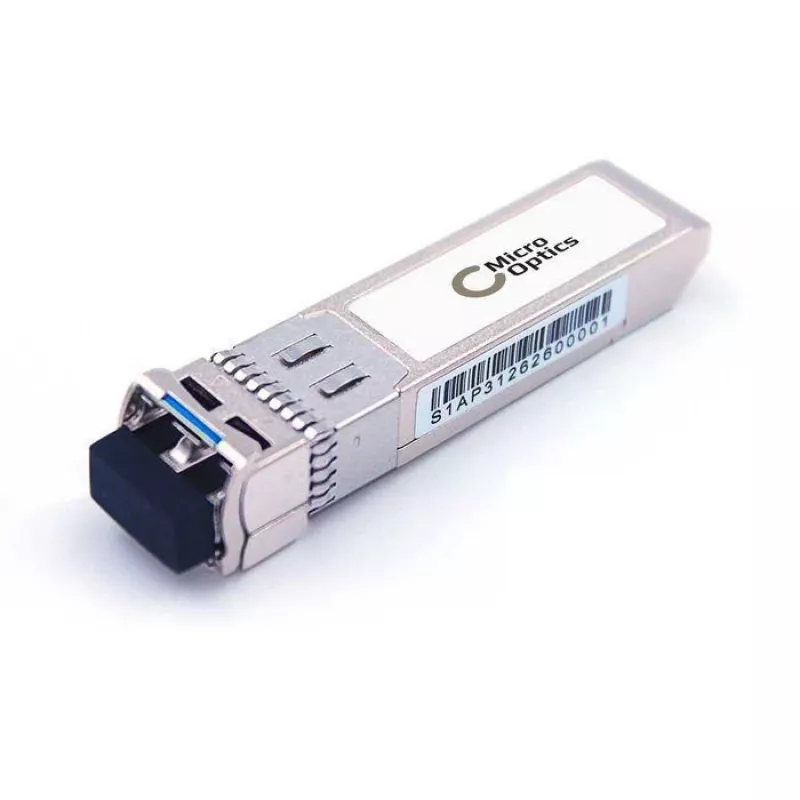

The Lanview MO-FG-TRAN-LX is a fiber optic SFP transceiver module by MicroOptics designed for reliable 1 Gbit/s network links. It supports single-mode operation at a wavelength of 1310 nm, comes in an aluminum housing and has compact dimensions (14 mm × 56 mm × 8.5 mm) with a weight of 40 g, making it suitable for space-constrained network equipment.

Advantages

The module provides a standard SFP form factor for easy hot-plug installation, stable single-mode transmission at 1310 nm and a maximum data rate of 1000 Mbit/s. Its aluminum construction offers basic mechanical protection while keeping the unit lightweight and compact for rack and chassis installations.

Suitable for

• Gigabit Ethernet links over single-mode fiber
• Long-distance fiber connections within campus or metro networks
• Replacement or upgrade of SFP fiber ports in switches and routers

Key specifications

• Brand: MicroOptics
• Model / MPN: MO-FG-TRAN-LX
• Form factor: SFP (aluminum housing)
• Data rate: up to 1000 Mbit/s
• Wavelength: 1310 nm (single-mode)
• Dimensions (W × D × H): 14 × 56 × 8.5 mm
• Weight: 40 g
• EAN: 5712505767405

How to use

Insert the MO-FG-TRAN-LX into a compatible SFP slot on a switch, router or media converter while the device is powered according to the vendor’s hot-plug guidelines. Connect the single-mode fiber cable to the transceiver’s optical port, ensure correct connector type and polarity, and verify link status through the host device management interface.

Recommendations

Use single-mode fiber rated for the intended link distance, avoid exposing the optical ports to dust by using protective caps when disconnected, and follow the host device’s compatibility list to ensure proper operation.
