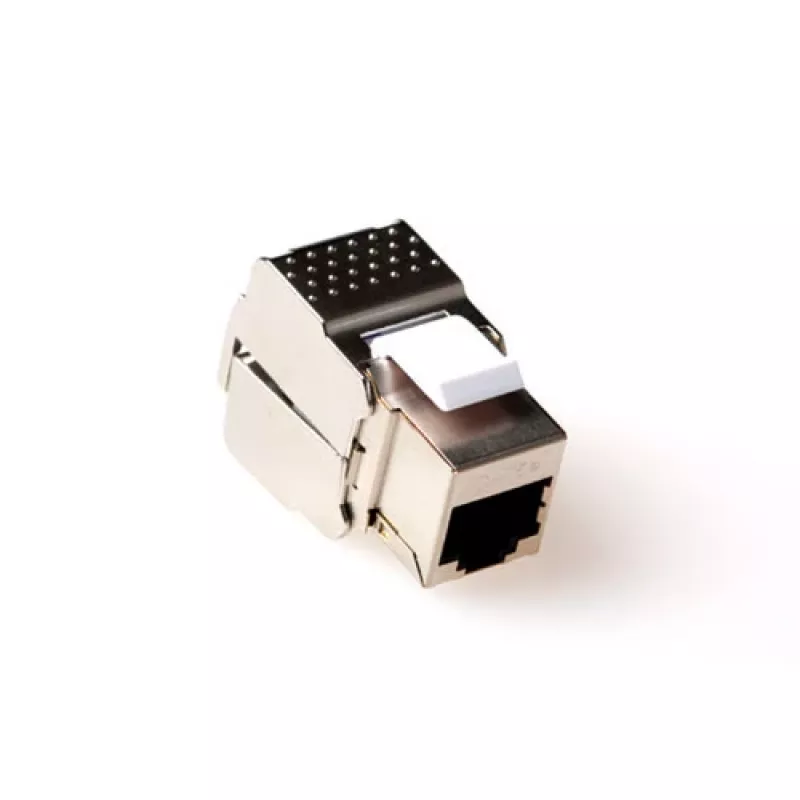

Keystone Jack ACT CAT6A Full Shielded Tool Free TD6510

The ACT CAT6A Keystone Jack Full Shielded Tool Free TD6510 is a fully shielded, tool-free RJ45 keystone designed for quick, reliable termination of Cat6A network cabling. Constructed with steel shielding and integrated IDC terminations, this keystone jack supports high-speed data transmission while reducing electromagnetic interference. Its tool-free design simplifies installation in patch panels, wall plates, and surface mount boxes, offering a compact solution for structured cabling in residential and commercial environments.

Advantages

The full metal shielding minimizes crosstalk and protects against external EMI, improving signal integrity for 10 Gigabit Ethernet and other high-bandwidth applications. Tool-free IDC termination enables fast, consistent connections without the need for punch-down tools, saving time during deployment and maintenance. The precision RJ45 contact ensures stable mating with network plugs, while the durable construction offers mechanical protection and long service life.

Suitable for

• 10 Gigabit Ethernet structured cabling for offices and data centers
• High-performance residential networks and home office setups
• Wall plate and patch panel installations in commercial buildings
• Environments with increased electromagnetic interference that require shielded connectors

Key specifications

• Category: Cat6A performance class supporting up to 500 MHz
• Connector type: RJ45 female keystone with IDC termination
• Shielding: Full metal (foil/steel) shielded body for EMI protection
• Termination: Tool-free IDC for each wire pair, 8P8C compatible
• Material: Steel shielding with durable contact and housing components
• Mounting: Standard keystone snap-fit for wall plates, patch panels and surface boxes
• Performance: Designed for 10GBASE-T and high-speed Ethernet applications

How to use

Prepare the Cat6A cable by stripping the outer jacket to expose the inner pairs according to installation guidelines, taking care not to nick the wires. Untwist the pairs and follow the colour code indicators on the keystone jack to insert each conductor into the corresponding IDC channel. Press the wires firmly into the IDC slots until they are seated; the tool-free mechanism secures the conductors and establishes reliable connections. Snap the keystone module into a compatible wall plate, patch panel or surface mount box and connect an RJ45 patch cable to the front connector. Test the link with appropriate network testing equipment to verify continuity, pair integrity and desired performance levels.

Recommendations

Use with Cat6A stranded or solid cables intended for 10GBASE-T; maintain proper cable bend radius and avoid excessive untwisting of pairs to preserve performance. Ensure the outlet, patch panel and cable shielding are properly grounded to maximize EMI protection. After installation, perform certification or channel testing to confirm compliance with Cat6A performance requirements.
