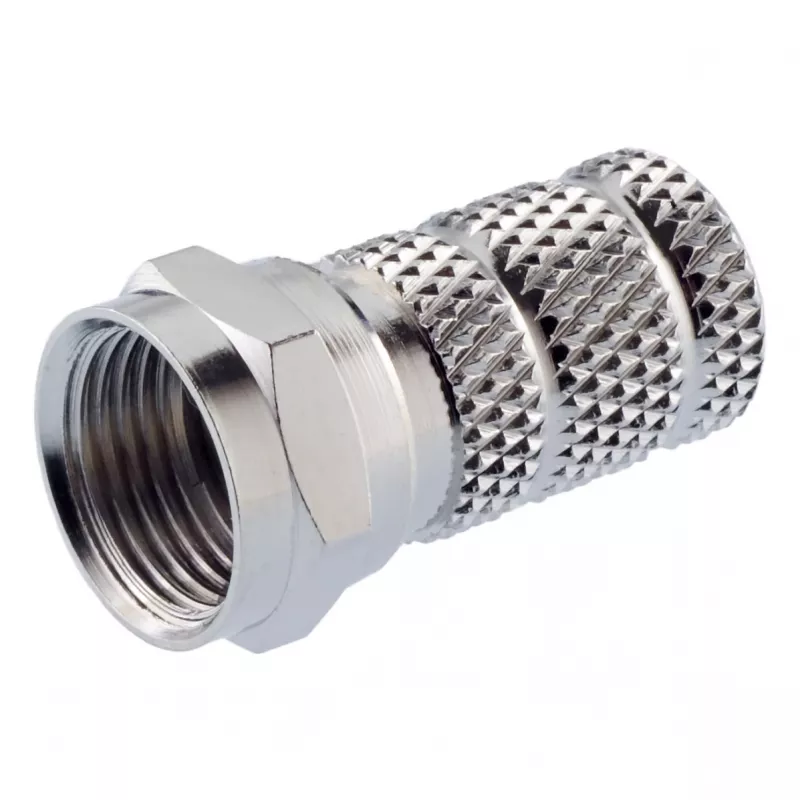

Kathrein EMK 15 Συνδετήρας F συμπίεσης 5mm

Satellite installers and cable technicians rely on the Kathrein EMK 15 when terminating coaxial cables with a 5 mm outer diameter. This compression F-connector is built for professional use in SAT, DVB-T, cable TV, and broadband installations, delivering a secure, weather-resistant connection for both indoor and outdoor environments.

Key specifications

• Connector type: F-connector, compression style
• Compatible cable outer diameter: 5.0 mm
• Inner conductor diameter: 0.5 - 1.1 mm
• Impedance: 75 Ohm
• Frequency range: 5 - 2400 MHz
• Shielding effectiveness: > 100 dB (Class A+)
• Return loss: > 30 dB (up to 1 GHz)
• Insertion loss: < 0.1 dB (up to 1 GHz)
• Material: Brass, nickel-plated
• Installation: Requires compression tool
• Environmental suitability: Indoor and outdoor
• Standard compliance: EN 50083-2

Why choose it

The EMK 15 ensures a gas-tight, moisture-resistant seal that prevents signal degradation and corrosion. Its high shielding effectiveness and low insertion loss maintain signal integrity across the entire frequency range, making it a reliable choice for demanding installations. The nickel-plated brass body offers excellent mechanical stability and durability, even in harsh weather conditions.

Ideal use cases

• Satellite TV antenna connections
• DVB-T and cable TV distribution
• Broadband internet coaxial runs
• Outdoor antenna installations
• Professional AV and RF setups

Good to know

A compression tool is required for proper installation; the connector is not reusable once compressed. It meets EN 50083-2 standards for electromagnetic compatibility in cabled distribution systems. Pair with Kathrein coaxial cables for optimal performance.
