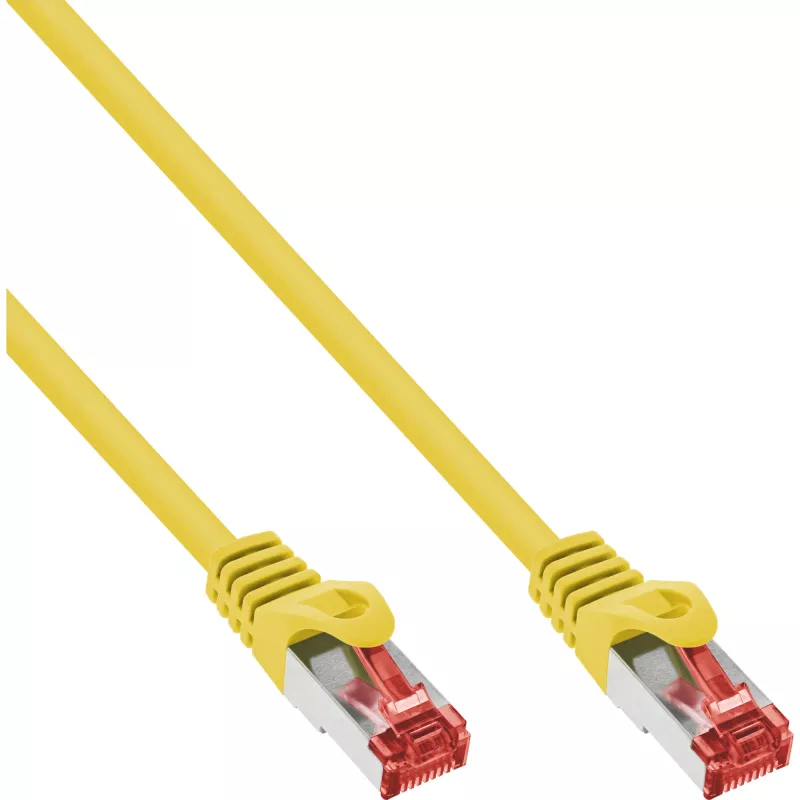

Καλώδιο Patch InLine S/FTP PiMF Cat.6 250MHz χαλκός χωρίς αλογόνα κίτρινο 15m

Interference-free Gigabit transmission:Double S/FTP shielding (PiMf) for stable network connections up to 250 MHz.
Halogen-free cable sheathing:Ideal for safety-critical environments such as public institutions and industrial facilities.
Reliable signal quality:Solid copper strands (AWG27) guarantee low-loss data transmission over all lengths.
High mechanical resilience:Robust RJ45 connectors with molded bend and snap protection for long-term use.
Practical features:Length marking on the connector, assembled with molded connectors and red-marked RJ45 connector for quick identification.

The InLine® Cat.6 patch cables with S/FTP shielding (PiMf) are specially designed for professional network installations in IT, industry, and public institutions. They support Gigabit connections at frequencies up to 250 MHz and offer impressive transmission reliability thanks to the combination of overall braided shielding and paired metal foil shielding. The solid copper strands in AWG27 format ensure reliable, low-loss signal transmission even over longer distances. The RJ45 connectors, molded on both sides, are equipped with kink protection, snap-on protection, and a red marking—ideal for quick identification during installation. In addition, the cable length is indicated directly on the connector, which simplifies organization in the server cabinet or patch panel. The halogen-free sheath protects against toxic gases in the event of a fire and thus meets the requirements of safety-critical applications. The cables are assigned 1:1 in accordance with EIA/TIA-568B.

2x RJ45 plugs molded
Injected kink protection and snap-in protection
Red-colored RJ45 plug for quick differentiation
AWG27 wire cross-section with solid copper strands
Total braided shielding and PiMf - Paired in metal foil (old designation: S-STP PiMf)
Halogen-free sheath
With length indication on the connector
1:1 assignment according to EIA/TIA 568B

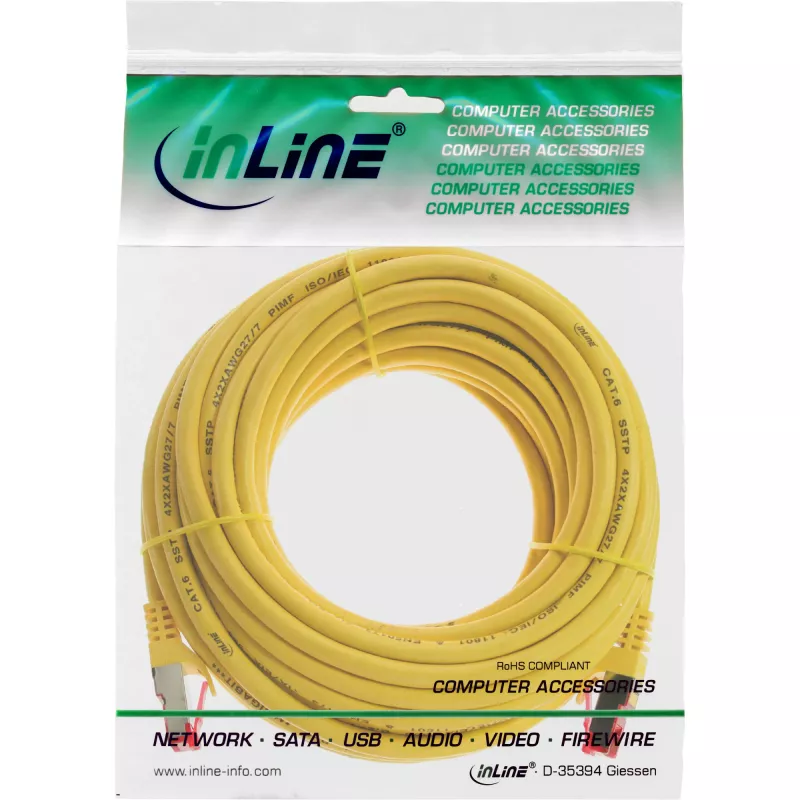

In POS-compatible PE bag with EAN code

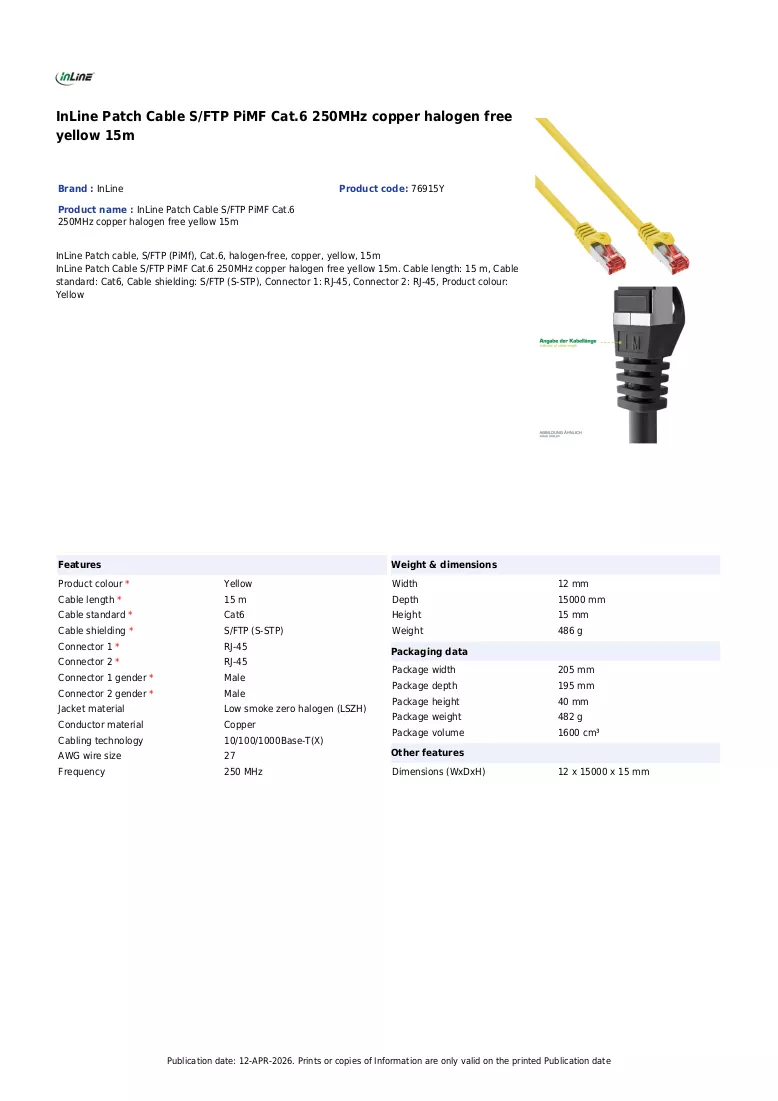

InLine Patch Cable S/FTP PiMF Cat.6 250MHz copper halogen free yellow 15m. Cable length: 15 m, Cable standard: Cat6, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Product colour: Yellow

How to use

Connect one RJ-45 connector to the network port of your switch, router, patch panel or network card and the other connector to the corresponding device or wall socket. Ensure connectors are fully inserted until the clip clicks to establish a secure connection. Avoid tight bending and kinking of the cable; maintain the manufacturer’s recommended bend radius to preserve transmission performance. For best results route the cable away from high-power electrical lines and strong sources of electromagnetic interference.

Recommendations

For structured installations, test the cable link after installation to verify Cat.6 performance at gigabit speeds. Use labelled or colour-coded cables to simplify maintenance and replacement; the yellow colour of this cable assists visual identification in patch bays.
