Καλώδιο InLine SCSI U320 flat, 68 ακίδων, για 2 συσκευές, με τερματισμό

Integrated LVD/SE termination for stable bus architecture:The integrated terminator reduces signal reflections and ensures standard-compliant termination within existing Ultra320 SCSI structures.
Reliable Ultra320 data transfer:Supports transfer rates of up to 320 Mb/s and enables stable communication between the controller and peripheral devices.
Optimised for internal system integration:The 68-pin twisted pair ribbon cable is suitable for structured cabling within PC enclosures and industrial systems.
Daughterboard connection of up to two devices:Three IDC 68-pin sockets allow up to two SCSI U320 peripheral devices to be connected to one controller.
Compatible with LVD and SE environments:Supports LVD/SE specifications and is suitable for existing Ultra320 SCSI infrastructures.

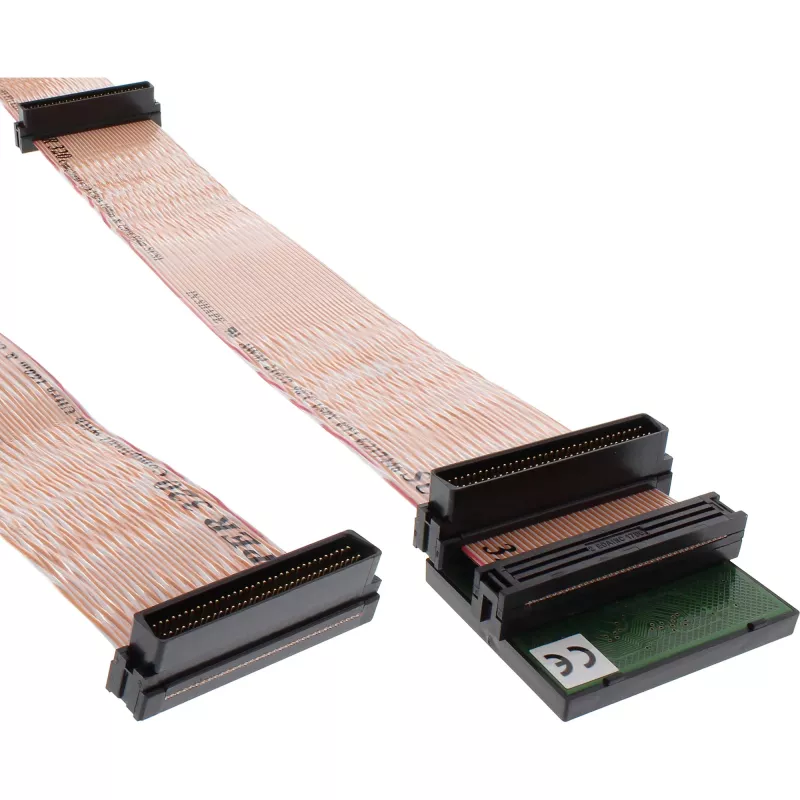

The InLine® SCSI U320 ribbon cable was developed for internal use in Ultra320 SCSI systems. It enables the structured connection of up to two peripheral devices to a SCSI U320 controller within a PC case or industrial system.
The 68-pin twisted pair ribbon cable design supports data transfers of up to 320 Mb/s and ensures stable signal quality within parallel SCSI architectures. The integrated LVD/SE terminating resistor simplifies correct bus termination and reduces potential signal reflections.
The three IDC 68-pin sockets enable flexible device chaining. The cable is suitable for maintenance work, system expansions and for securing existing infrastructures with Ultra320 SCSI technology.

Interface: Ultra320 SCSI
Design: internal ribbon cable
Number of pins: 68-pin
Connector: 3x IDC 68-pin socket
Termination: integrated LVD/SE terminating resistor
Maximum data transfer rate: 320 Mb/s
Cable length: 0.75 m
Cable type: twisted pair ribbon

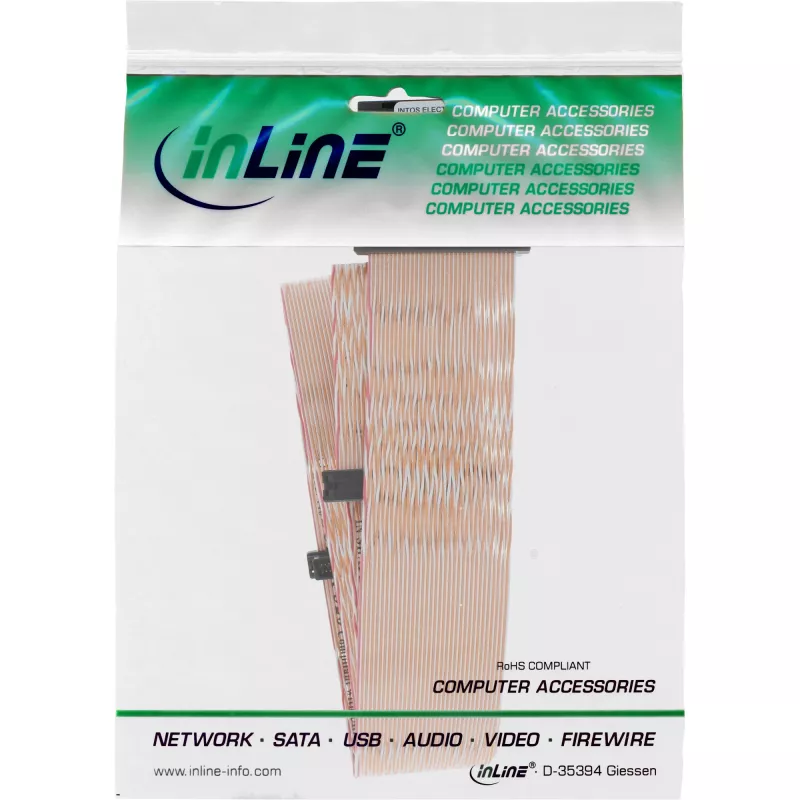

InLine SCSI U320 ribbon cable, 68pol, for 2 devices, with terminator. Product colour: Multicolour, Cable length: 0.75 m. Package width: 120 mm, Package depth: 230 mm, Package height: 33 mm. Width: 52 mm, Depth: 780 mm, Height: 20 mm

How to use

Power off the PC and open the case. Route the InLine 68-pin ribbon cable from the SCSI U320 controller to the first device, then connect the second device to the cable’s second connector. Ensure the integrated terminator is fitted at the end of the chain if required by your configuration. Secure the cable away from fans and moving parts before closing the case and powering the system.

Recommendations

For reliable operation, use this cable in systems designed for U320 SCSI standards, avoid excessive bending or twisting of the ribbon, and confirm device IDs and termination settings according to your controller and device documentation.
