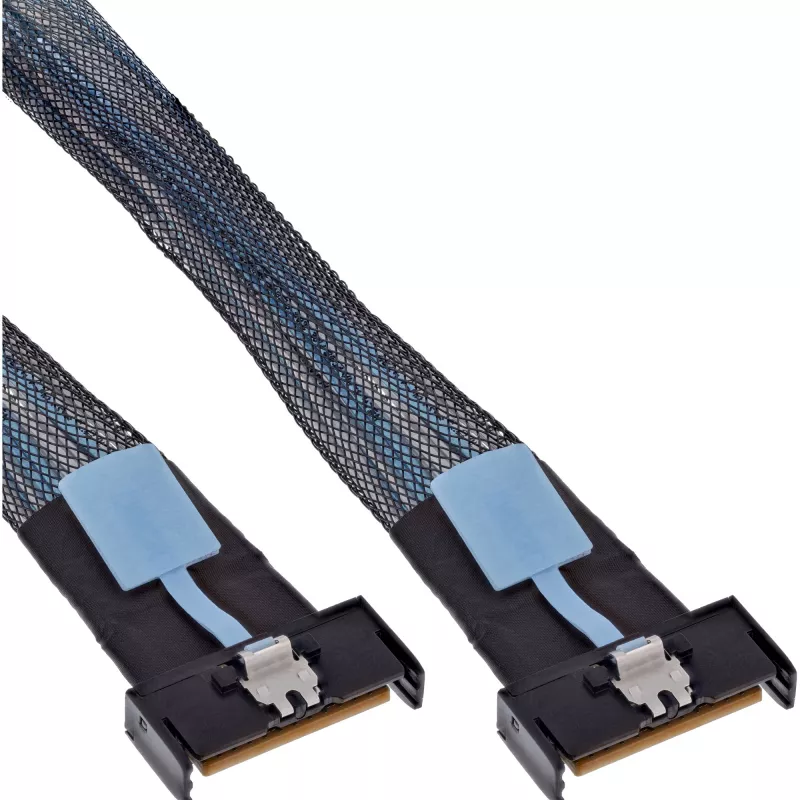

Καλώδιο InLine 27661A Serial Attached SCSI (SAS) 0,5 m 24 Gbit/s μαύρο, μπλε, γκρι

Reliable high-speed data transfer:Supports PCIe Gen5 with up to 24 Gb/s per lane (per channel) – ideal for modern server and storage applications.
Flexible system integration:MCIO x8 connector (74-pin) on both sides for compact connections between SSDs, controllers or backplanes.
Industry-compatible and versatile:Compatible with SAS 3.0/4.0, PCIe Gen3/4/5 and Ethernet up to 56GT/s PAM4.
Optimised for data centres and OEM solutions:Particularly suitable for servers, industrial PCs and embedded applications with high bandwidth.
Robust design in industrial quality:Black, shielded PCIe cable for stable signal transmission and reliable performance.

The InLine® MCIO x8 cables have been specially developed for professional high-speed applications in the server, storage and industrial network infrastructure sectors. With MCIO x8 connectors (74-pin) on both sides, the cables support transmission standards such as PCIe Gen3, Gen4 and Gen5 as well as SAS 3.0/4.0 and Ethernet protocols up to 56GT/s PAM4. This makes them the ideal solution for applications with the highest requirements in terms of bandwidth, signal quality and system compatibility.Thanks to the compact form factor, the cables are suitable for space-saving installations in rack systems as well as for use in embedded systems and industrial control units. The high-quality workmanship and solid shielding ensure reliable, loss-free data transmission, even in demanding environments.Whether in modern data centres, OEM projects or for system integrators: InLine®s MCIO cables enable stable connections between SSDs, backplanes, add-on cards and mainboards. They are the ideal choice for anyone who needs maximum performance with minimum space requirements.

Plug connection: MCIO x8 connector (74-pin) to MCIO x8 connector
Protocol support: PCIe Gen3, Gen4, Gen5; SAS 3.0/4.0; Ethernet 25G/56GT/s PAM4
Colour: Black
Cable type: Mini Cool Edge IO (MCIO)
Application: Data centres, industrial PCs, OEM systems, network backplanes

InLine 27661A. Cable length: 0.5 m, Connector 1: MCIO x8 (74-pin), Connector 2: MCIO x8 (74-pin). Compliance certificates: CE. Package length: 18.5 cm, Package width: 160 mm, Package depth: 185 mm. Country of origin: Taiwan, Package volume: 900 cm³

How to use

Connect one MCIO x8 (74-pin) connector to the corresponding MCIO port on an SSD, controller card or backplane and the other end to the matching port on the opposite device. Ensure connectors are fully seated and that connected devices support the required protocol (PCIe, SAS or Ethernet) and lane rate. Route the cable to avoid sharp bends and maintain the shielding continuity for optimal signal quality.

Recommendations

For best performance, use the cable within rack and chassis installations that allow gentle cable radii, ensure compatible firmware and host controller settings for PCIe/SAS/Ethernet operation, and avoid exposure to excessive mechanical stress or EMI sources.
