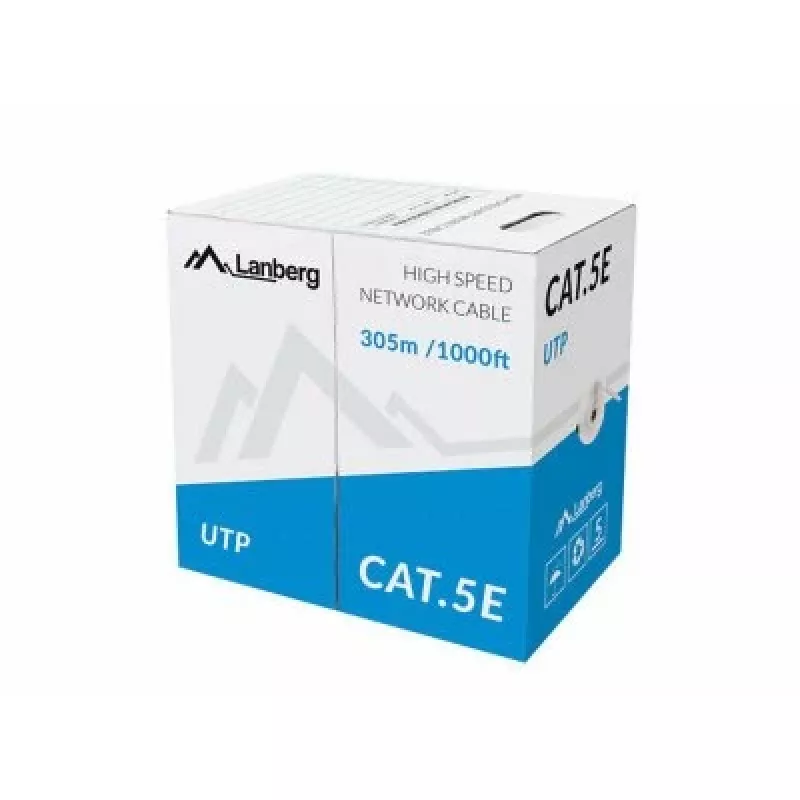

Καλώδιο δικτύου Lanberg LCU5-11CU-0305-S U/UTP Cat5e 305 m γκρι

The Lanberg LCU5-11CU-0305-S is a Cat5e U/UTP networking cable with a length of 305 m, designed for Ethernet and general data transmission. The cable uses 100% pure copper conductors (AWG 24) with single-wire stranding and HDPE conductor insulation. Its outer PVC sheath is grey (PANTONE COOL GRAY 5C) and the cable includes a printed meter counter at every metre.

Advantages

This Cat5e cable supports operation up to 100 MHz and a working distance of 100 m, providing reliable performance for Fast Ethernet installations. The use of pure copper conductors and HDPE insulation ensures stable signal transmission and consistent electrical characteristics. The printed length counter simplifies installation and measurement on site, while the unshielded U/UTP design is suitable for typical residential and office environments.

Suitable for

• Structured cabling for home networks
• Office Ethernet installations (Fast Ethernet)
• Patch panels and keystone jacks
• Horizontal and vertical cable runs up to 100 m

Key specifications

• Cable type: U/UTP Cat5e
• Length: 305 m
• Conductor material: 100% copper (CU)
• Conductor size/stranding: AWG 24 (4*2*0.50 mm), single wire
• Conductor insulation: HDPE, 0.88 mm
• Outer sheath: PVC, 5.0 mm (Colour: PANTONE COOL GRAY 5C)
• Frequency range: up to 100 MHz
• Characteristic impedance: 100 Ω ±15
• Direct-current resistance (20°C): ≤ 9.1 Ω / 100 m
• Pair-to-ground capacitance: ≤ 160 pF / 100 m
• Recommended guide/connector diameter for braided cables: 1.0 mm
• Operating temperature: -20 to 75 °C
• Transport and storage temperature: 0 to 60 °C
• Packaging: Colour inner box with master carton (box dimensions: 35 x 35 x 21 cm; carton: 36.5 x 36.5 x 43.5 cm)

How to use

Run the cable along planned cable routes, observing the maximum recommended working distance of 100 m for a single link. Use appropriate cable management and separation from strong electrical sources to minimise interference. Terminate the cable on compatible RJ45 connectors, keystone jacks or patch panels designed for Cat5e AWG 24 conductors, and follow standard crimping or punch-down procedures. Use the printed meter marks to measure required lengths and cut the cable precisely.

Recommendations

For best results, avoid tight bends and excessive pulling force; follow industry installation standards for U/UTP Cat5e cabling. Verify continuity and performance with a cable tester after termination, and keep individual link lengths within 100 m to ensure proper signal integrity.
