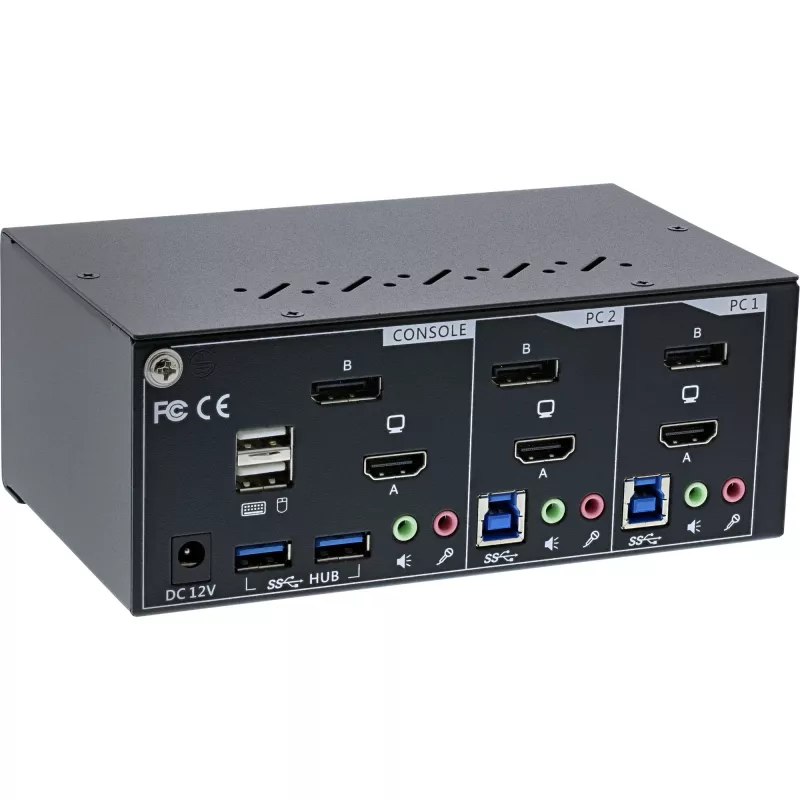

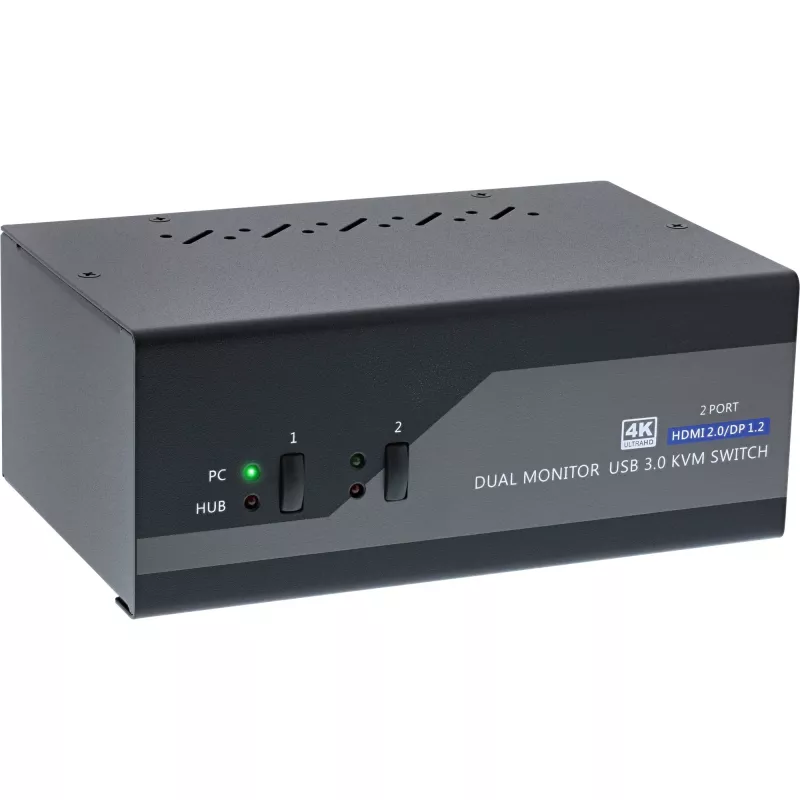

InLine KVM Desktop Switch, 2-Port, Dual-Monitor, DP+HDMI, 4K, USB 3.0, Audio

The InLine KVM Desktop Switch was specially developed for the use of two monitors (1x HDMI, 1x DisplayPort) on two multimedia computers. With the InLine KVM Desktop Switch you can completely control two PCs with only one USB keyboard, mouse and two monitors. This dual monitor HDMI/DP KVM switch supports resolutions of up to 3840x2160 (4K) at 60Hz for maximum comfort when adapting to your display needs.
With TTU emulation technology integrated into a new ASIC chip, the dual monitor HDMI/DP USB KVM switch is able to offer complete versatility in meeting the functional requirements of all types of modern keyboards and mice. It features 2-channel stereo sound for full sound functionality. Its advanced audio & microphone switching function also gives you an uninterrupted multimedia experience during KVM operation (e.g. you can listen to music from one PC while operating another). Multi-platform support for PC and Mac is also available.

2-way KVM switch
Two computers on one console (consisting of 1x DisplayPort monitor, 1x HDMI monitor, 1x USB mouse and 1x USB keyboard)
Two additional USB 3.0 (USB 3.2 Gen 1) Type-A connectors for peripherals
Audio support for microphone and speakers
Maximum video resolution: 3840x2160 per monitor

Scope of delivery:
1x InLine KVM Desktop Switch, Dual Monitor, DisplayPort + HDMI

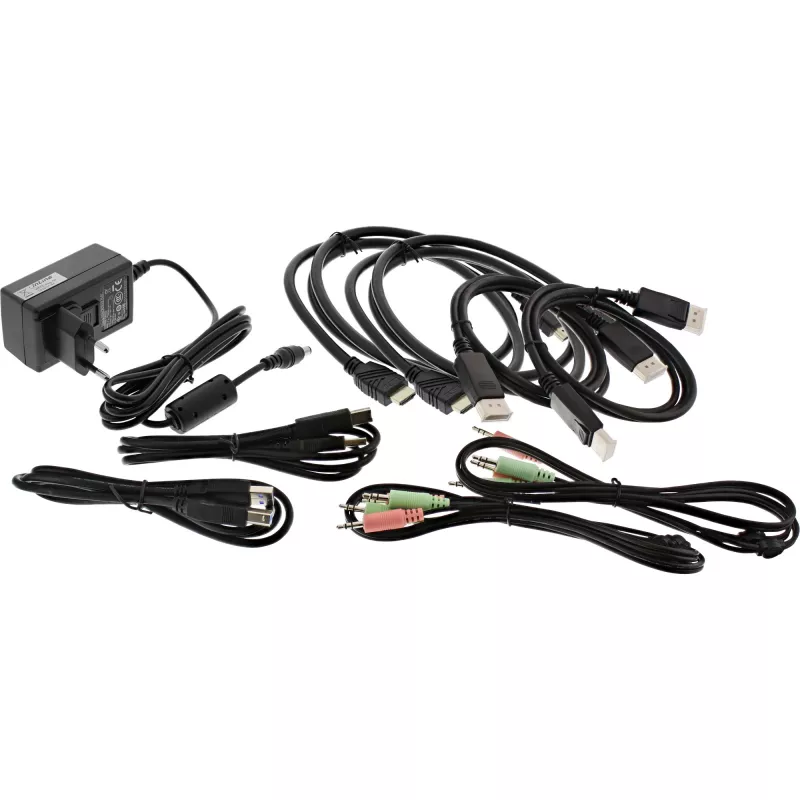

2x KVM cable set
1x plug power supply DC 12V
1x instruction manual

Please note:
The InLine KVM Switches are designed for office and home office applications as well as for monitoring and controlling multiple computers from one workstation. However, the KVM Switches are not suitable for gaming accessories such as mice and keyboards with programmable special keys, nor are gaming monitors with high frequencies of 120 Hz or more supported. The hot key function for the keyboard only works on the designated console USB port, connected via the USB hub ports, hot key control is not possible.

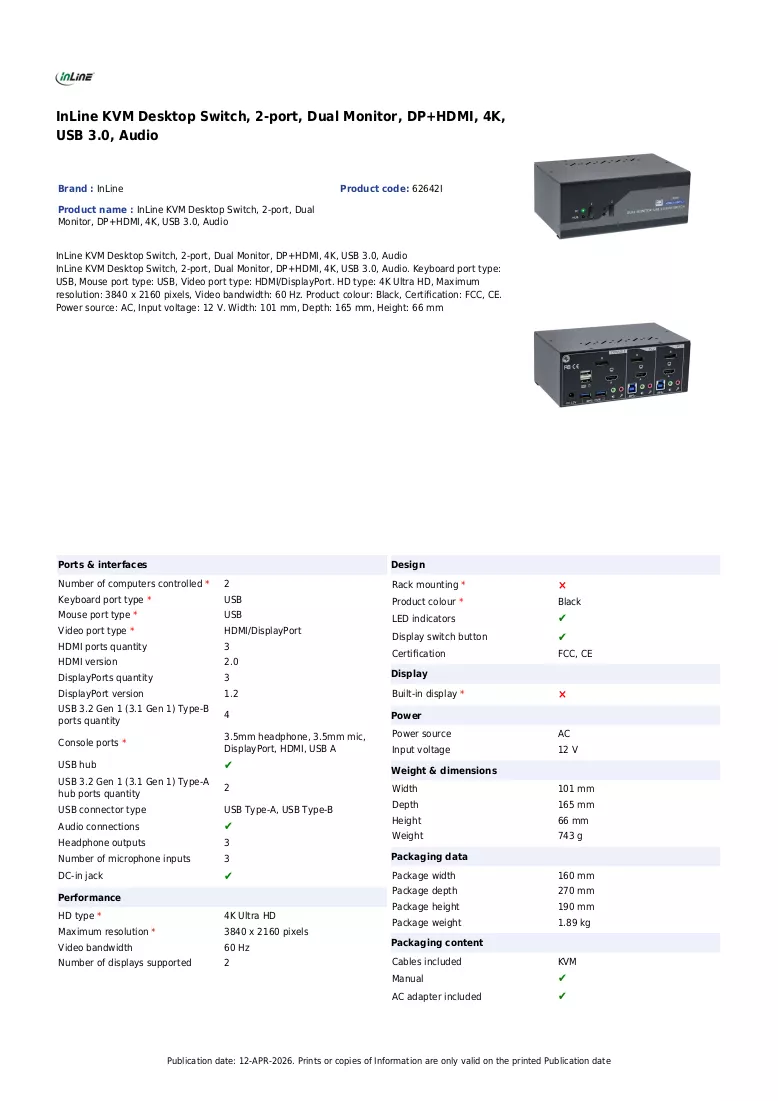

InLine KVM Desktop Switch, 2-port, Dual Monitor, DP+HDMI, 4K, USB 3.0, Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Certification: FCC, CE. Power source: AC, Input voltage: 12 V. Width: 101 mm, Depth: 165 mm, Height: 66 mm

How to use

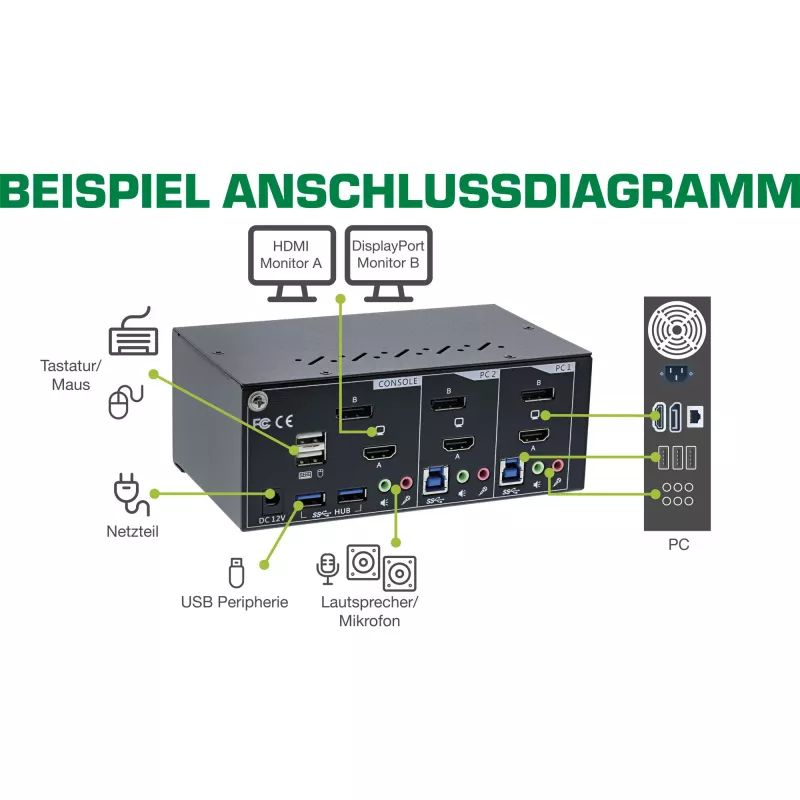

Connect each computer to the KVM switch using the supplied KVM cable sets: one computer to the DisplayPort and HDMI inputs as required, and the other computer similarly. Attach the console monitors to the DisplayPort and HDMI console outputs, and connect the USB keyboard and USB mouse to the console USB ports. Plug in the DC 12V power supply. Switch between computers using the device controls or the supported hotkey sequence from the designated console USB port.

Recommendations

Use the InLine KVM Desktop Switch in office or home office environments and for monitoring or controlling multiple computers from a single workstation. Do not use with gaming keyboards or mice that rely on programmable special keys, and avoid gaming monitors with refresh rates of 120 Hz or higher, as these are not supported. Note that the keyboard hotkey function operates only from the designated console USB port; hotkey control via hub ports is not available.
