InLine διακόπτης KVM, 2 θυρών, USB-C+DP σε DisplayPort, 4K, ήχος, ενσωμ. καλώδιο

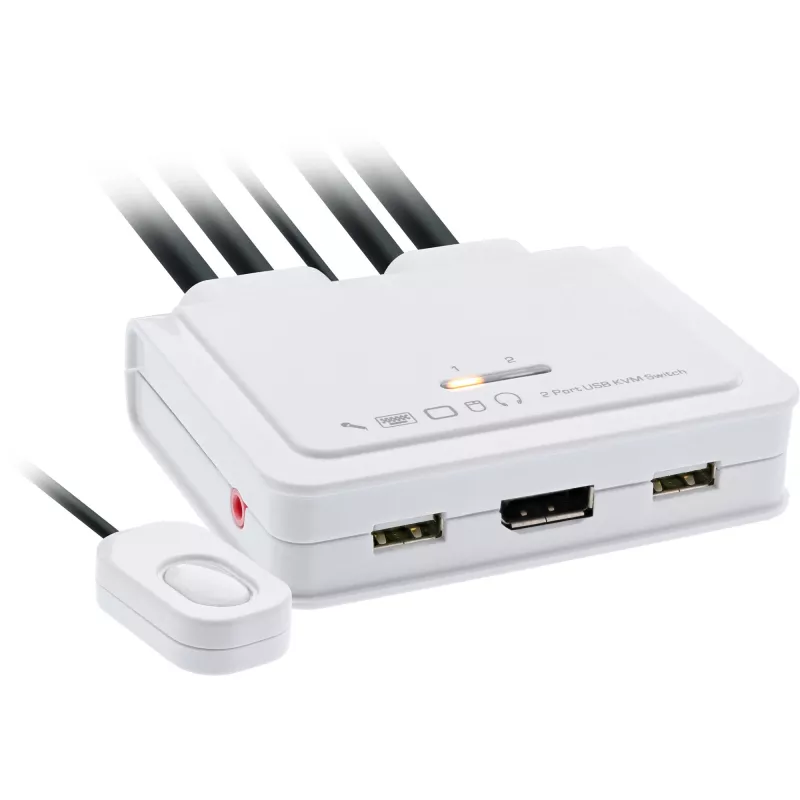

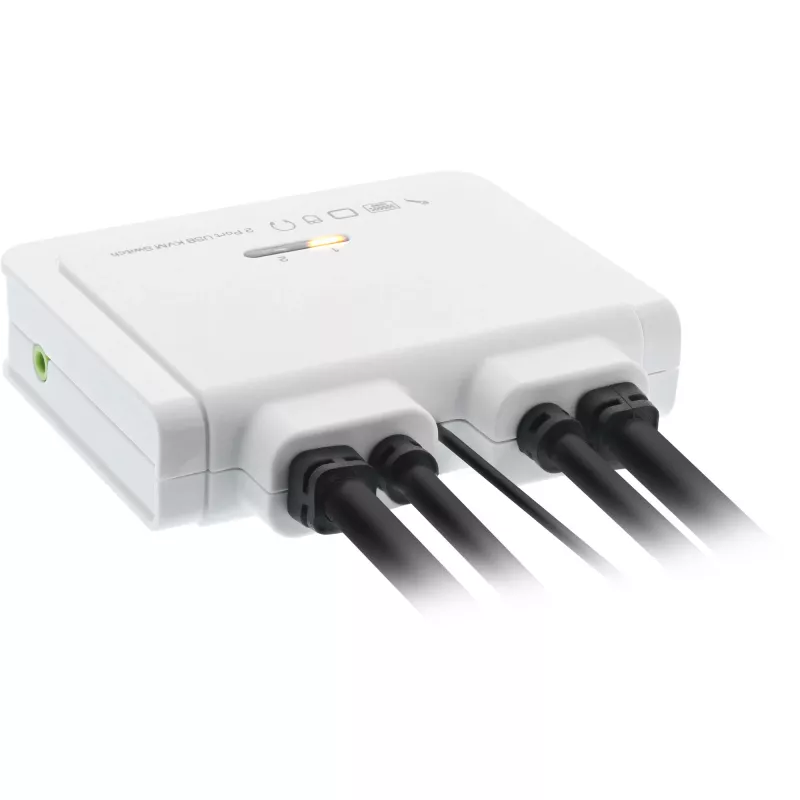

The InLine 63615I Cable KVM Switch enables control of two computers from a single console: one with a DisplayPort 1.2 interface and one with a USB Type-C interface. The unit includes two fixed KVM cable sets (1× DP/USB/Audio/Mic and 1× USB Type-C/Audio/Mic combo cable) and a wired quick-switch button on the console for immediate switching between connected computers. It supports 4K Ultra HD (3840×2160) at 60 Hz when using compatible sources and monitors. Note that USB-C connected computers must support DisplayPort Alternate Mode for video output.

Advantages

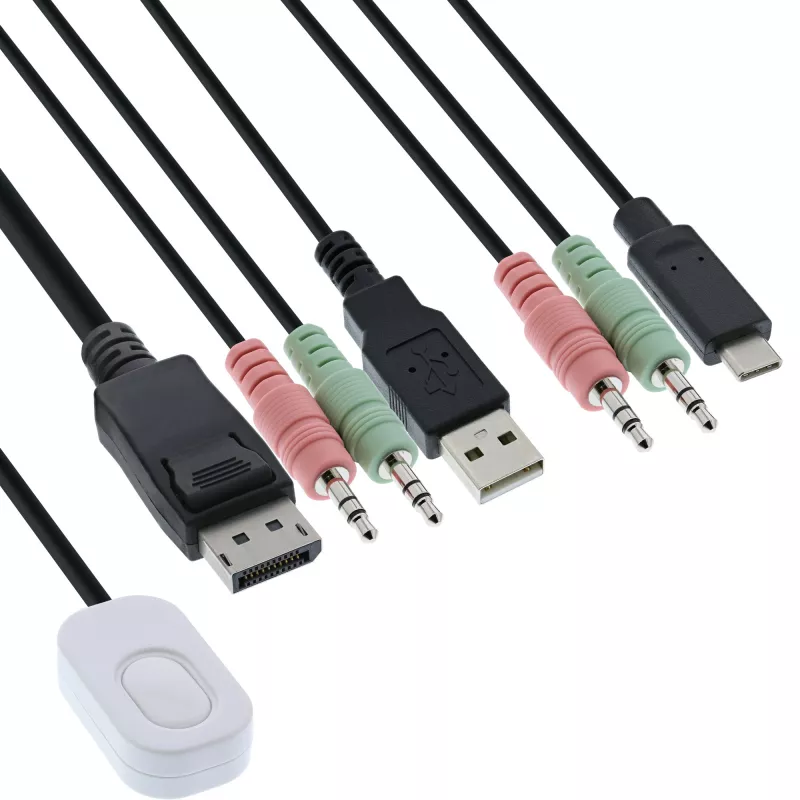

The integrated 1.5 m cables simplify installation and keep the workspace tidy while the remote quick-switch cable (1.5 m) provides convenient access to switching. Two USB 2.0 hub ports on the console provide full driver support for advanced keyboard and mouse functions and also allow connection of other USB 2.0 devices such as storage drives. The switch supports high-resolution DisplayPort video and common audio/microphone connections, enabling a single-console setup for office and home office use.

Suitable for

• Office or home office workstations that require control of two computers
• Monitoring and controlling multiple systems from a single console
• Setups combining a DisplayPort-equipped PC and a USB-C laptop (with DP Alt Mode)

Key specifications

• Brand: InLine
• Model: 63615I
• Controlled computers: 2
• Video interface: DisplayPort 1.2 (supports up to 3840×2160 @ 60 Hz)
• Other interfaces: USB Type-C (requires DP Alt Mode), USB 2.0 keyboard/mouse hub
• Cable length: integrated 1.5 m KVM cables; remote switch cable 1.5 m
• Product colour: White

How to use

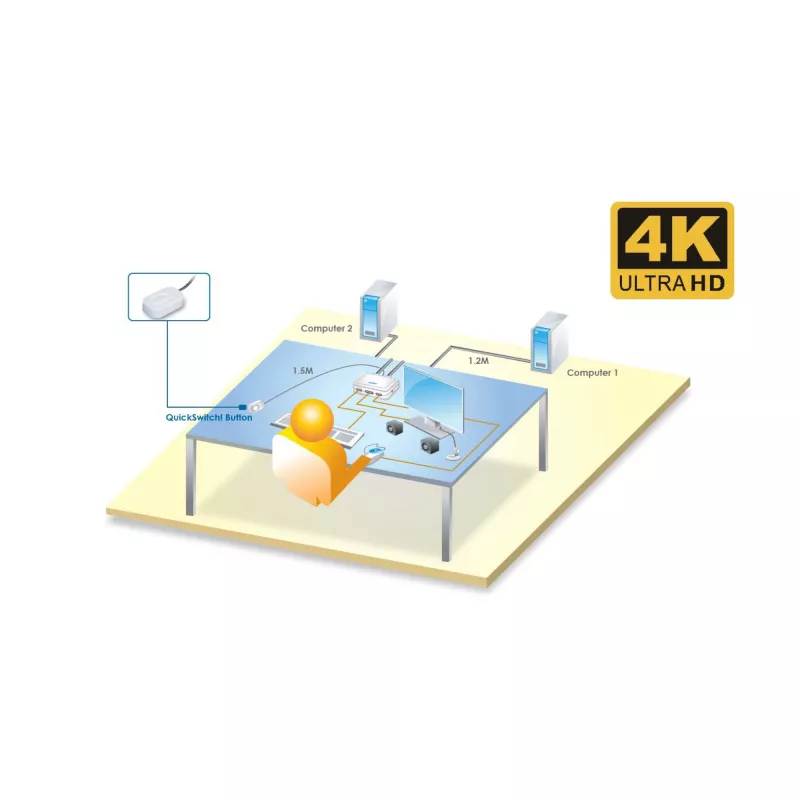

Connect the DP/USB/Audio/Mic cable set to the DisplayPort-equipped computer and the USB Type-C/Audio/Mic combo cable to the USB-C computer (ensure the USB-C device supports DisplayPort Alternate Mode). Connect your keyboard, mouse and monitor to the console ports on the KVM switch. Use the wired quick-switch button on the console to toggle control between the two connected systems. If using advanced keyboard or mouse features, connect those devices via the designated console USB hub ports to ensure full driver support. For connecting USB storage or other USB 2.0 peripherals, plug them into the available USB hub ports.

Recommendations

Designed for office and home office environments and for monitoring tasks. This KVM switch is not suitable for gaming setups requiring programmable special keys or for monitors operating at 120 Hz or higher. Hotkey switching from keyboards only works when the keyboard is connected to the designated console USB port; hotkey control is not available through the hub ports.
