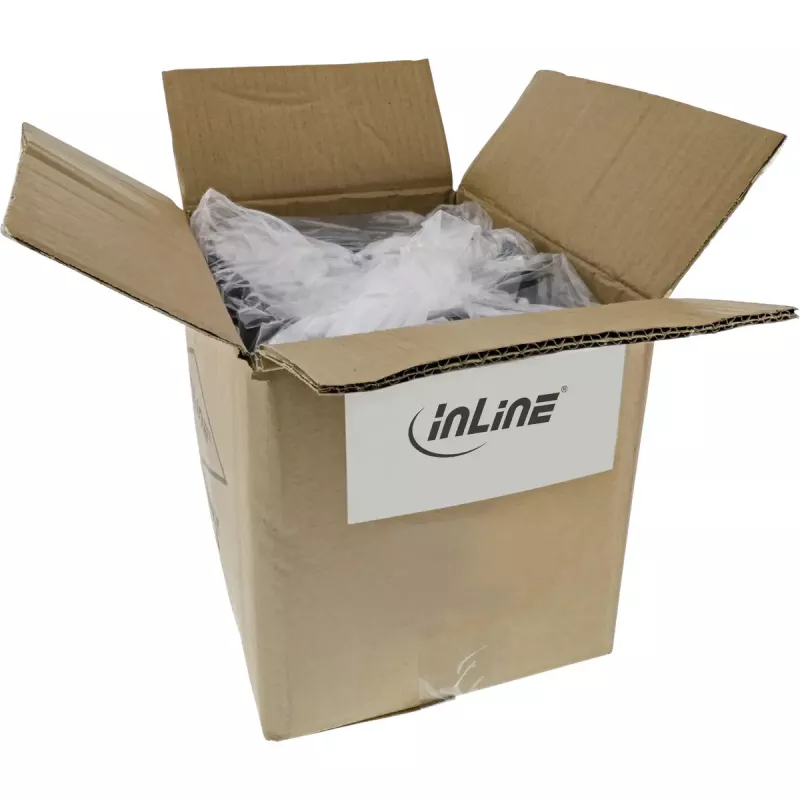

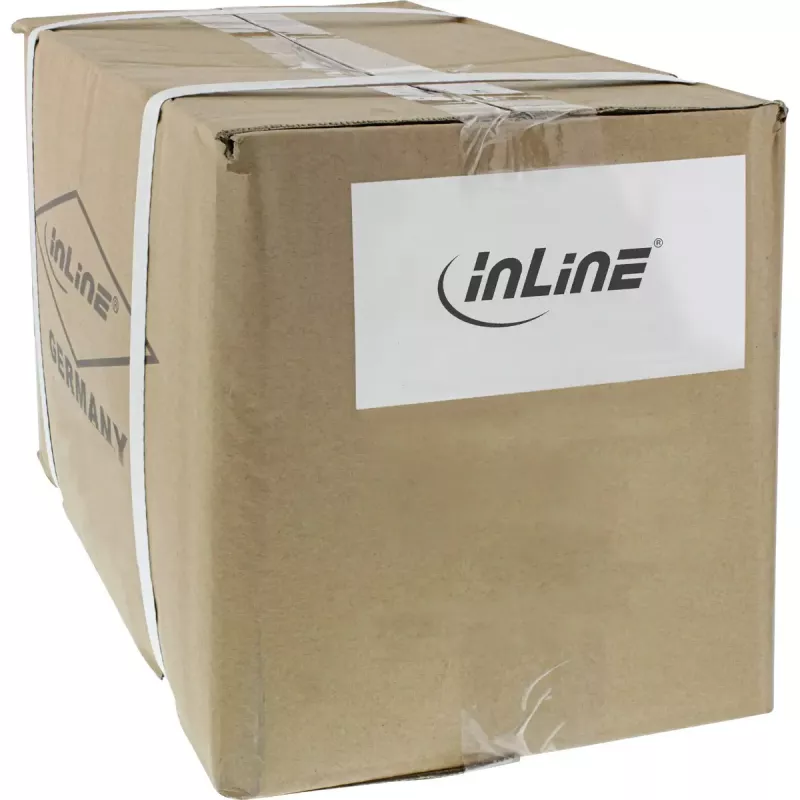

InLine B-76802B Cat6A S/FTP (PiMF) καλώδιο patch χωρίς αλογόνα, 2 m, μπλε, συσκευασία 40 τεμ.

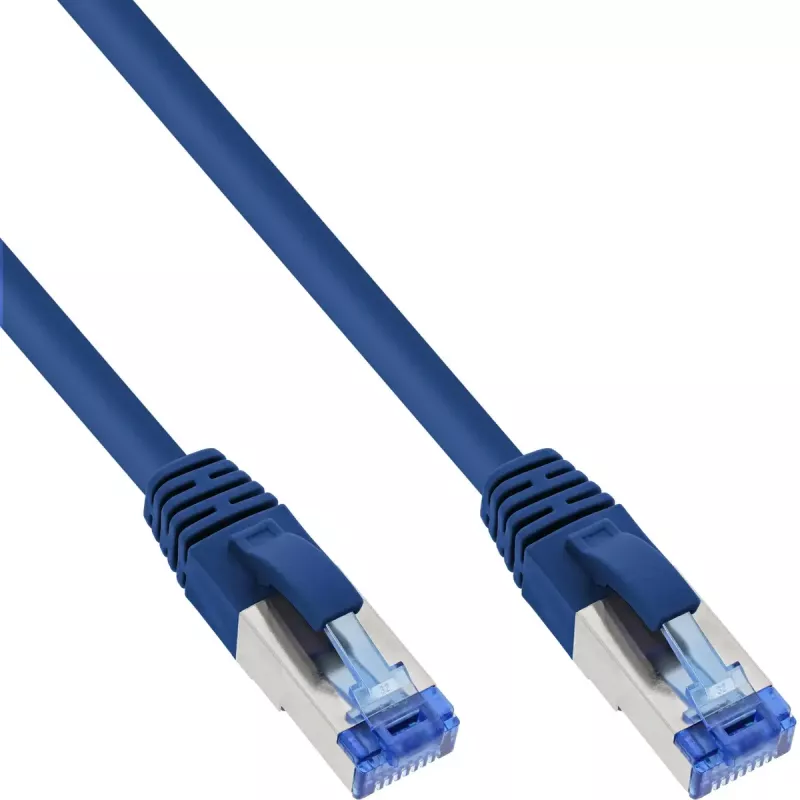

The InLine B-76802B is a Cat6A S/FTP (PiMF) halogen-free patch cable supplied in a 40-pack. It features a blue LSZH jacket, RJ45 connectors with 50µ" gold-plated contacts, and is suitable for Gigabit and 10 Gigabit applications up to 500 MHz.

Key features

• Cat6A S/FTP (PiMF) construction
• Halogen-free LSZH jacket
• RJ45 connectors with 50µ" gold-plated contacts
• Blue-coloured connector for differentiation
• Suitable for Gigabit and 10 Gigabit applications
• Up to 500 MHz
• Includes enclosed test report
• PoE/PoE+/PoE++ support

Specifications

• Brand: InLine
• MPN: B-76802B
• Product colour: Blue
• Length: 2 m
• Shielding: S/FTP (PiMF)
• Cable construction: 4x2xAWG26/7, solid copper wire
• Overall braided shield with pair-wise foil shielding
• Jacket: Halogen-free, LSZH, compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
• Connector type: RJ45 plug straight on both sides
• Assignment: 1:1
• Conductor material: CU (copper)
• Outer diameter: 6.2 mm
• Diameter: AWG 26
• Design: Round cable
• Data transmission rate: 10 Gb/s
• Max. supported data transfer rate: 10 Gb/s
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90 W
• Operation temperature: -10 to +60 °C
• Storage temperature: -20 to +70 °C
• Assignment according to TIA/EIA 568B2.1
• Country of origin: Taiwan
