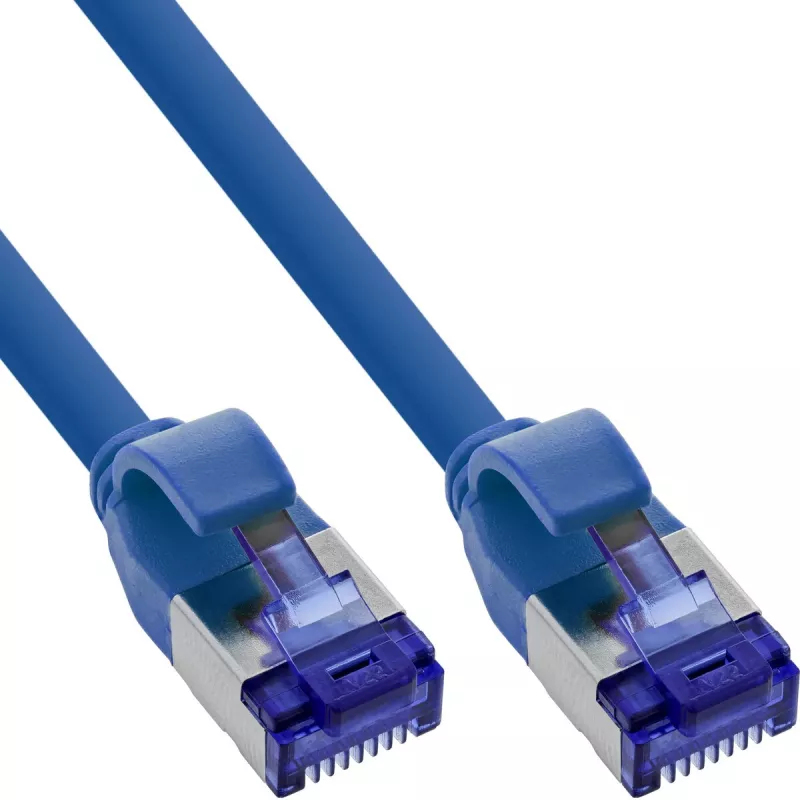

InLine 74900B Καλώδιο δικτύου μπλε 10 m Cat6a S/FTP (S-STP)

InLine 74900B networking cable Blue 10 m Cat6a S/FTP (S-STP)

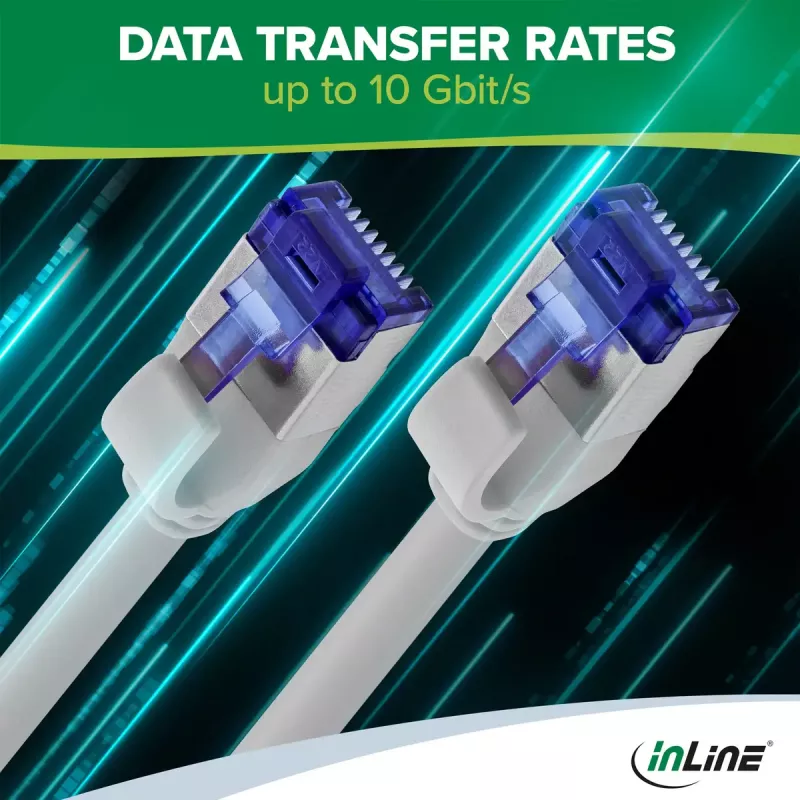

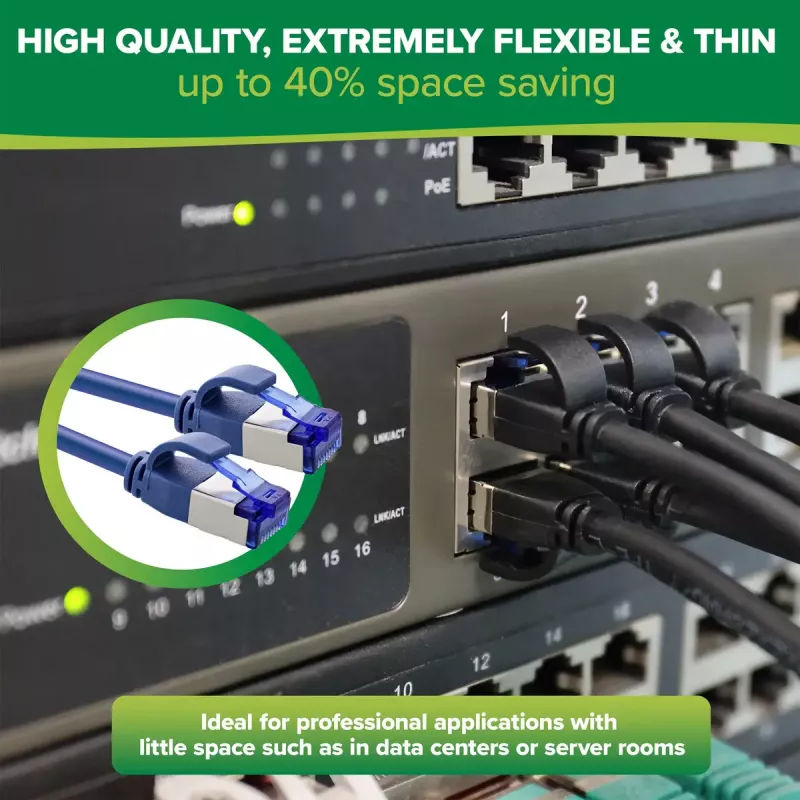

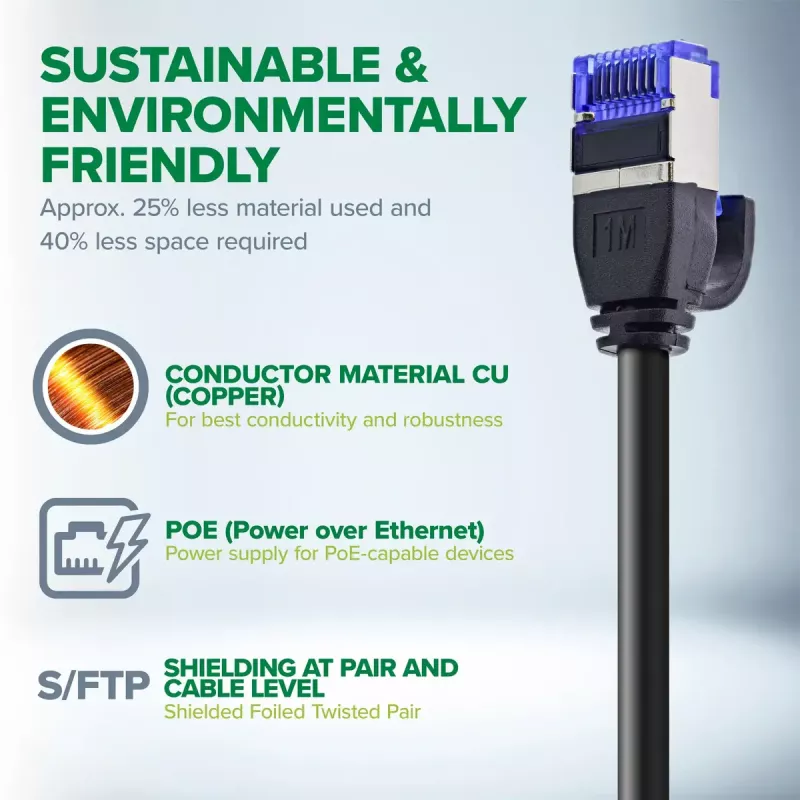

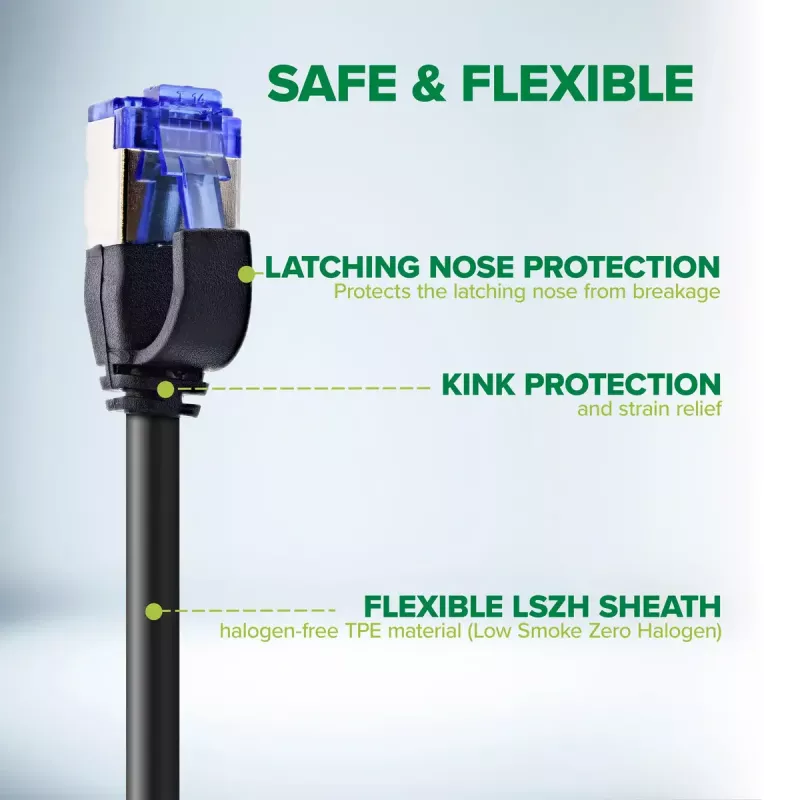

InLine 74900B networking cable in blue, 10 m, Cat6a S/FTP (S-STP). From the InLine Slim Cat.6A S/FTP patch cable range, its space-saving AWG28 design needs around 40% less space than conventional AWG26 cables, increasing port density and airflow in cabinets and server rooms. It provides full Cat.6A performance up to 10 Gbit/s and 500 MHz over lengths up to 30 m and supports 4PPoE with up to 87 watts. The pure copper conductors minimise signal loss while the S/FTP double shielding guards against electromagnetic interference. The LSZH TPE jacket is halogen-free, flame-retardant and produces minimal smoke. Additional specifications: pure copper conductors, S/FTP construction, AWG28 wire gauge, operating temperature -20 to +75 °C, outer diameter 4.5 mm, T568B 1:1 wiring, RJ-45 connectors with gold-plated contacts, 10000 Mbit/s data rate. To use, connect the RJ-45 plugs to the matching ports following T568B for a 1:1 pinout, route the slim cable to improve density and airflow, and confirm PoE class and power budget support before enabling power.

Specifications

• Depth: 10000 mm
• Height: 120 mm
• Operating temperature (T-T): -20 - 75 °C
• Package depth: 260 mm
• Package height: 50 mm
• Package weight: 247 g
• Package width: 200 mm
• Product colour: Blue
• Storage temperature (T-T): -20 - 75 °C
• Weight: 235 g
• Width: 15 mm
• Compliance certificates: CE, REACH, RoHS

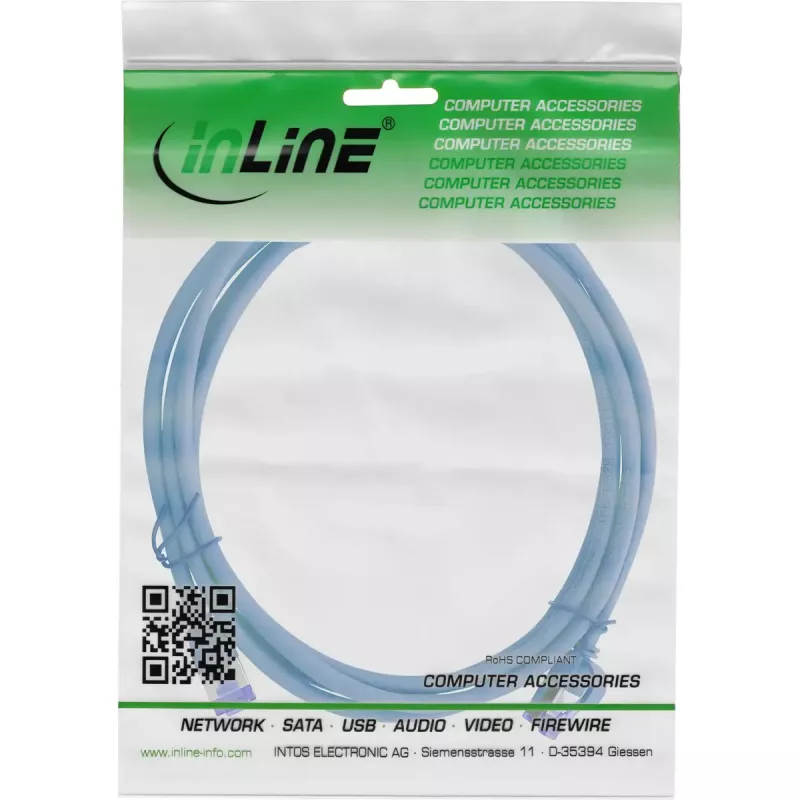

• Package type: Polybag
• Sustainability compliance: Yes
• Quantity per pack: 1 pc(s)
• Package volume: 2600 cm³
• Data transfer rate: 10000 Mbit/s
• Cable length: 10 m
• Connector contacts plating: Gold
• Power over Ethernet (PoE): Yes

Genuine Inline product — MPN: 74900B · EAN: 4043718335305.
