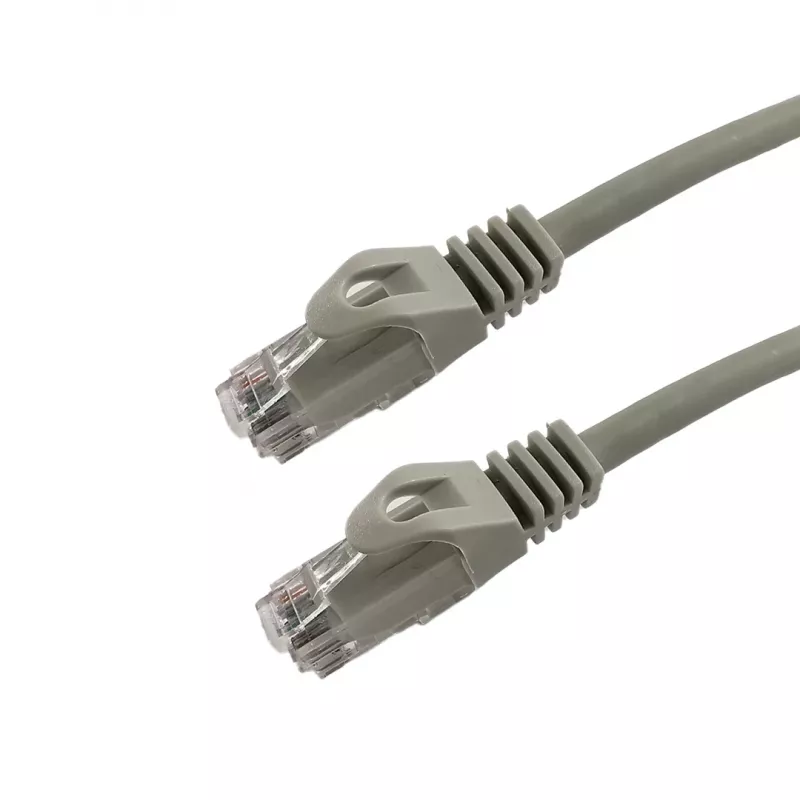

Grafenthal Patchkabel CAT6 S/FTP CU LSZH 3,00m γκρι

The Grafenthal Patch Cable CAT6 S/FTP CU LSZH 3.00m Grey is a high-performance Ethernet cable designed for reliable and fast network connections. With its S/FTP shielding and pure copper conductors, it ensures excellent signal integrity and minimal interference, making it ideal for demanding LAN environments.

Advantages

This patch cable offers superior shielding against electromagnetic interference (EMI) and crosstalk, thanks to its S/FTP (Screened/Foiled Twisted Pair) construction. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic smoke and corrosive gases in case of fire. Gold-plated RJ45 connectors provide corrosion resistance and reliable contact, supporting data transfer rates up to 10 Gbps.

Suitable for

• Local Area Networks (LAN) in offices, data centers, and home networks
• Connecting computers, switches, routers, and other network devices
• 10GBASE-T applications requiring high bandwidth and low latency
• Installations where fire safety and low smoke emission are critical

Key specifications

• Cable Type: Patch Cable
• Cable Category: CAT6
• Shielding Type: S/FTP
• Conductor Material: Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 3.00 m
• Colour: Grey
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Conductor Gauge: AWG 26/7
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Wiring Standard: TIA/EIA-568B
• Compliance: RoHS, CE, ISO/IEC 11801, EN 50173
• Outer Diameter: Approx. 6.0 mm
• Operating Temperature: -20°C to 60°C
• Halogen Free: Yes

Recommendations

For optimal performance, use this cable with CAT6 or higher compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. Suitable for both horizontal and patch panel connections.
