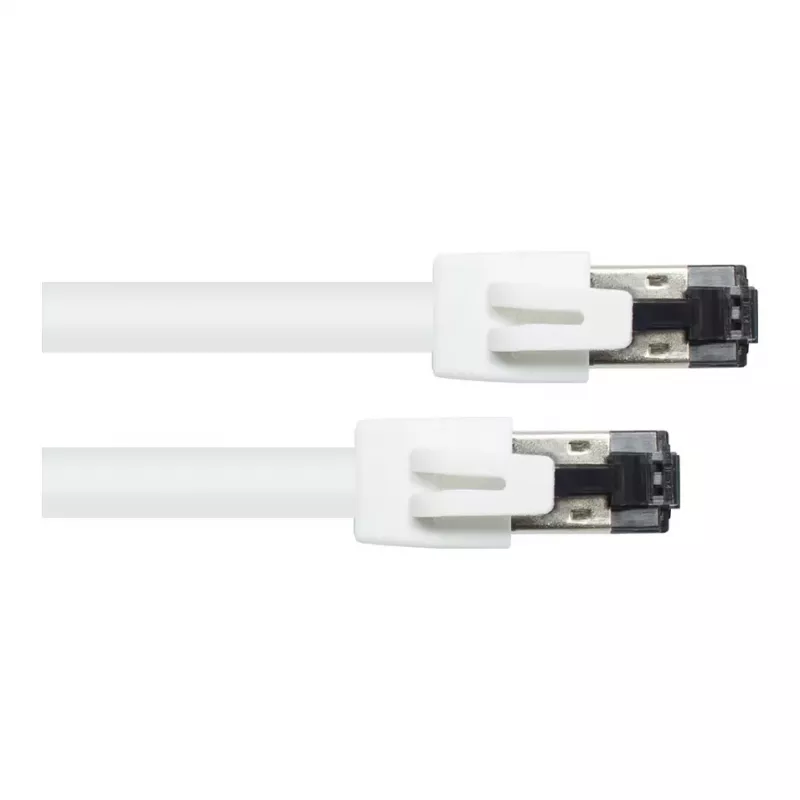

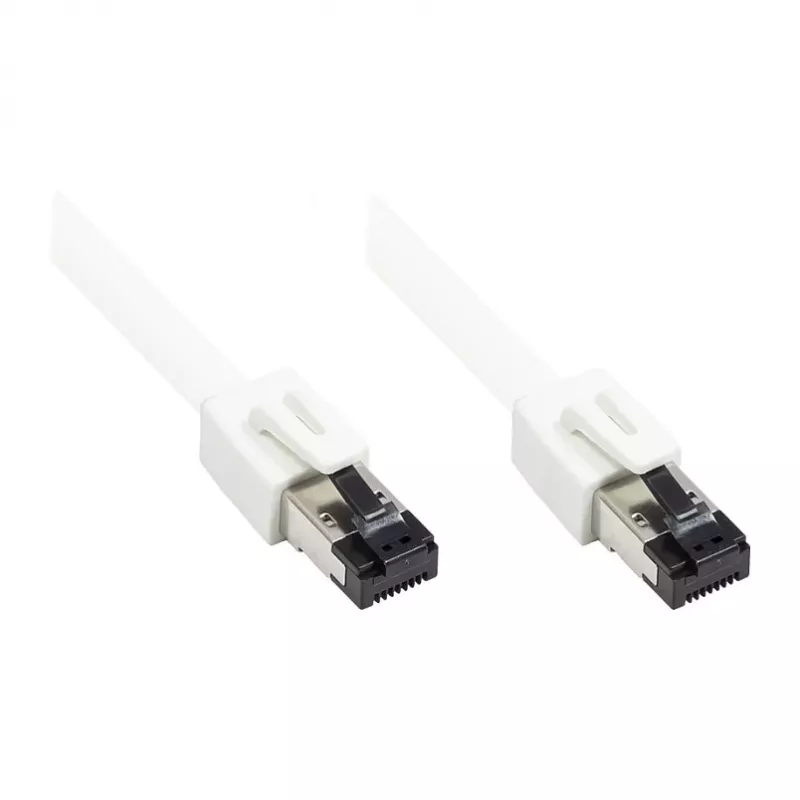

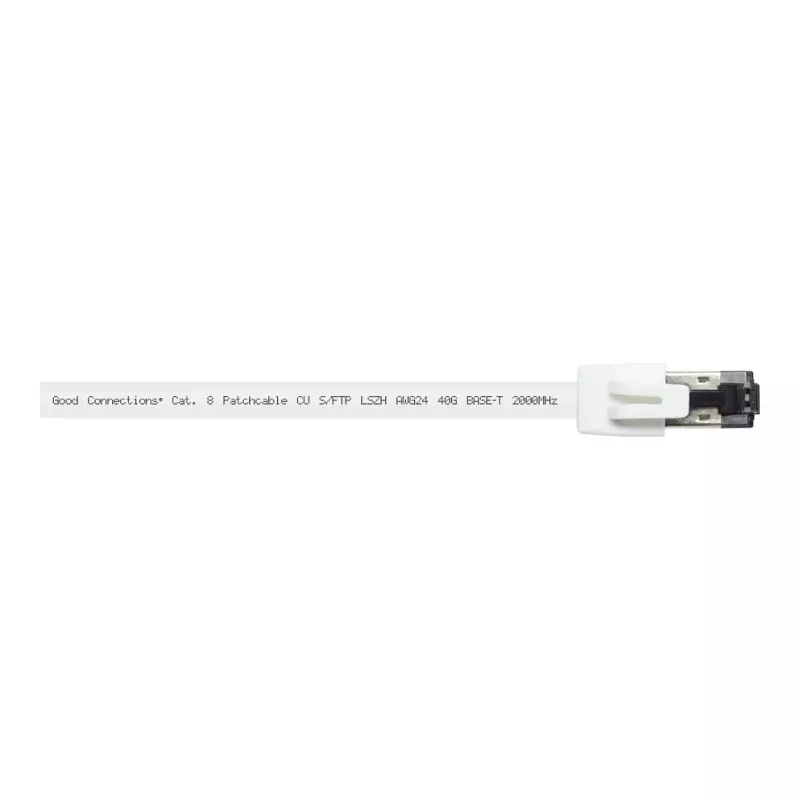

GoodConnections RNS® Καλώδιο Patch Cat.8.1 S/FTP, PiMF, LSZH, 2000MHz, 40Gbit/s, Λευκό, 0,5m

The GoodConnections RNS® Cat.8.1 S/FTP patch cable delivers exceptional performance for high-speed data center and server room applications. With a bandwidth of 2000 MHz and data rate of 40 Gbit/s, it supports the latest 40GBase-T networks while remaining backward compatible with Cat.6a, Cat.6, and Cat.5e. The S/FTP shielding (overall braid and foil per pair) with PiMF (Pairs in Metal Foil) provides excellent protection against electromagnetic interference, ensuring reliable data transmission. The LSZH (Low Smoke Zero Halogen) jacket makes it safe for use in enclosed spaces, reducing toxic fumes in case of fire. This 0.5-meter white cable is terminated with RJ45 male connectors and is compliant with TIA/EIA 568B wiring standard. It also supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt), making it versatile for powering devices over the network.

Advantages

• Supports 40 Gbit/s data rate over 2000 MHz bandwidth
• S/FTP shielding with PiMF for superior EMI protection
• LSZH jacket for safety in sensitive environments
• Backward compatible with existing Cat.6a/6/5e networks
• PoE support (PoE, PoE+, 4PPoE) for flexible device powering

Suitable for

• Data centers and server rooms requiring high-speed connections
• High-performance computing and storage networks
• Enterprise LAN backbone and switch-to-switch links
• Applications demanding low latency and high bandwidth

Key specifications

• Cable standard: Cat.8.1
• Shielding: S/FTP (overall braid + foil per pair)
• Pair shielding: PiMF (Pairs in Metal Foil)
• Jacket material: LSZH (halogen-free)
• Bandwidth: 2000 MHz
• Data rate: 40 Gbit/s
• Length: 0.5 m
• Colour: White
• Connectors: RJ45 male to RJ45 male
• Conductor: Copper, 26 AWG
• Impedance: 100 Ohm
• Wiring standard: TIA/EIA 568B
• PoE support: Yes (PoE, PoE+, 4PPoE)

Recommendations

For optimal performance in high-speed networks, pair this cable with compatible Cat.8.1 switches and network cards. Ensure proper cable management to maintain signal integrity.
