Fischer SX Plus ούπα 10 x 50 mm, 5 τεμ. 567828

Securing heavy fixtures in hollow or solid building materials often fails when the plug cannot expand reliably or slips into the drill hole. The Fischer SX Plus expansion plug addresses this with a four-way expansion mechanism and an anti-slip collar, providing a firm hold in concrete, brick, and even plasterboard.

Who is it for

This plug is for professionals and DIYers who need a dependable fixing for medium to heavy loads in a wide range of base materials, from solid concrete to hollow blocks and gypsum boards. It works with wood screws, chipboard screws, and metric screws from 6 to 8 mm diameter.

Main features

• Four-way expansion distributes force evenly for high holding power.
• Rimmed collar prevents the plug from slipping into the drill hole during installation.
• Made of high-quality nylon, resistant to temperatures from -40°C to +80°C.
• Suitable for pre-positioned installation; no special tools required.
• Pack of 5 plugs.

Specifications

• Plug type: Expansion plug
• Material: High-quality nylon
• Drill hole diameter: 10 mm
• Plug length: 50 mm
• Minimum drill hole depth: 60 mm
• Minimum anchorage depth: 50 mm
• Recommended screw diameter: 6.0 - 8.0 mm
• Compatible screw types: Wood screws, chipboard screws, metric screws, threaded rods
• Installation type: Pre-positioned installation
• Suitable base materials: Concrete, solid brick, solid sand-lime brick, aerated concrete, vertically perforated brick, hollow block, hollow floor slabs, gypsum plasterboard, gypsum fibreboards, natural stone, chipboard
• Temperature resistance: -40°C to +80°C
• Quantity per pack: 5 pieces

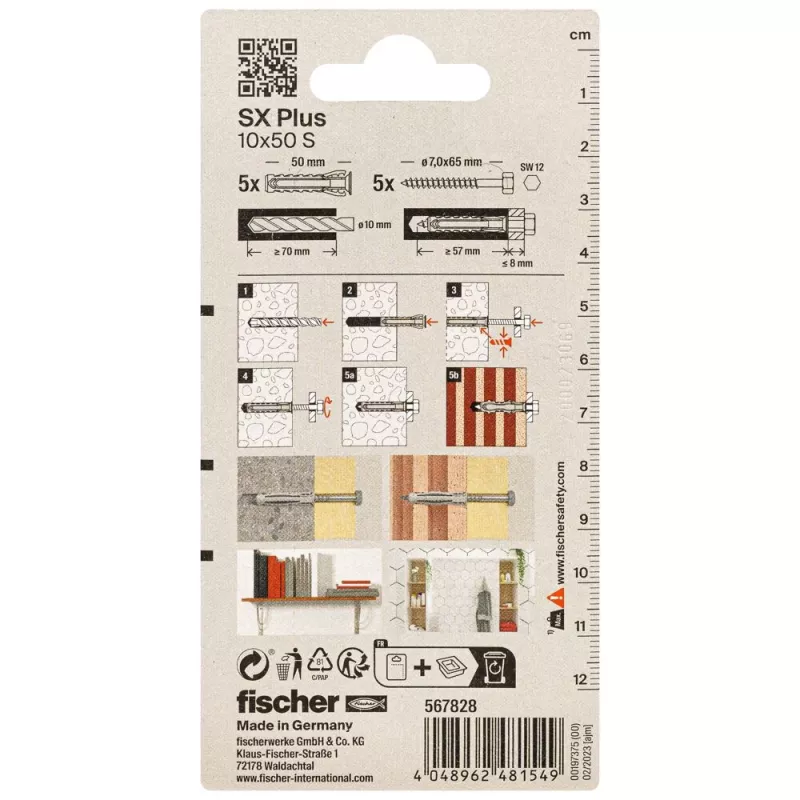

Tips

Drill the hole to the recommended depth and clean out dust before inserting the plug. Use a screw length that accounts for the fixture thickness plus the plug length for a secure fit.
