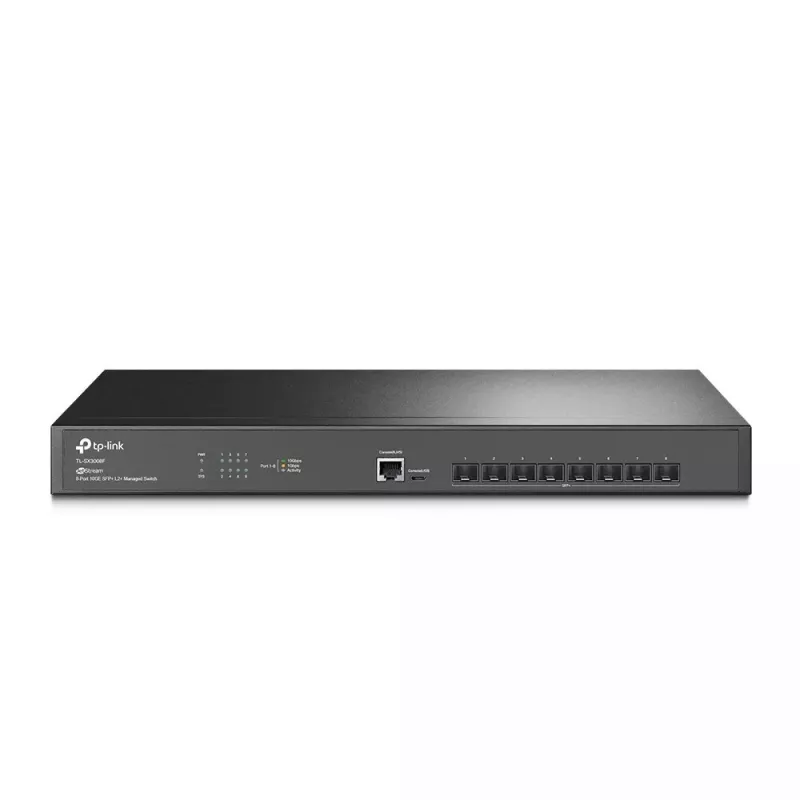

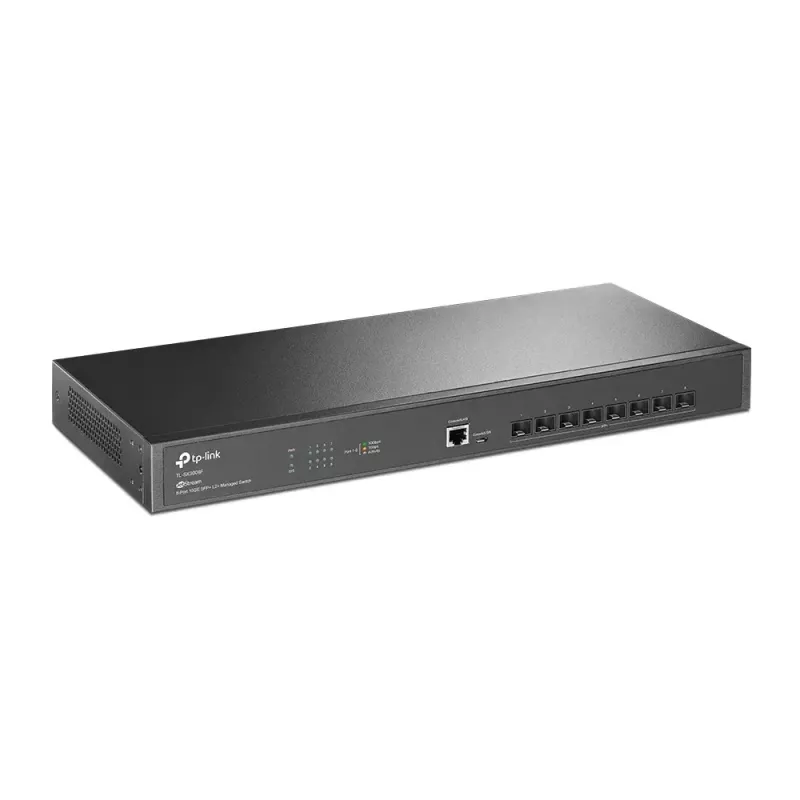

TP-Link Omada 8-Port 10GE SFP+ L2+ Managed Switch

The TP-Link JetStream TL-SX3008F is an 8-port 10GE SFP+ L2+ managed switch designed for full-fiber networks. With eight 10 Gbps SFP+ fiber ports and a 160 Gbps switching capacity, it provides high-throughput connectivity for small, medium and large business environments. The switch supports Rack mounting, includes RJ-45 and micro-USB console ports and a DC-in jack for power, and implements a MAC address table of 32,000 entries for efficient forwarding.

Advantages

The JetStream TL-SX3008F offers full 10G fiber connectivity across all ports, centralized cloud management via Omada SDN, and an extensive set of L2+ and L3 features for scalable network design. It delivers enterprise-grade security functions such as IP-MAC-Port-VID binding, ACLs (L2–L4), DHCP snooping and 802.1X authentication, together with ISP-focused capabilities like QinQ, sFlow and 802.3ah OAM. Advanced QoS, IGMP snooping and static routing add traffic control and efficient multicast handling.

Suitable for

• Data centers and server aggregation
• Enterprise LANs and campus networks
• Service providers and ISPs
• Office environments requiring high-speed uplinks
• Hospitality, education and retail deployments with mixed wired/wireless infrastructure

Key specifications

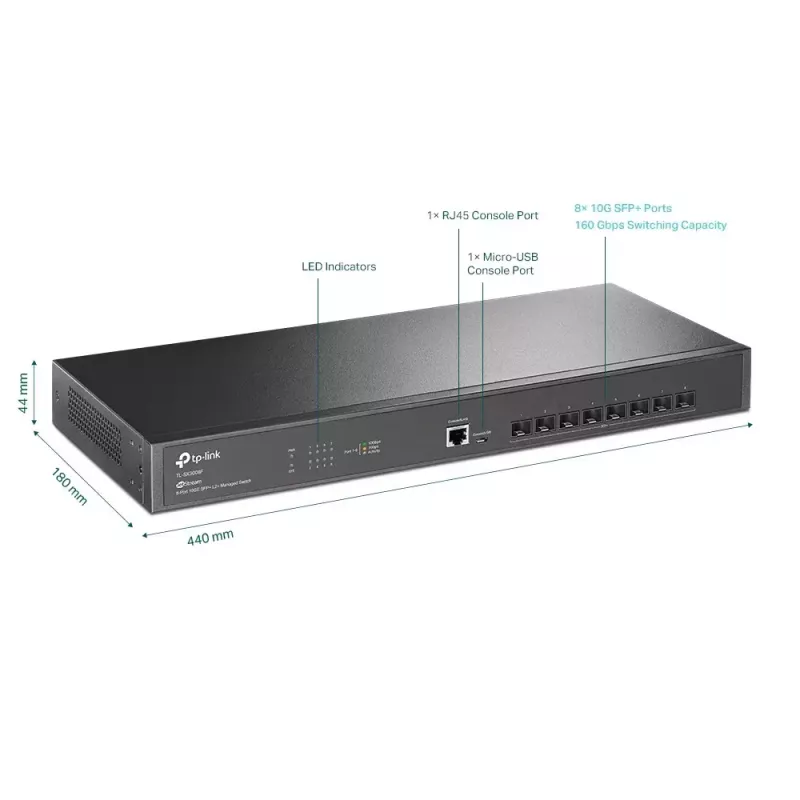

• Ports: 8 × 10G SFP+ (fiber)
• Switching capacity: 160 Gbps
• MAC address table: 32,000 entries
• Managed switch with L2+ / L3 features (802.1Q, STP/RSTP/MSTP, LACP, static routing)
• Console ports: RJ-45 and micro-USB; power: DC-in jack
• Standards: IEEE 802.1D/802.1Q/802.1s/802.1w/802.3ad/802.3x
• Colour: Black

How to use

Install the TL-SX3008F in a standard 19-inch rack or place it on a flat surface. Connect fiber SFP+ modules and patch cables to the 10G SFP+ ports for uplinks and server connections. Use the RJ-45 or micro-USB console port for initial configuration, or adopt Omada Cloud SDN for centralized management and provisioning. Configure VLANs, QoS, ACLs and routing according to your network design, and enable security features such as DHCP snooping and 802.1X to control access.

Recommendations

For optimal performance, use certified 10G SFP+ transceivers and single-mode or multimode fiber that match your network design. Keep firmware up to date and monitor links using OAM/DLDP or sFlow for proactive troubleshooting. When deploying multicast services, enable IGMP snooping and appropriate throttling/filtering to limit unnecessary traffic.
