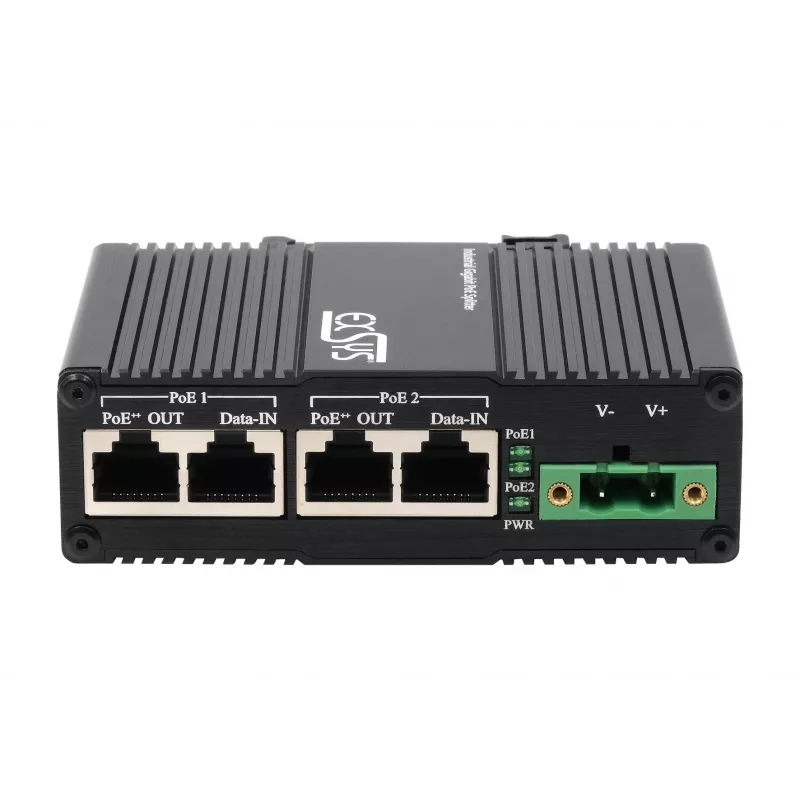

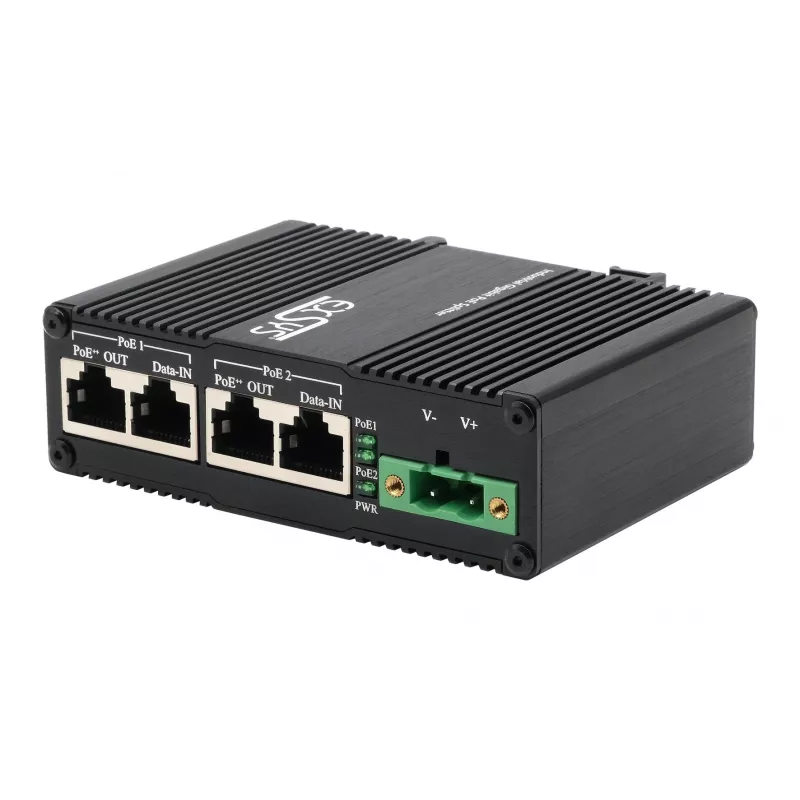

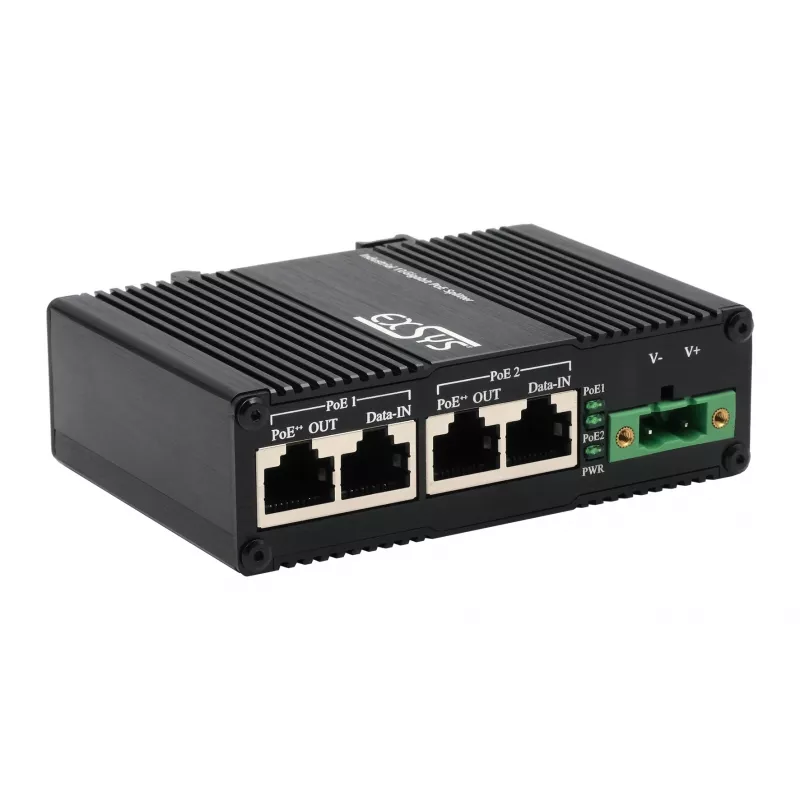

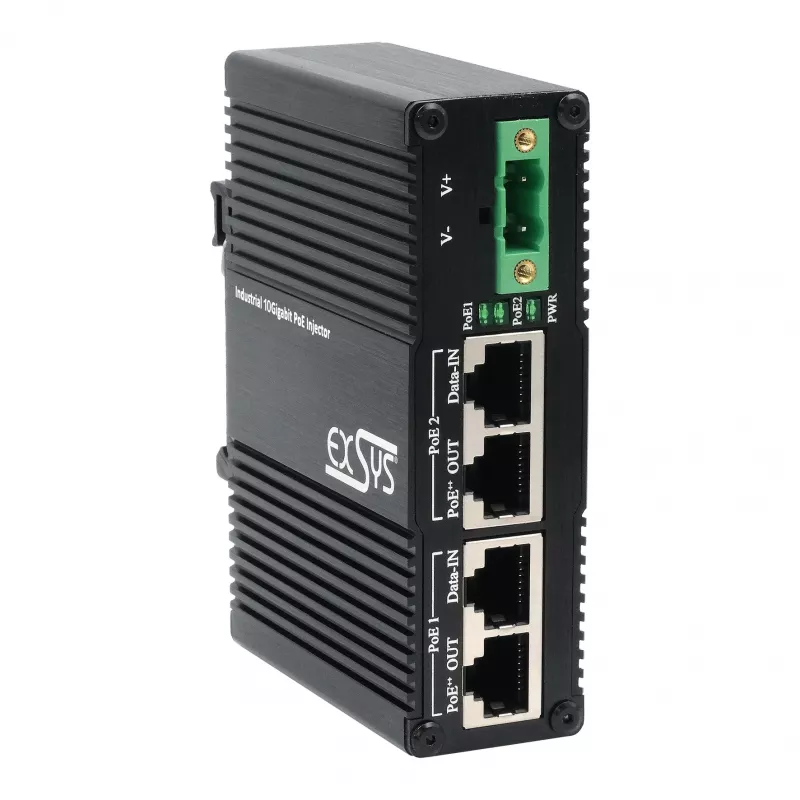

EXSYS 2-Port PoE++ 10 Gigabit Injector 90W, -40°C έως +80°C (EX-60350)

Deploy high-power PoE devices in harsh industrial environments with the EXSYS EX-60350 2-Port PoE++ Injector. This rugged unit delivers up to 90W of power over Ethernet to two devices simultaneously, supporting 10 Gigabit data speeds and operating reliably from -40°C to +80°C. Ideal for outdoor IP cameras, wireless access points, and industrial sensors in factories, warehouses, or remote installations.

Key specifications

• PoE Standard: IEEE 802.3bt Type 4 (PoE++)
• Number of PoE Ports: 2
• Data Ports: 2x 10 Gigabit Ethernet (Data In), 2x 10 Gigabit Ethernet (PoE Out)
• Max PoE Power Output: 90W (Total)
• Ethernet Data Rate: 10Gbps (10GBASE-T)
• Operating Temperature: -40°C to +80°C
• Input Voltage: DC 48-56V (Terminal Block)
• Mounting Options: DIN-Rail, Wall Mount
• Housing Material: Metal

Why choose it

With its wide temperature range and metal housing, this injector is built for reliability in extreme conditions. It provides high power and high speed without the need for a PoE switch, simplifying installation and reducing costs.

Ideal use cases

• Powering outdoor PTZ cameras with heaters
• Connecting high-bandwidth wireless access points
• Industrial automation and IoT gateways

Good to know

Requires an external DC 48-56V power supply (not included). Supports jumbo frames up to 16KB and includes over-current, over-voltage, and short-circuit protection.
