Equip βύσμα RJ45 χωρίς εργαλεία, Cat.5e

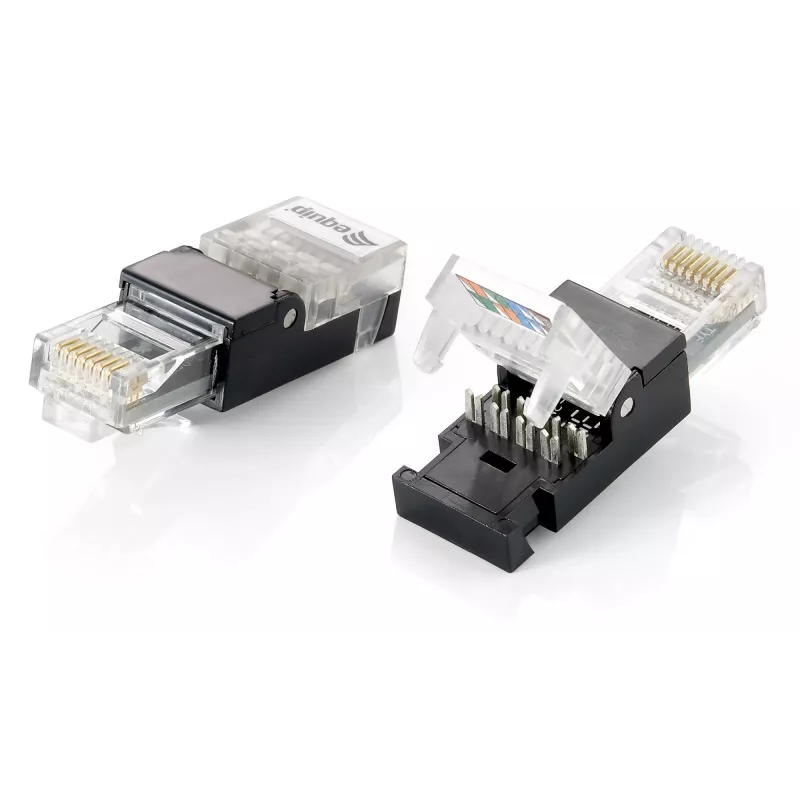

The equip Tool-less Modular Plug (Tool-free RJ45 Plug Equip 121163) is a Cat.5e RJ-45 plug designed for creating custom-length network cables without the need for tools. The plug body combines black and transparent high-impact polycarbonate to provide mechanical strength while allowing visual inspection of conductor alignment. Compact and lightweight, it is intended for reliable connectivity in networking applications and DIY cable assembly.

Advantages

The tool-free design enables installation without crimping tools, simplifying on-site cable termination and shortening assembly time. High-impact polycarbonate construction offers resistance to insertion and pulling stresses, and the transparent portion permits easy verification of wire order before final insertion. Small size and low weight make it convenient for handling and storage.

Suitable for

• Assembling Cat.5e network patch cables of custom length
• Field or on-site cable termination where tools are not available
• DIY networking projects and small office/home installations

Key specifications

• Model: Equip 121163
• Standard: Cat.5e, RJ-45 connector
• Body material: High-impact polycarbonate (black and transparent)
• Weight: 0.012 kg
• Dimensions (approx.): 14 mm width × 10 mm depth
• Manufacturer: EQUIP
• EAN: 4015867171141

How to use

Strip the cable jacket to the recommended length, arrange the conductors in the correct Cat.5e wiring order and insert them fully into the plug until they reach the end stop. Push the plug onto the conductors until the mechanism secures the wires; the transparent section allows you to confirm correct alignment before final seating. No crimping tool is required; ensure the plug is firmly engaged and test the cable after assembly.

Recommendations

Use this tool-free RJ45 plug with Cat.5e stranded or solid cable as specified by the installation; verify conductor order before final insertion and perform continuity/testing after assembly to confirm proper connectivity.
