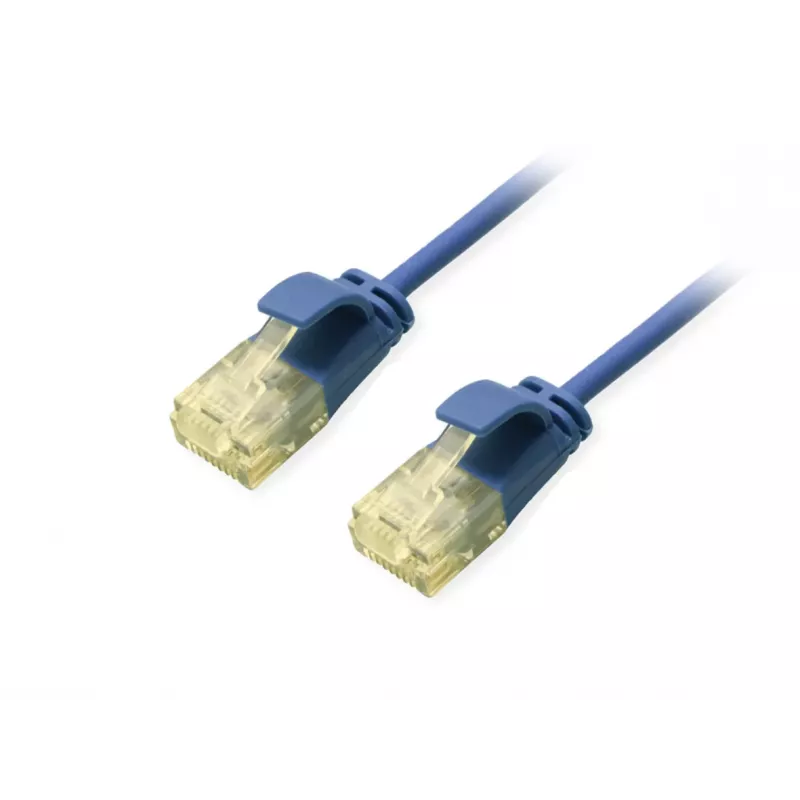

Equip Cat.6A U/UTP λεπτό καλώδιο patch 2,0 m μπλε 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 2.0m is a slim, high-performance network patch cable designed for data centers, enterprise networks and high-density installations. With a reduced diameter (32 AWG) and LSZH jacket, this 2.0 m blue cable supports 10 Gigabit Ethernet and frequencies up to 500 MHz while allowing improved airflow and neater cable management in crowded racks or patch panels.

Advantages

The unshielded twisted pair (U/UTP) construction delivers reliable data transmission in low to moderate EMI environments while minimizing crosstalk and signal loss. Stranded bare copper conductors and molded RJ-45 boots with strain relief provide flexibility and durability for frequent reconfigurations. The cable is RoHS compliant and meets ISO/IEC 11801 and EN 50173 standards.

Suitable for

• 10 Gigabit Ethernet connections
• Patch panels and high-density rack cabling
• PoE and PoE+ powered devices
• Office networks, server rooms and data centers
• Tight routing paths and crowded cable channels

Key specifications

• Length: 2 m
• Conductor: stranded bare copper, 32 AWG
• Cabling: Cat.6A U/UTP (unshielded)
• Bandwidth: up to 500 MHz
• Data rate: up to 10 Gbit/s (10000 Mbit/s)

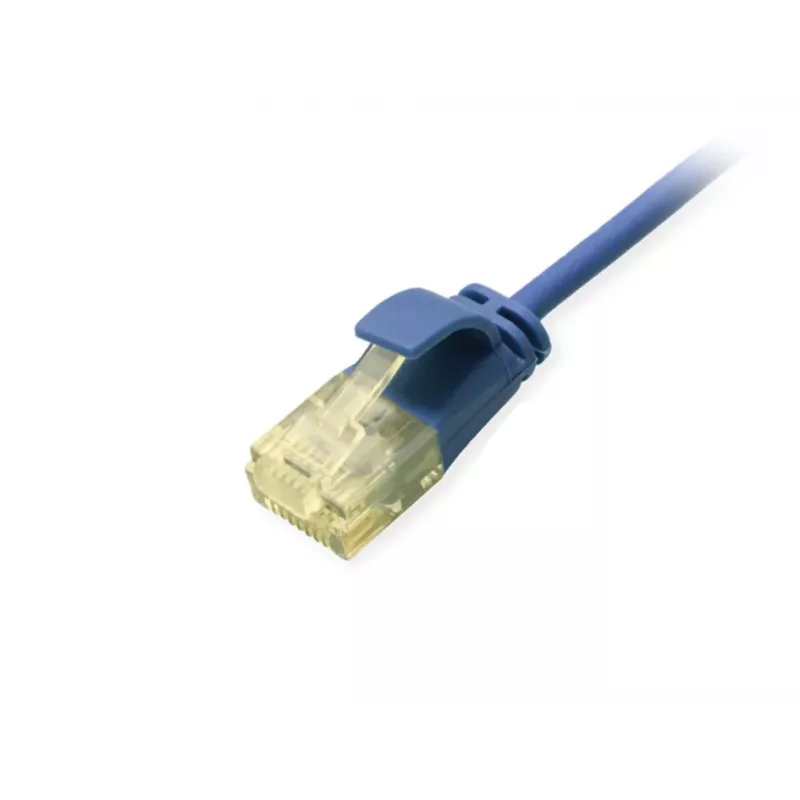

• Connectors: RJ-45 straight male – RJ-45 straight male
• Jacket: LSZH / LSOH (Low Smoke Zero Halogen)
• Standards: ISO/IEC 11801 and EN 50173 compliant
• Colour: Blue

How to use

Connect one RJ-45 plug to the network port of a switch, patch panel or device and the other RJ-45 plug to the corresponding port. Ensure connectors are fully inserted until they click. Route the slim cable along cable management channels or through rack trays to maintain airflow; avoid sharp bends and excessive tension to preserve performance and connector integrity.

Recommendations

For optimal performance, use the cable within its specified temperature and installation guidelines, maintain proper bend radius, and avoid running it parallel and in close proximity to strong electrical noise sources. The cable supports PoE and PoE+ but verify power class and device requirements before deployment.
