Επίπεδη βάση τοίχου οθόνης B-Tech VENTRY VESA 200

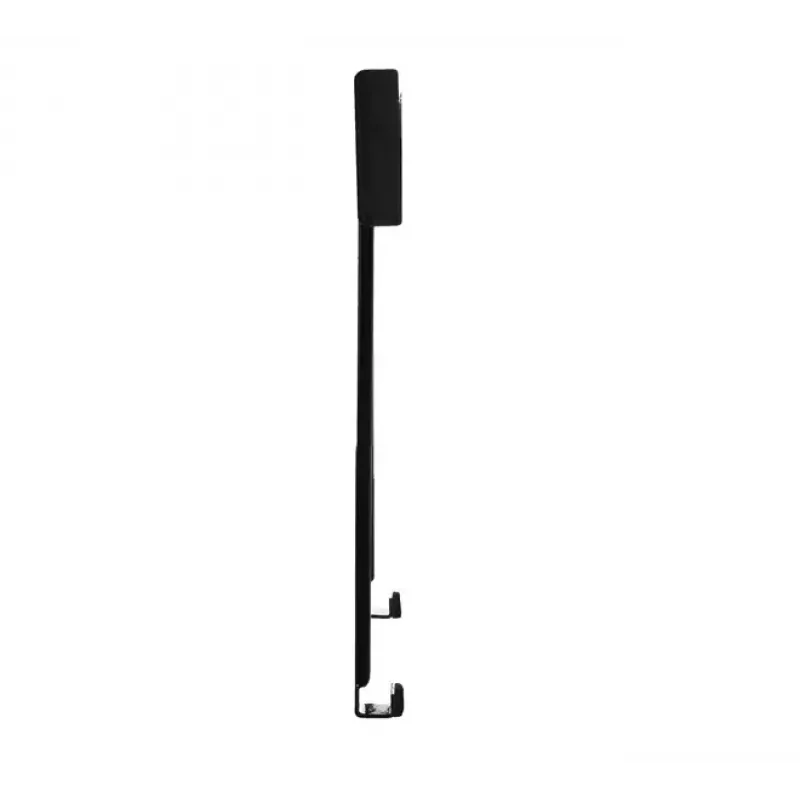

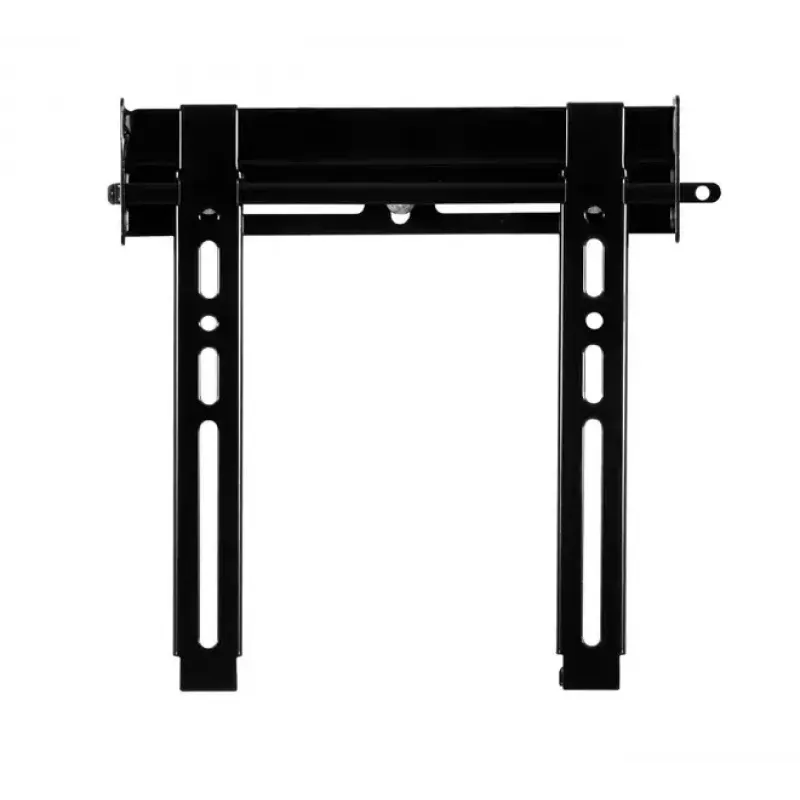

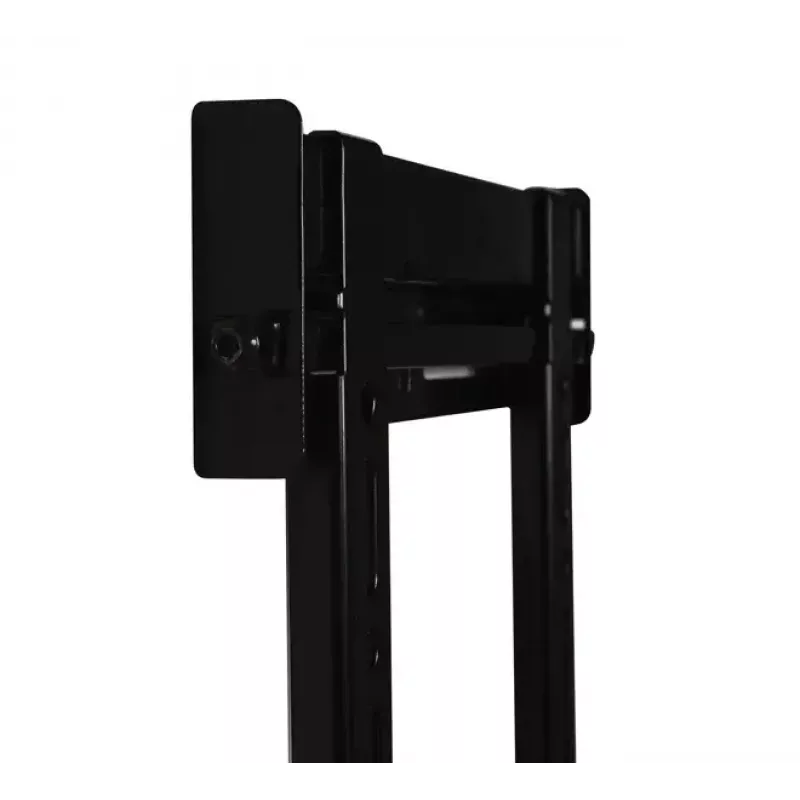

The B-Tech VENTRY Flat Screen Wall Mount BTV500/B is a low-profile bracket designed to hold a single flat screen up to 47 inches and 40 kg, placing the display approximately 20 mm from the wall. Its slim black design and compatibility with VESA up to 225 x 200 mm make it suitable for home and office installations where a discreet, stable mounting solution is required.

Advantages

The mount offers a minimal 20 mm gap from the wall for a neat appearance, a simple hook-on installation method and post-installation alignment to correctly position the screen after hanging. It includes a security locking bar to reduce the risk of unauthorised removal and comes with all necessary fixings and mounting hardware for immediate installation.

Suitable for

• Mounting a single flat screen up to 47 inches
• Displays with VESA patterns up to 225 x 200 mm

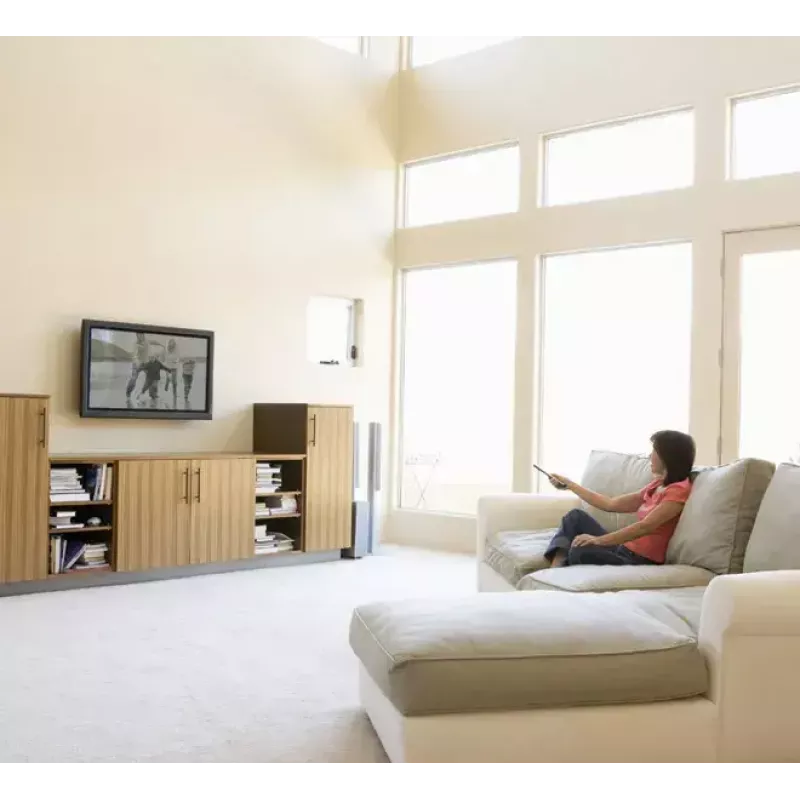

• Rooms requiring a slim, low-profile wall installation (home or office)
• Screens weighing up to 40 kg

Key specifications

• Maximum screen size: 47"
• Maximum weight capacity: 40 kg
• Maximum VESA: 225 x 200 mm
• Distance from wall (profile): 20 mm
• Colour: Black
• Number of displays supported: 1
• Includes security locking bar and all fixings

How to use

Secure the mounting plate to a suitable wall using the supplied fixings, ensuring the fittings are anchored in a suitable substrate for the combined weight of the screen and mount. Attach the bracket hooks to the display in accordance with the screen manufacturer's instructions and hang the screen on the wall plate using the hook-on method. Perform post-installation alignment to adjust the screen position and engage the security locking bar to prevent unauthorised removal.

Recommendations

Use appropriate wall anchors or fixings for the wall type and verify that the combined weight of the screen and any accessories does not exceed the 40 kg maximum. For safety and optimal alignment, follow the TV manufacturer's mounting instructions and check that the screen's VESA pattern is compatible with the mount's 225 x 200 mm capability.
