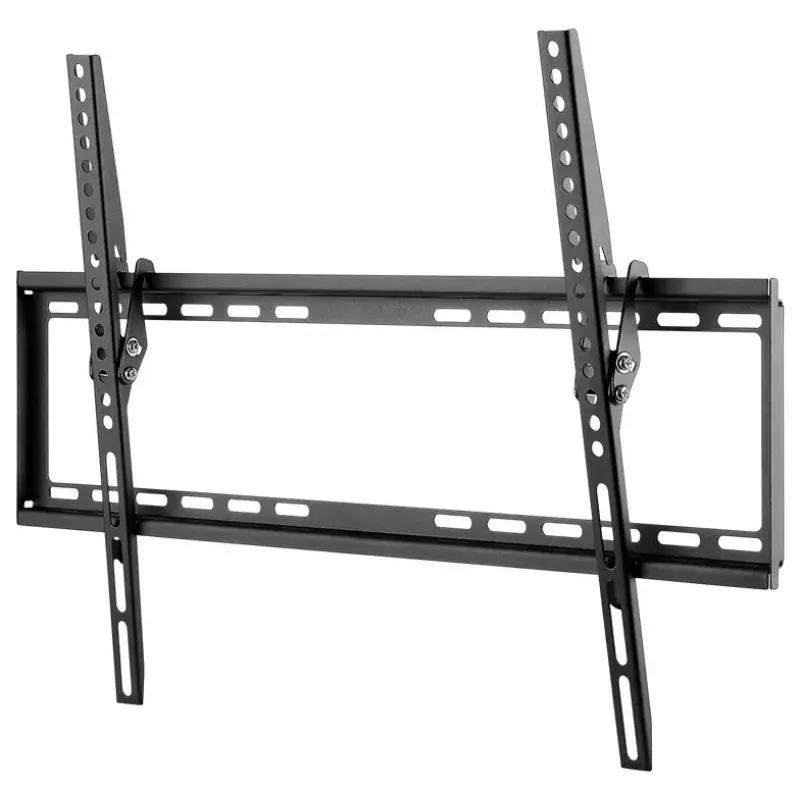

Βάση στήριξης TV στον τοίχο Wentronic 49741 177,8 cm (70 ίντσες) μαύρο

The Wentronic 49741 TV mount fits flat-panel TVs from 37" to 70" (94–178 cm) and supports up to 35 kg. With a slim profile of 20.5 mm from the wall and an open construction that improves airflow and access to rear connections, the bracket is suitable for ultra-thin televisions. The wall plate allows left-to-right adjustment so the TV can be positioned precisely after installation.

Advantages

The mount offers a low-profile design that keeps the TV close to the wall while permitting a tilt range of 0° to 8° for reduced glare. Its open frame increases ventilation behind the screen and provides easy access to cables and connectors. Adjustable lateral positioning on the wall plate simplifies alignment without re-drilling.

Suitable for

• 37"–70" (94–178 cm) flat-panel TVs
• TVs weighing up to 35 kg
• Displays with VESA patterns from 200 x 200 mm up to 600 x 400 mm
• Wall installations where a slim, low-profile mount is required

Key specifications

• Model: Wentronic 49741
• Screen size compatibility: 94–177.8 cm (37"–70")
• Maximum load: 35 kg
• Tilt range: 0° to 8°
• Distance to wall: 20.5 mm
• VESA compatibility: 200 x 200 up to 600 x 400 mm
• Color: Black
• Brand: WENTRONIC
• MPN: 49741
• EAN: 4040849497414

How to use

Attach the wall plate to a suitable load-bearing wall following the included mounting instructions and local building codes. Secure the TV to the mounting arms using screws matching the TV’s VESA pattern. After hanging the TV, adjust the horizontal position on the wall plate for precise alignment and set the tilt between 0° and 8° to reduce reflections. Check all fasteners for tightness before finishing the installation.

Recommendations

Verify the TV weight and VESA pattern before installation. Use appropriate wall anchors for the wall type (concrete, brick or wooden studs) and, if unsure, consult a qualified installer to ensure safe mounting.
