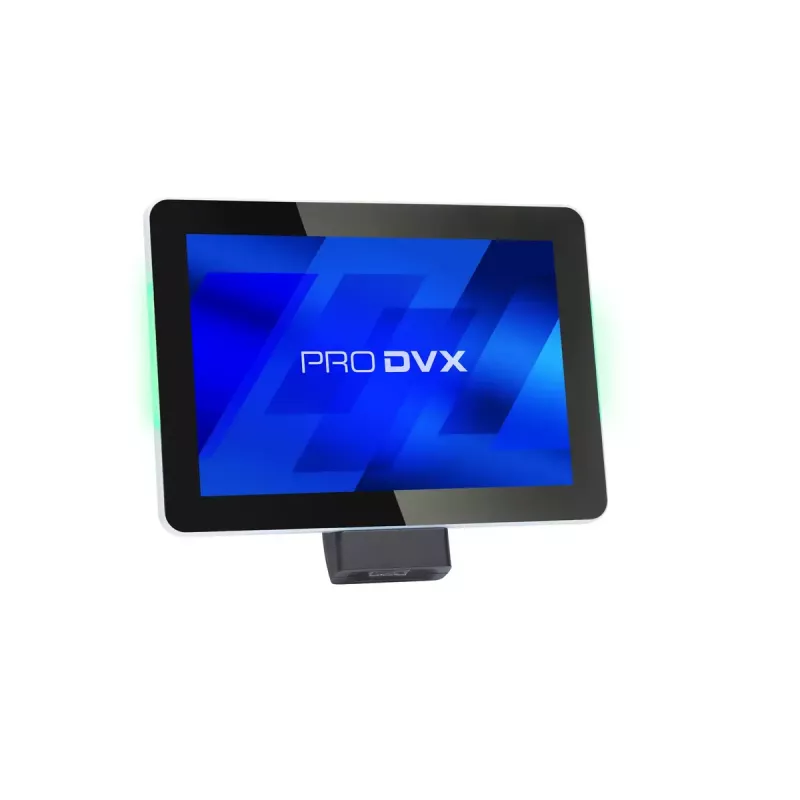

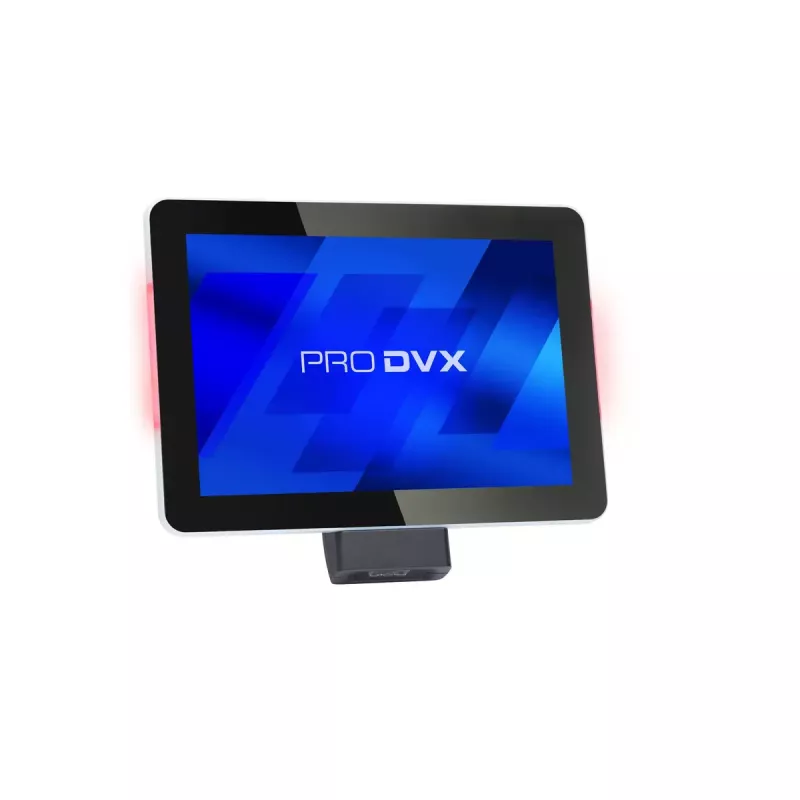

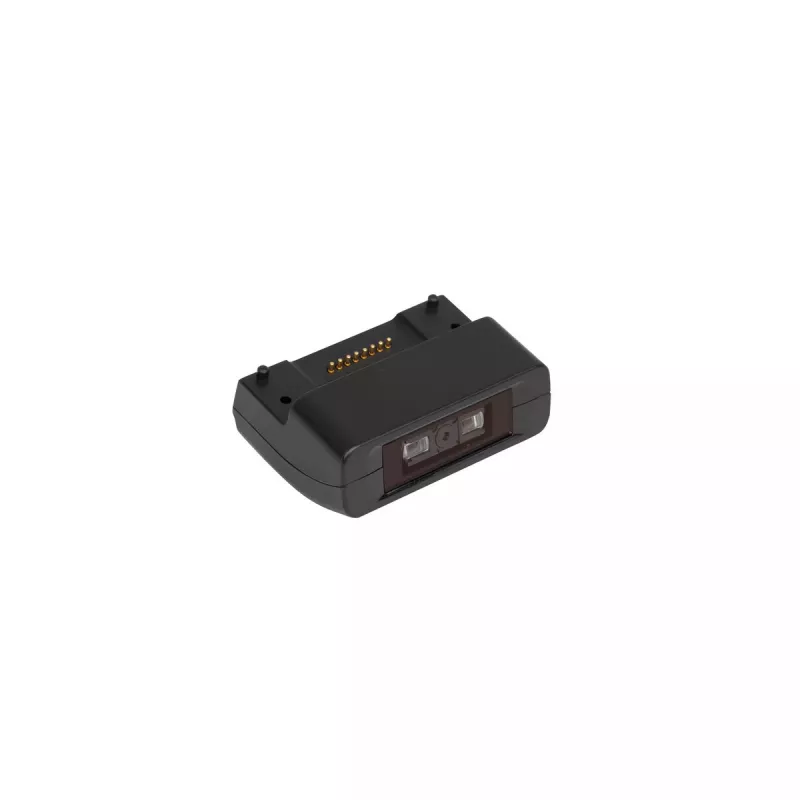

Ενσωματωμένος αναγνώστης barcode ProDVX BAR-10 2D

The ProDVX BAR-10 2D is a built-in barcode reader designed for reliable wired scanning of both 1D and 2D codes. Compatible with several ProDVX housings and terminals (APPC-7DSQ, APPC-10DS(Q)(P)(L), APPC-15DSQ(P), IPPC-10, IPPC-15), it supports common linear barcodes such as Code 128, Code 39, Code 93, EAN-13, EAN-8 and UPC formats, as well as 2D formats including PDF417, QR Code and DataMatrix.

Advantages

The BAR-10 2D provides accurate decoding of both 1D and 2D symbologies and offers wired connectivity for stable data transfer. Its compact, black built-in form factor allows seamless integration into compatible ProDVX devices and POS terminals without adding bulk. Support for a wide range of common barcode standards ensures compatibility with retail, logistics and identification workflows.

Suitable for

• Point-of-sale and checkout counters
• Self-service kiosks and terminals
• Inventory and stock management
• Ticketing and member identification

Key specifications

• Scanner type: 1D/2D
• Connectivity: Wired
• Supported 1D: Code 128, Code 39, Code 93, EAN-13, EAN-8, UPC-A/UPC-E
• Supported 2D: PDF417, QR Code (Model 1/2), DataMatrix (ECC200, 000, 050, 080, 100, 140)
• Colour: Black
• Compatible models: APPC-7DSQ, APPC-10DS(Q)(P)(L), APPC-15DSQ(P), IPPC-10, IPPC-15
• Manufacturer MPN: 88005000.150
• EAN: 2000000913216

How to use

Install the BAR-10 2D into a compatible ProDVX housing or terminal according to the device-specific installation instructions. Connect the module using the provided wired interface to the host device. Aim the scanner at the barcode so the code is fully visible in the scan window; the module will decode supported 1D and 2D symbologies and transmit the data to the host system. Ensure the host software is configured to accept input from an external barcode module if required.

Recommendations

For reliable scanning, keep the scan window clean and free of scratches, ensure adequate lighting for reflective codes, and position barcodes within the recommended working distance specified by the host device documentation. Test the module with representative barcode samples (1D and 2D) during setup to confirm configuration and compatibility.
