EFB Elektronik MTPM08LCOM4-0,4 - 0,4 m - OM4 - MTP - Καλώδιο fanout LC

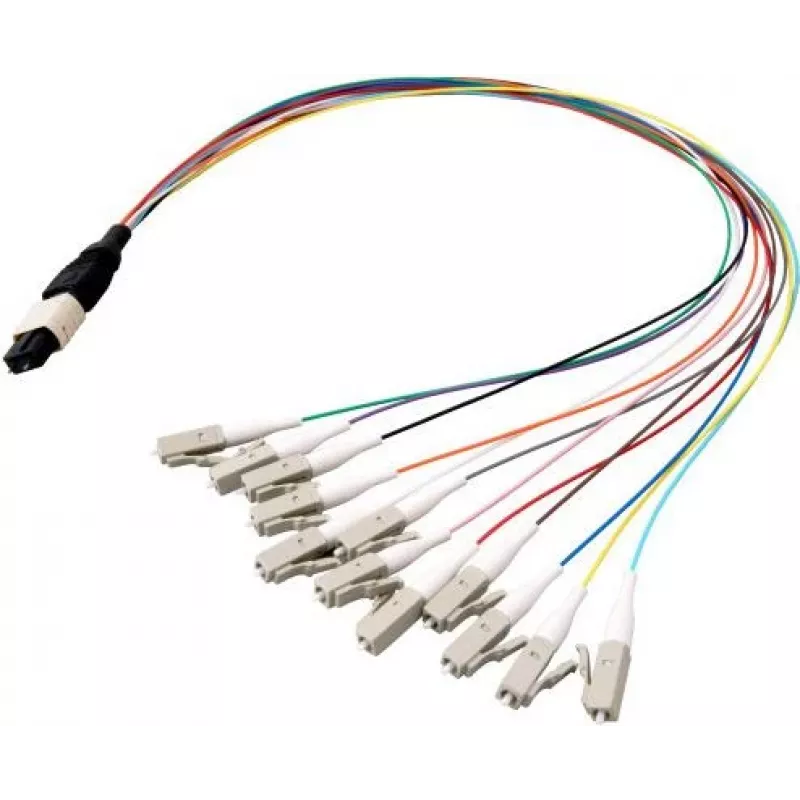

The EFB Elektronik MTPM08LCOM4-0,4 is a high-performance 8-fiber fanout cable designed for data center and high-density network cabling. It features an MTP male connector on one end and 8 LC connectors (4 duplex pairs) on the other, enabling quick and reliable connections in structured cabling environments. The cable is OM4 multimode, optimized for 50/125 µm fiber with low attenuation and high bandwidth, supporting 40G and 100G Ethernet applications.

Advantages

This fanout cable simplifies cable management by breaking out a single MTP trunk into individual LC connectors, reducing clutter and improving airflow in racks. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, emitting minimal smoke and no toxic halogens in case of fire. The erika violet color allows easy identification among other cables.

Suitable for

• Data center interconnects
• High-density network cabling
• 40G/100G Ethernet backbone connections
• Server and storage area network (SAN) deployments

Key specifications

• Brand: EFB Elektronik
• Model: MTPM08LCOM4-0,4
• MPN: MTPM08LCOM4-0,4
• EAN: 4049759241162
• Category: Fiber Optic Cables
• Cable Type: Fanout Cable
• Fiber Type: Multimode OM4
• Fiber Count: 8 Fibers
• Connector A: MTP Male
• Connector B: 8x LC (4x LC Duplex)
• Cable Length: 0.4 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Erika Violet
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Attenuation @ 850nm: 2.5 dB/km (Max)
• Attenuation @ 1300nm: 0.8 dB/km (Max)
• Flame Retardancy: IEC 60332-1
• Halogen Free: Yes
• Smoke Emission: Low Smoke
• Environmental Compliance: RoHS, REACH

Recommendations

For optimal performance, pair this cable with OM4-compatible transceivers and patch panels. Ensure proper bend radius during installation to maintain signal integrity.
