EFB Elektronik Fibre Pigtail SC 50/125 OM5, σετ 12 χρωμάτων, 2m

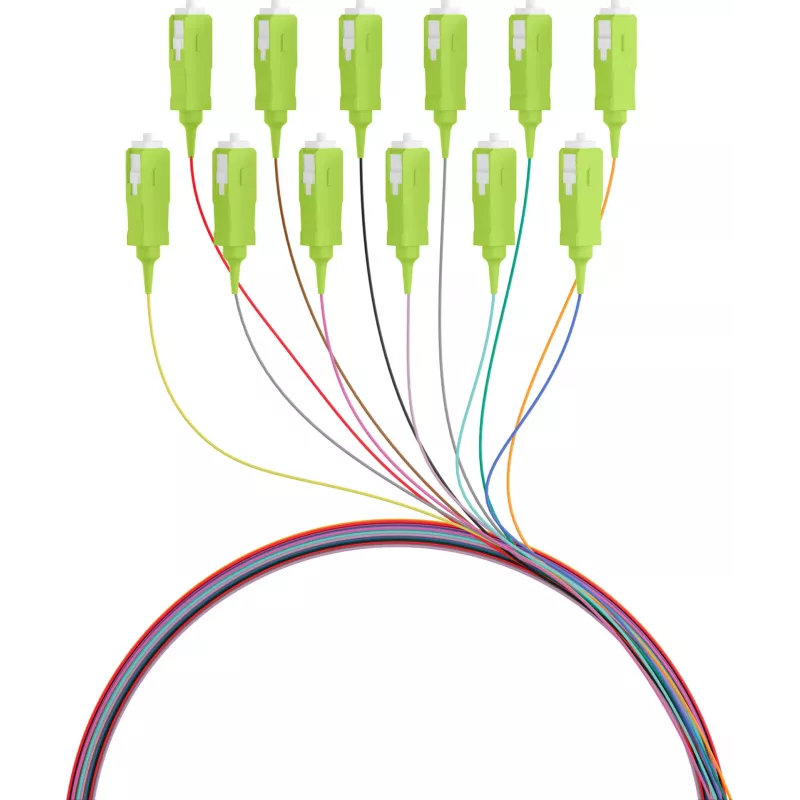

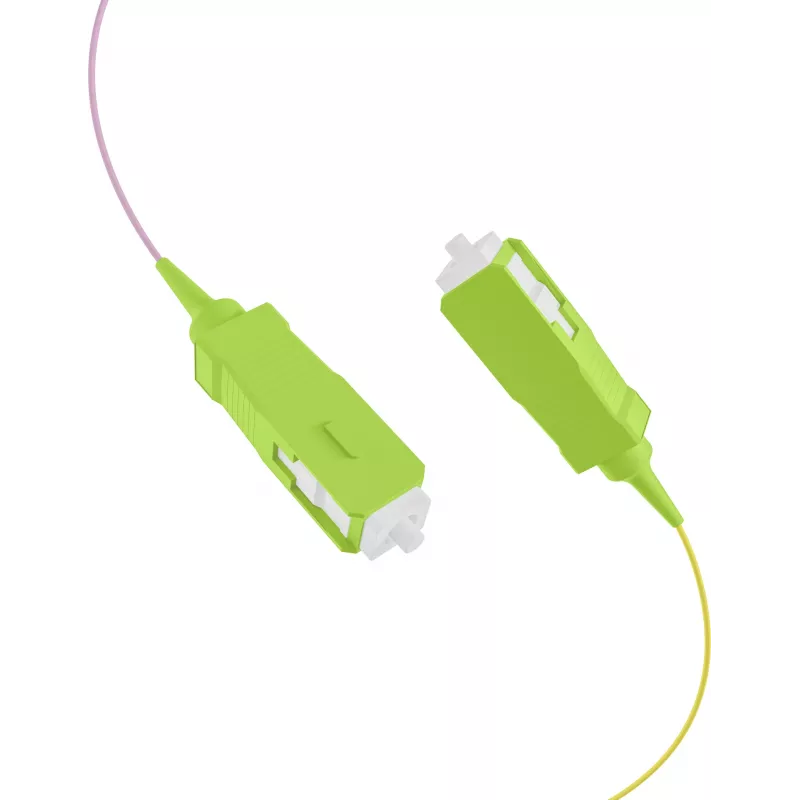

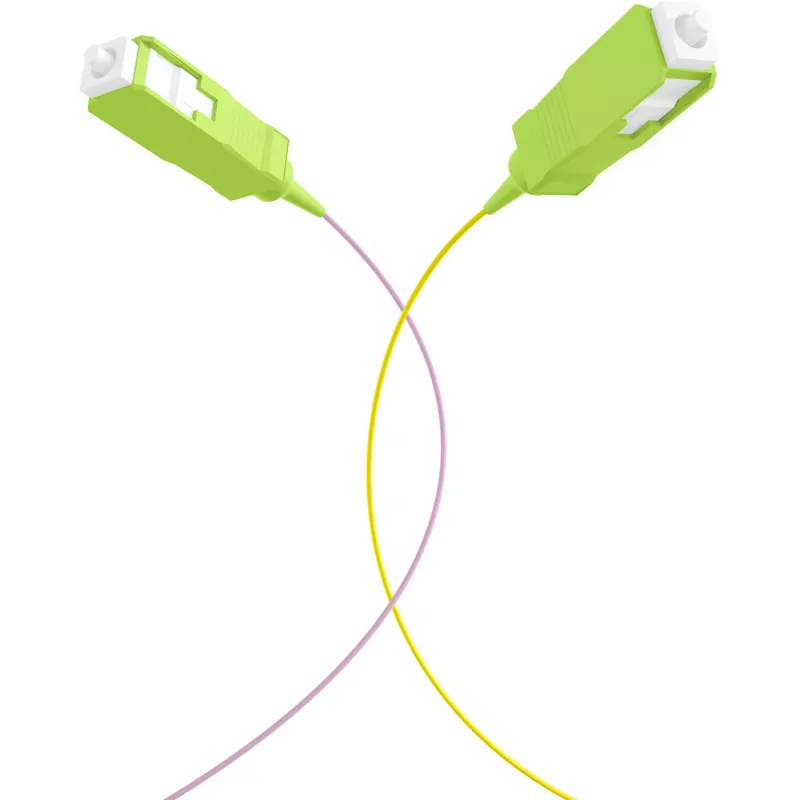

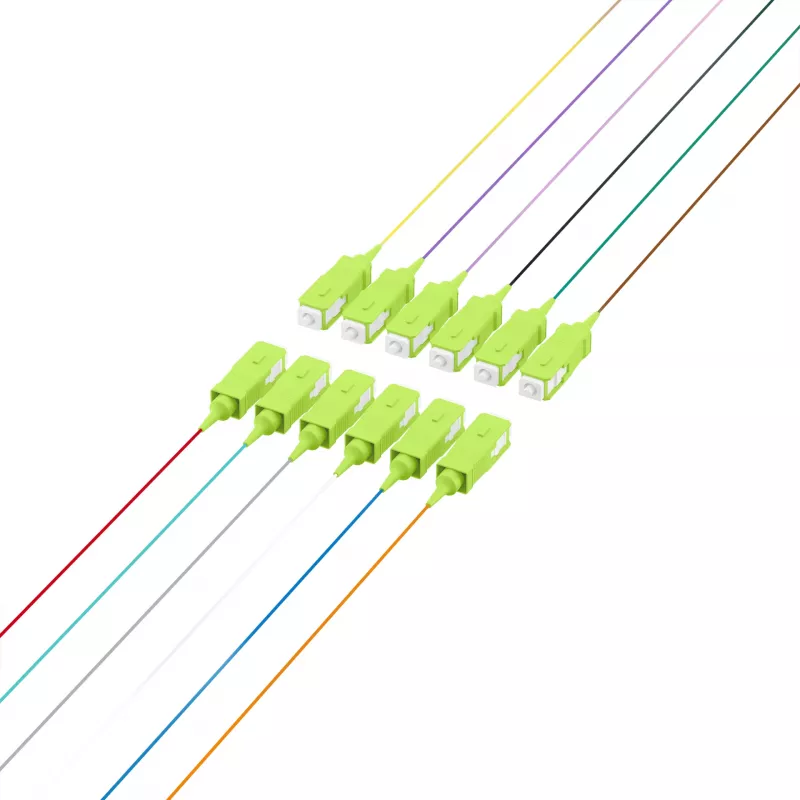

The EFB Elektronik Fibre Pigtail SC 50/125 OM5 is a high-quality 12-colour set of pre-terminated fibre optic pigtails designed for reliable and efficient fibre optic splicing and patching. Each pigtail features a factory-polished SC connector on one end and a bare fibre end for splicing, ensuring low insertion loss and high return loss. The OM5 wideband multimode fibre supports multiple wavelengths, making it ideal for high-speed data transmission up to 400 Gigabit Ethernet.

Advantages

This pigtail set offers exceptional performance and flexibility for network installations. The 12-colour coding according to DIN VDE 0888 simplifies identification and organisation, reducing installation time and errors. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in enclosed spaces, while the 0.9 mm diameter allows for easy handling and splicing. With OM5 fibre grade, it supports SWDM technology for future-proof network upgrades.

Suitable for

• Data centre fibre optic patching and splicing
• High-speed network infrastructure (40/100/200/400 Gigabit Ethernet)
• Telecommunications and enterprise networks
• Fibre-to-the-desk (FTTD) installations
• SWDM (Short Wavelength Division Multiplexing) applications

Key specifications

• Product Type: Fibre Optic Pigtail Set
• Fiber Type: Multimode OM5 (Wideband Multimode Fiber)
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Connector Type (End 1): SC
• Connector Type (End 2): Unconnectorized (bare fibre)
• Number of Fibers: 12
• Length: 2 m
• Colour Coding: 12-colour coded (DIN VDE 0888)
• Polishing Type: PC (Physical Contact)
• Cable Diameter: 0.9 mm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Standard Compliance: IEC 60793-2-10 Type A1a.4, TIA-492AAAE
• Wavelength Support: 850 nm, 953 nm (for SWDM)

Recommendations

For optimal performance, use with OM5-rated patch panels and connectors. Ensure proper cleaning and splicing techniques to maintain low insertion loss. This pigtail set is an excellent choice for high-density fibre environments requiring reliable and scalable connectivity.
