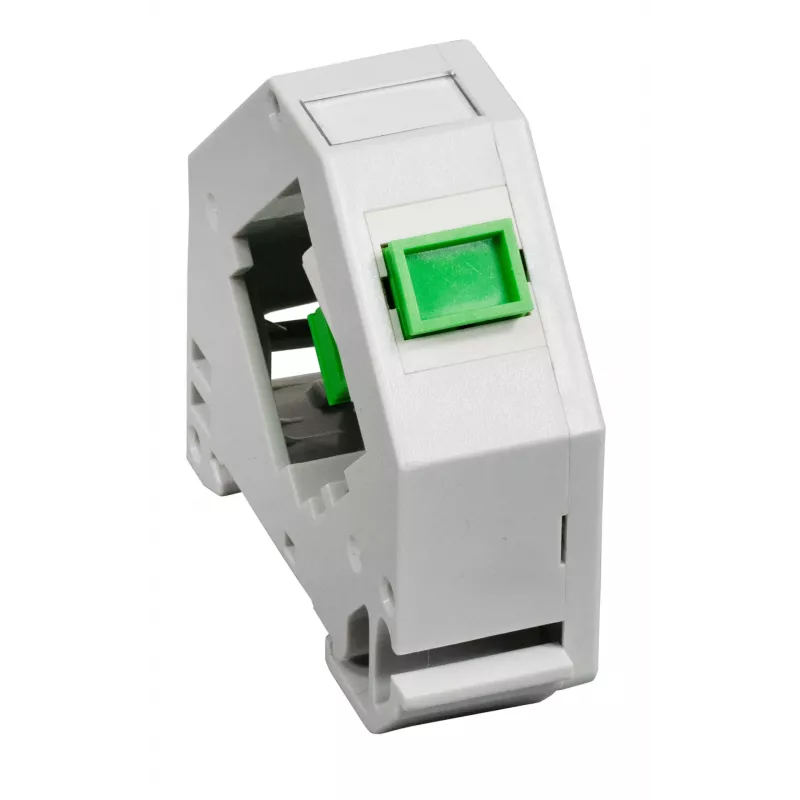

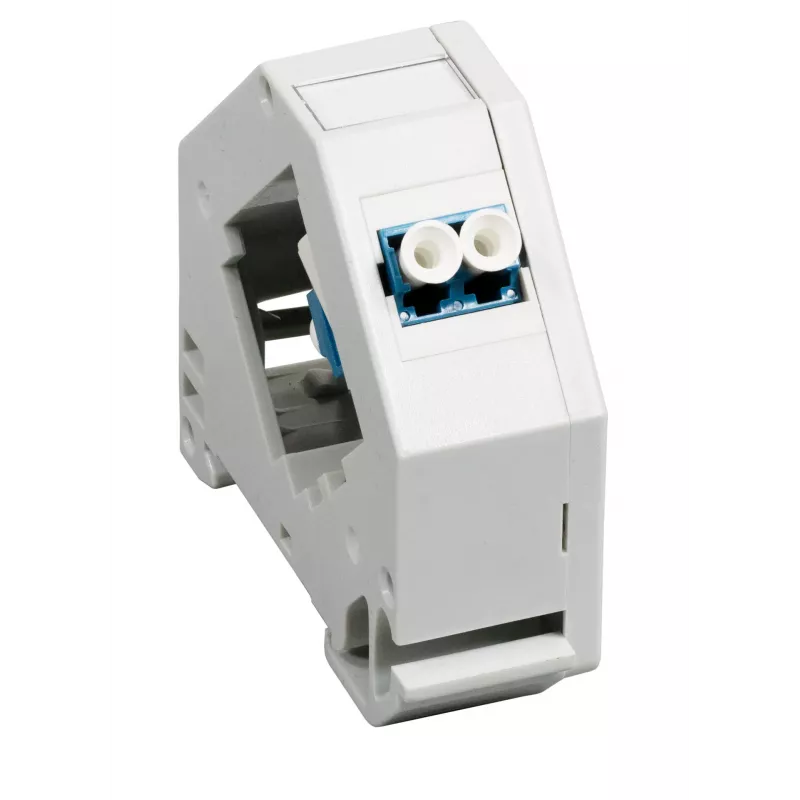

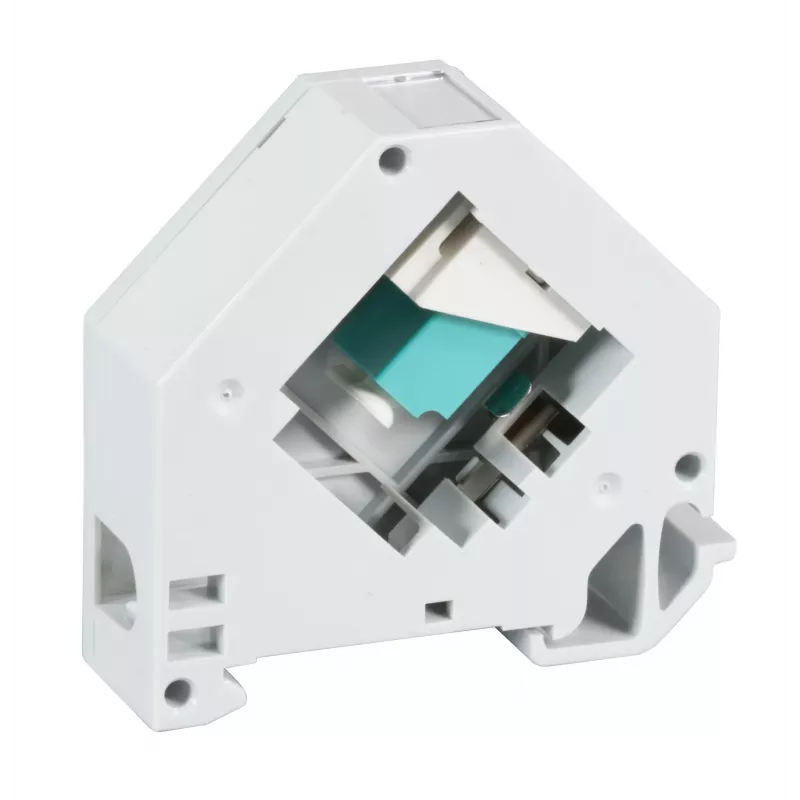

EFB Προσαρμογέας Ράγας DIN για LC/APC Singlemode, 2 Θύρες

The EFB DIN Rail Adapter for LC/APC Singlemode is a robust and reliable solution for mounting fiber optic LC/APC duplex couplers on standard DIN rails (TS35 / EN 60715). Designed for professional network termination, this adapter provides a secure and organized housing for up to 2 fibers, making it ideal for telecommunication cabinets, industrial control panels, and data center environments.

Advantages

Tool-free snap-on installation saves time and effort. The sheet steel housing with grey (RAL 7035) finish ensures durability and a professional appearance. Passive mechanical design guarantees long-term reliability without power consumption.

Suitable for

• Fiber optic network termination in industrial and commercial settings
• Mounting LC/APC duplex couplers on DIN rails
• Telecommunication and data center infrastructure

Key specifications

• Mounting Type: DIN Rail (TS35 / EN 60715)
• Connector Type: LC/APC
• Fiber Mode: Singlemode
• Number of Ports: 2
• Housing Material: Sheet Steel
• Housing Color: Grey (RAL 7035)
• Operating Temperature: -20°C to +70°C
• IP Rating: IP20
• Standards: EN 60715, RoHS

Recommendations

For optimal performance, use with standard LC/APC duplex couplers (not included). Ensure the DIN rail is properly grounded according to local regulations.
