VCX DVM 3-Φασικός Αρθρωτός Δείκτης Τάσης 80-500V AC Ράγα DIN

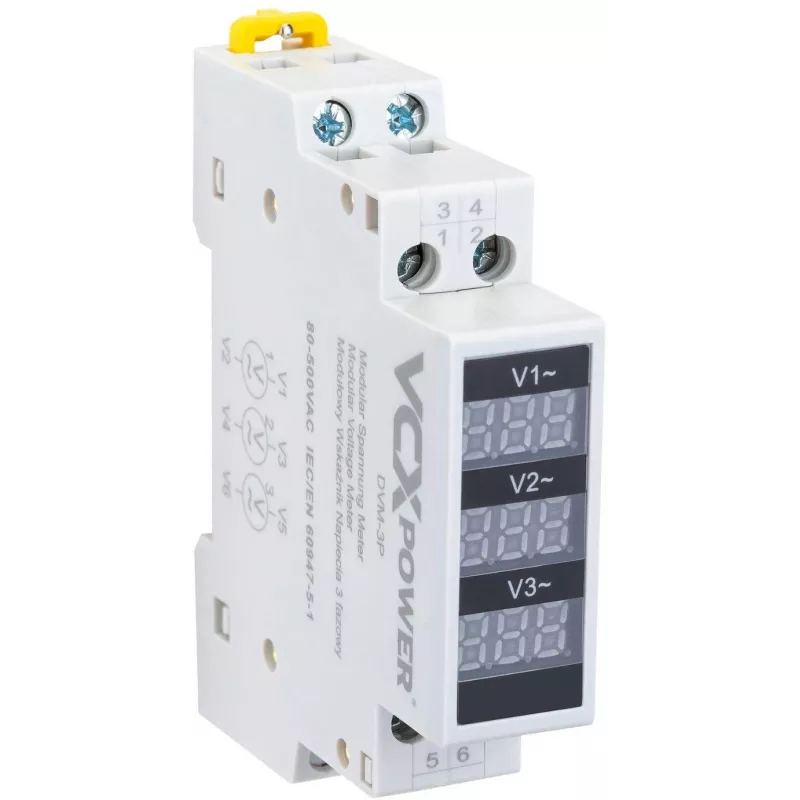

The VCX DVM 3-Phase Modular Voltage Indicator is a professional-grade digital voltmeter designed for continuous monitoring of three-phase AC voltages. Housed in a compact 3-module DIN rail enclosure, it provides clear real-time display of L1, L2, and L3 phase voltages via three red 7-segment LED displays. Ideal for industrial control panels, distribution boards, and electrical cabinets, this device ensures reliable voltage monitoring with ±1% accuracy.

Advantages

• Simultaneous display of all three phase voltages
• Wide measurement range: 80–500 V AC
• Easy DIN rail mounting (TH35)
• Low power consumption (<1 W)
• Robust design for industrial environments

Suitable for

• Industrial control panels
• Distribution boards
• Electrical cabinets
• Building automation systems

Key specifications

• Product Type: Digital Voltmeter
• Application: 3-Phase Voltage Monitoring
• Mounting: DIN Rail (TH35)
• Number of Phases: 3 (L1, L2, L3)
• Voltage Range: 80–500 V AC
• Frequency: 50/60 Hz
• Display: 3x 7-Segment LED, Red
• Accuracy: ±1%
• Module Width: 3 DIN Modules (54 mm)
• Operating Temperature: -5°C to +40°C
• Protection Rating: IP20
• Power Consumption: <1 W
• Terminals: Screw Terminals
• Input Connections: L1, L2, L3, N

Recommendations

For optimal performance, install on a standard TH35 DIN rail in a dry, ventilated enclosure. Ensure proper fusing and disconnection means as per local electrical codes.
