DSIT CAT 6 καλώδιο δικτύου LSOH - S/FTP - 20 μέτρα - γκρι (DC-S61-200)

For installations where safety and signal integrity are non-negotiable, this DSIT CAT 6 cable stands apart with its low-smoke zero-halogen jacket and full S/FTP shielding. Unlike standard PVC patch leads, it is engineered to minimise toxic emissions in the event of fire while rejecting electromagnetic interference that can cripple Gigabit and 10-Gigabit links.

Highlights

• CAT 6 performance with 250 MHz bandwidth and 10GBASE-T support up to 55 metres
• S/FTP construction: braided screen plus foil-wrapped pairs for superior noise immunity
• LSOH (Low Smoke Zero Halogen) jacket meets IEC 60332-1 flame retardancy
• Stranded 26 AWG copper conductors for flexibility and reliable patching

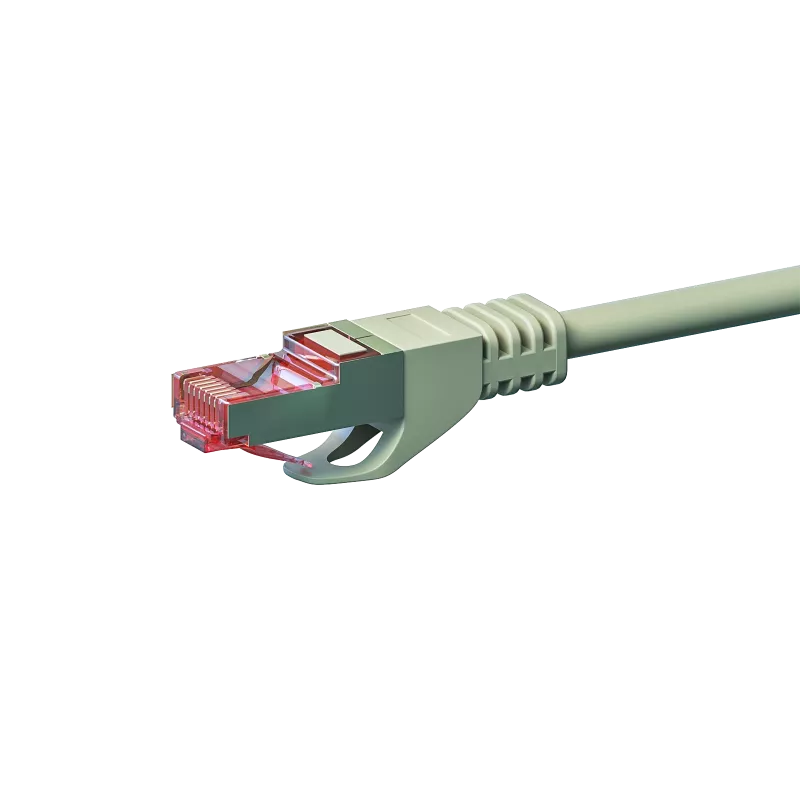

• Moulded RJ45 male connectors on both ends, wired to TIA/EIA-568B
• 20-metre length ideal for structured cabling, server rooms, and long patch runs

In daily use

This cable delivers consistent, error-free connectivity in electrically noisy environments such as industrial floors, data centres, and offices with heavy machinery. The grey LSOH sheath remains pliable and easy to route, while the robust connectors withstand frequent re-patching. With a 6.0 mm outer diameter and operating range from -20°C to 60°C, it is built for demanding indoor installations.

Full specifications

• Brand: DSIT
• Model: DC-S61-200
• MPN: DC-S61-200
• EAN: 8719956628412
• Cable type: CAT 6 S/FTP
• Length: 20 m
• Colour: Grey
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: 250 MHz
• Conductor material: Copper
• Conductor gauge: 26 AWG
• Wiring standard: TIA/EIA-568B
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Flame retardant: Yes (IEC 60332-1)
• Halogen-free: Yes
• Cable construction: Stranded
• Outer diameter: Approx. 6.0 mm
• Operating temperature: -20°C to 60°C

Final note

When safety and performance must coexist, the DSIT DC-S61-200 provides a certified, low-hazard solution without compromising on CAT 6 throughput.
