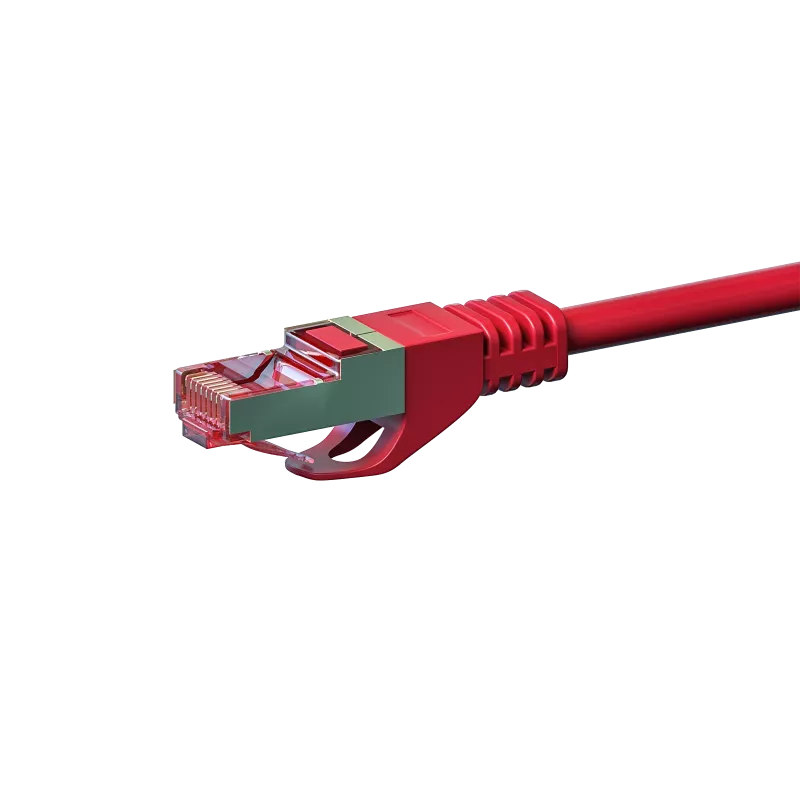

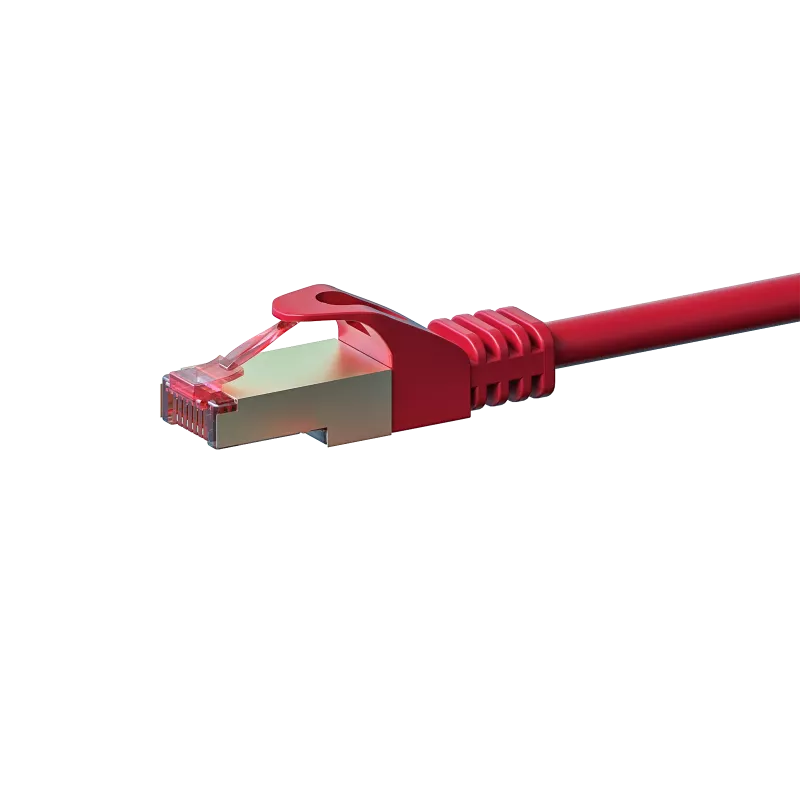

DSIT CAT 6 καλώδιο δικτύου LSOH - S/FTP - 2 μέτρα - κόκκινο (DC-S65-020)

Where standard patch cables settle for basic PVC jackets and minimal shielding, the DSIT CAT 6 S/FTP LSOH cable brings a hardened, safety-first build that thrives in dense network environments. Its low-smoke zero-halogen jacket reduces toxic emissions and smoke in the event of fire, while each twisted pair is individually foiled and the entire bundle screened to suppress alien crosstalk. The result is a 2-metre red patch cable that handles 10 Gigabit Ethernet with headroom to spare, making it a dependable link for high-density racks, office floors, and industrial LAN segments.

Highlights

• Category 6 performance with 250 MHz bandwidth and up to 10GBASE-T support
• S/FTP construction: individual pair foils plus overall braid screen for superior noise immunity
• LSOH (Low Smoke Zero Halogen) jacket meets IEC 60332-1, IEC 61034, and IEC 60754 fire safety standards
• Gold-plated RJ45 connectors with stranded 26/7 AWG copper conductors for flexibility and long-term reliability
• 2-metre length ideal for patch panels, switches, and workstation connections

In daily use

This cable is built for environments where performance and safety cannot be compromised. The S/FTP shielding keeps signal integrity intact even when bundled with power lines or other data cables, while the LSOH jacket ensures that in a fire, the cable emits minimal smoke and no corrosive halogen gases. The red colour aids quick identification in complex installations. The stranded conductors allow tight bends without breakage, and the gold-plated contacts resist corrosion over years of insertions.

Full specifications

• Brand: DSIT
• Model: DC-S65-020
• MPN: DC-S65-020
• EAN: 8719956627835
• Cable length: 2 m
• Product colour: Red
• Cable standard: Cat6
• Cable shielding: S/FTP
• Jacket material: LSZH & Halogen-Free
• Data transfer rate: 10 Gbps
• Cable type: Ethernet Patch Cable
• Connector type: RJ45 Male (both ends)
• Connector plating: Gold-plated
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Bandwidth: 250 MHz
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Number of pairs: 4
• Fire safety standards: IEC 60332-1, IEC 61034, IEC 60754
• Compliance: RoHS, CE

Final note

For installations where fire safety and signal integrity are non-negotiable, this DSIT cable delivers both without compromise.
