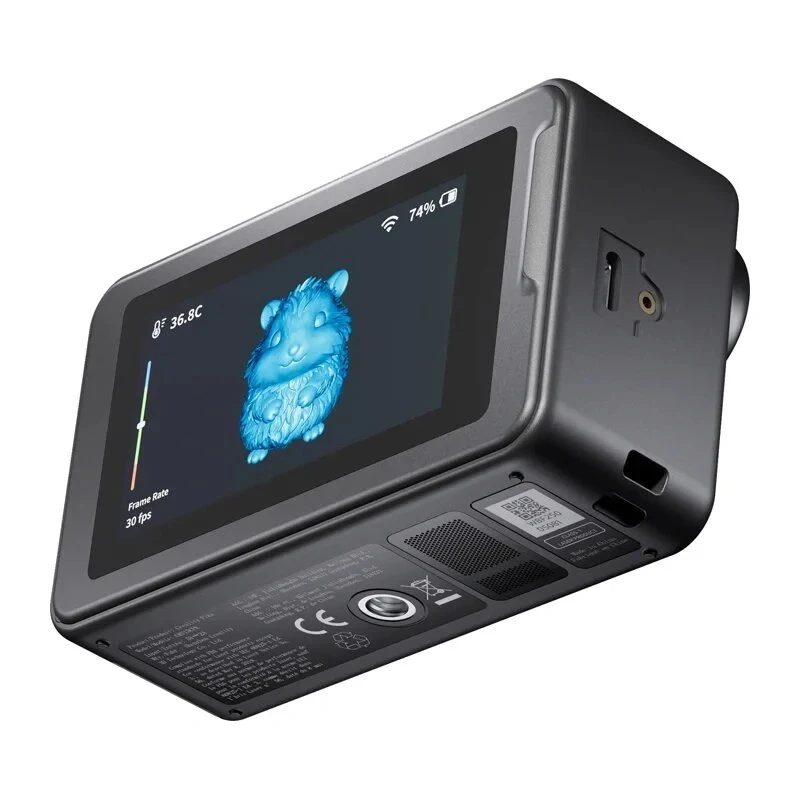

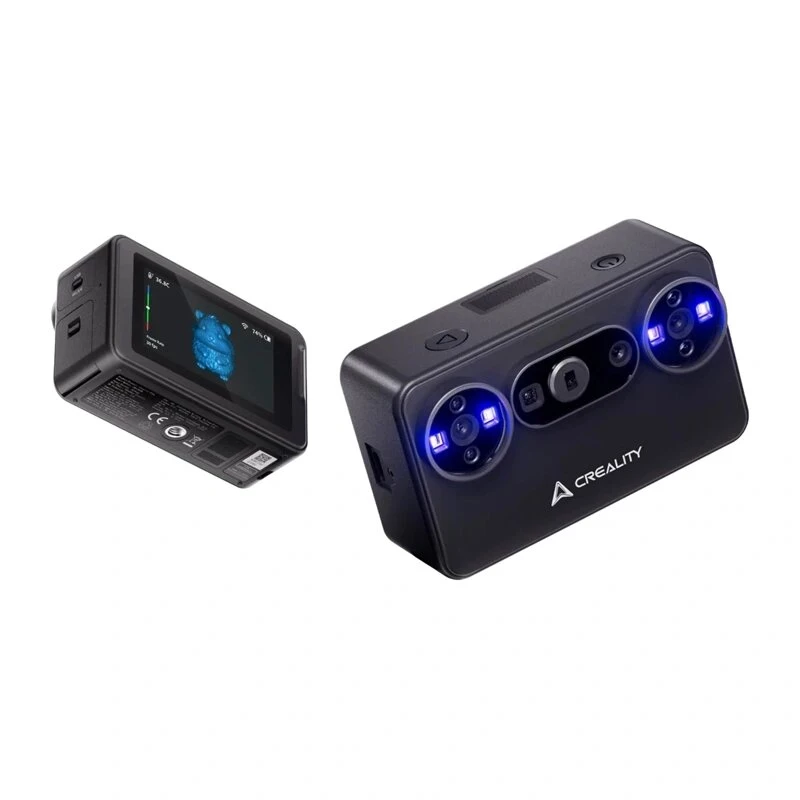

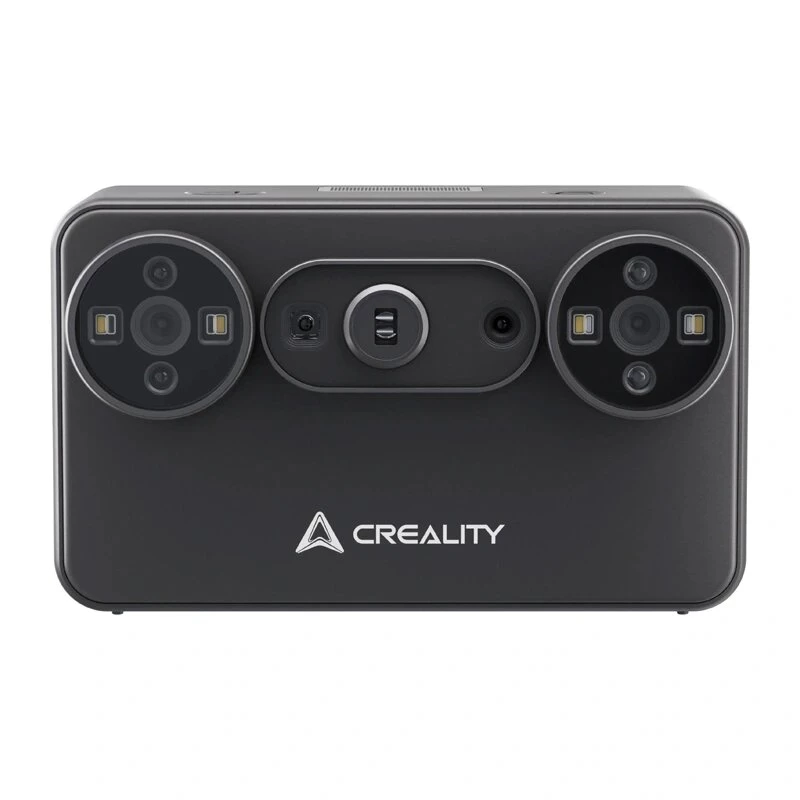

Creality Pika Σαρωτής 3D

The Creality Pika 3D Scanner is a compact device that uses 7 parallel blue laser lines and NIR structured light for scanning both small details and larger objects. It offers up to 0.03 mm accuracy, 0.1–2 mm 3D resolution, and scanning speeds up to 110 fps, with a supported object size range from 10 × 10 × 10 mm to 2000 × 2000 × 2000 mm.

Key features

• 7 parallel blue laser lines and NIR structured light
• Accuracy up to 0.03 mm (blue laser) and up to 0.1 mm (NIR)
• 3D resolution: 0.1–2 mm (blue laser), 0.15–2 mm (NIR)
• Scanning speed up to 110 fps (blue laser, with computer) and up to 30 fps (NIR, with computer); with smartphone: up to 40 fps and 20 fps respectively
• Working distance: 160–400 mm (blue laser), 140–1,000 mm (NIR)
• Object size range: 10 × 10 × 10 mm to 2000 × 2000 × 2000 mm
• Color mapping with 24-bit color capture in NIR mode
• Scanning of black and metallic objects without scanning spray
• Alignment in blue laser mode: markers, global markers, or markerless; in NIR mode: geometry or texture
• 3-inch touchscreen
• Wi-Fi 6
• Two interchangeable 3350 mAh batteries
• Wireless connection to Android and iOS smartphones, Windows and macOS computers; iOS devices do not support wired connection
• USB Type-C / USB 3.0 interface
• 8-core 2.0 GHz processor
• CrealityScan software for scanning, image and point cloud processing, optimization, and basic editing; export in STL, OBJ, PLY, and ASC formats

Specifications

• Brand: Creality
• MPN: 4008050066
• Dimensions: 100 × 60 × 35 mm
• Weight: 260 g (including battery)
• Wi-Fi: Yes
• Wi-Fi standards: Wi-Fi 6
