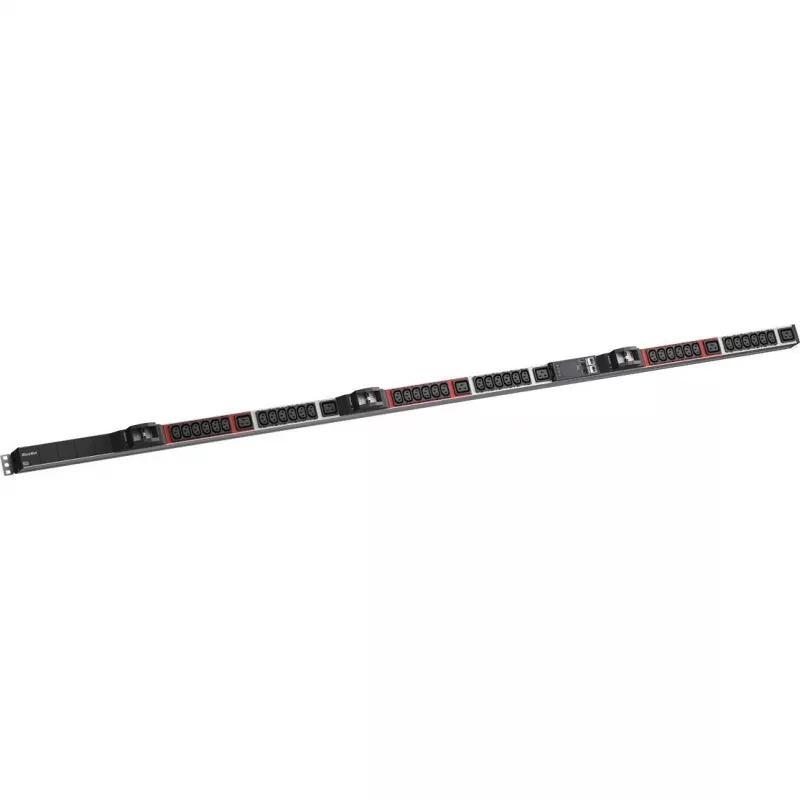

BACHMANN BN ESSENTIAL Metered PDU 36xC13, 6xC19, 6xLS, 3,0m CEE 32/5p

The BACHMANN BN ESSENTIAL Metered PDU is a high-performance power distribution unit designed for professional data center and server room environments. With 36 IEC C13 and 6 IEC C19 outlets, it provides comprehensive power distribution for a wide range of IT equipment. The integrated metering offers real-time monitoring of current, voltage, power, and energy consumption per phase and per load segment, enabling efficient power management and capacity planning.

Advantages

This PDU features six load segments with individual 16A circuit breakers (C-characteristic) for reliable overcurrent protection. The 3.0-meter power cable with a CEE 32A 5-pole plug ensures easy connection to three-phase power sources. The anodized aluminum housing provides durability and effective heat dissipation, while the 0U vertical form factor saves valuable rack space.

Suitable for

• Data centers and server rooms requiring precise power monitoring
• Rack-mounted IT equipment such as servers, switches, and storage devices
• Applications needing three-phase power distribution with high outlet density

Key specifications

• PDU Type: Metered
• Input Plug: CEE 32A, 5-pole (3P+N+PE)
• Input Voltage: 400V AC (3-phase)
• Input Current Rating: 32A
• Output Outlets: 36 x IEC C13, 6 x IEC C19
• Load Segments: 6
• Circuit Breakers: 6 x 16A (C-characteristic)
• Metering: Current (A), Voltage (V), Active Power (kW), Apparent Power (kVA), Energy (kWh), Power Factor (PF), Frequency (Hz)
• Metering Scope: Per phase and per load segment
• Display: Integrated LED display
• Power Cable Length: 3.0 m
• Mounting: Vertical 0U Rack Mount (19-inch compatible)
• Housing Material: Anodized Aluminum Profile
• Max Total Power Output: 22 kW
• Frequency: 50/60 Hz
• Operating Temperature: 0 - 45 °C
• Relative Humidity: 10 - 90% (non-condensing)

Recommendations

For optimal performance, ensure that the total connected load does not exceed 22 kW and that each load segment is balanced. Use with appropriate three-phase power infrastructure.
