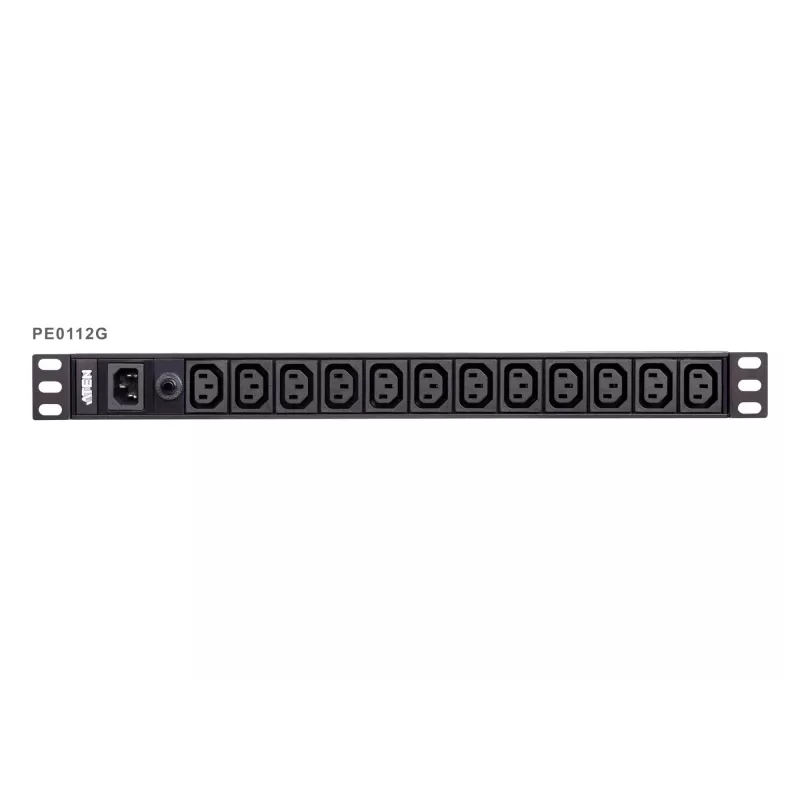

ATEN 1U 10A 12Port Basic PDU

The ATEN Basic PDU ATEN PE0112G-AT-G is a 1U rack-mountable power distribution unit providing 12 C13 AC outlets in a compact aluminium housing. Designed for efficient use of rack space, the unit includes a 3 m power cord (LINP-10F3-2B0G), supports an input voltage range of 100–240 V and a maximum current of 10 A, and carries CE certification. Dimensions are 480 mm (W) × 450 mm (D) × 44 mm (H) and the product weight is 0.92 kg.

Advantages

The 1U vertical design allows installation on the outside of a rack to save internal rack space while keeping all 12 AC outlets accessible. The aluminium housing provides durability and effective heat dissipation. Wide input voltage compatibility (100–240 V) and CE certification ensure compatibility with international power environments. The included 3 m power cord simplifies installation and reduces the need for additional cables.

Suitable for

• Server rooms and data centre racks requiring compact power distribution
• Network cabinets and telecommunications enclosures
• Small to medium-sized IT closets and edge computing racks
• Environments needing multiple C13 outlets in limited space

Key specifications

• Model: PE0112G-AT-G
• Outlets: 12 × C13 (AC)
• Input voltage: 100–240 V
• Maximum current: 10 A
• Cable: LINP-10F3-2B0G, 3 m
• Housing: Aluminium, black
• Dimensions (W×D×H): 480 × 450 × 44 mm
• Weight: 0.92 kg
• Certifications: CE

How to use

Mount the PDU vertically on the outside of a 19-inch rack using appropriate mounting brackets or screws. Connect the unit to a suitably rated AC power source using the supplied 3 m power cord. Plug equipment into the 12 C13 outlets, ensuring the total current draw does not exceed the 10 A maximum. Position the PDU to allow adequate ventilation around the aluminium housing and route cables to avoid strain on connectors.

Recommendations

Distribute connected equipment across outlets to avoid exceeding the 10 A rating; verify total load before powering on. Use the PDU in environments within the specified input voltage range (100–240 V) and maintain clearance for airflow around the unit. For permanent installations, secure power and device cabling to prevent accidental disconnections.
