AXING SAA 85-03N Δορυφορική Κεραία Αλουμινίου 85 cm, Ανθρακί SAA08503N

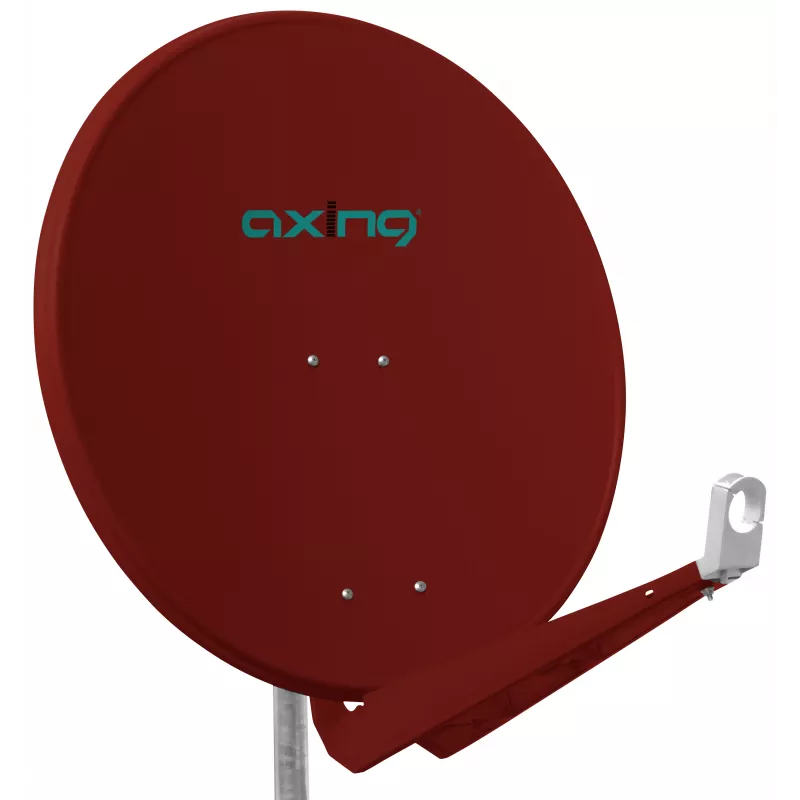

The AXING SAA 85-03N is an 85 cm offset satellite antenna with a powder-coated aluminium reflector, delivering a gain of 38.5 dB across the Ku-band frequency range of 10.7–12.75 GHz. Its robust construction and UV-resistant surface make it ideal for reliable satellite reception in demanding outdoor environments.

Advantages

The antenna features a galvanized steel mast/wall mount with a clamp diameter of 32–76 mm, ensuring secure installation on various masts. The offset design with a 26° offset angle minimizes rain and snow accumulation, while the 40 mm LNB holder supports standard LNBs. The powder-coated anthracite finish provides long-lasting protection against corrosion and UV radiation.

Suitable for

• Reception of Ku-band satellite signals (10.7–12.75 GHz)
• Fixed installations on masts or walls
• Outdoor use in temperatures from -30 to +70 °C
• Single-satellite reception, expandable with multi-LNB bracket

Key specifications

• Dish diameter: 85 cm
• Reflector material: Aluminium
• Gain: 38.5 dB
• Frequency range: 10.7–12.75 GHz
• Offset angle: 26°
• LNB holder diameter: 40 mm
• Mast clamp diameter: 32–76 mm
• Wind load at 100 km/h: 800 N
• Mounting type: Mast/Wall Mount
• Mounting material: Galvanized steel
• Surface treatment: Powder-coated
• UV resistance: Yes
• Operating temperature: -30 to +70 °C

Recommendations

Pair this antenna with a high-quality universal LNB and a sturdy mast for optimal signal reception. For multi-satellite setups, use a compatible multi-LNB bracket (not included).
