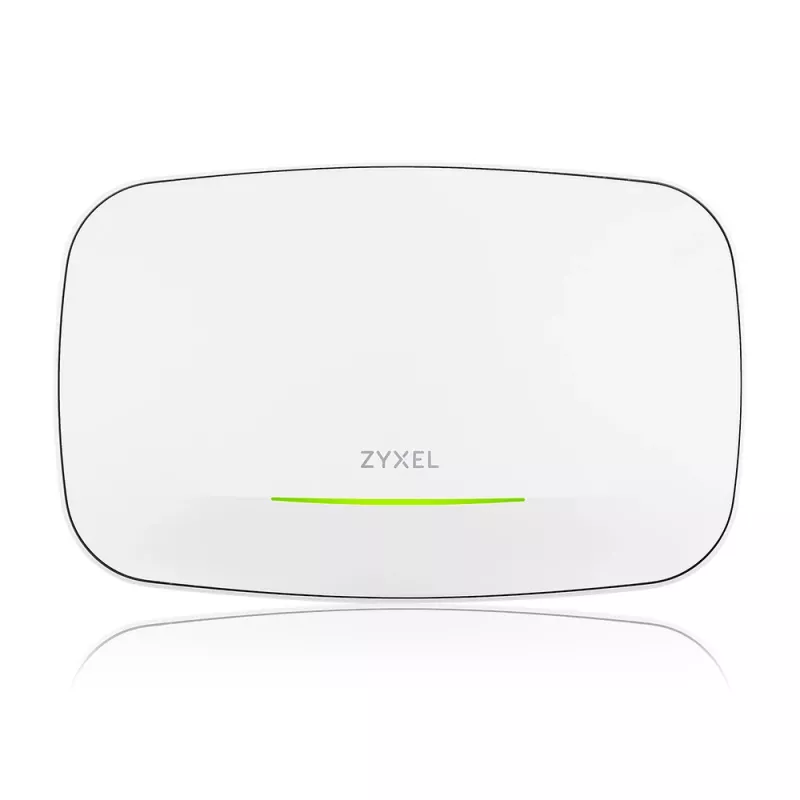

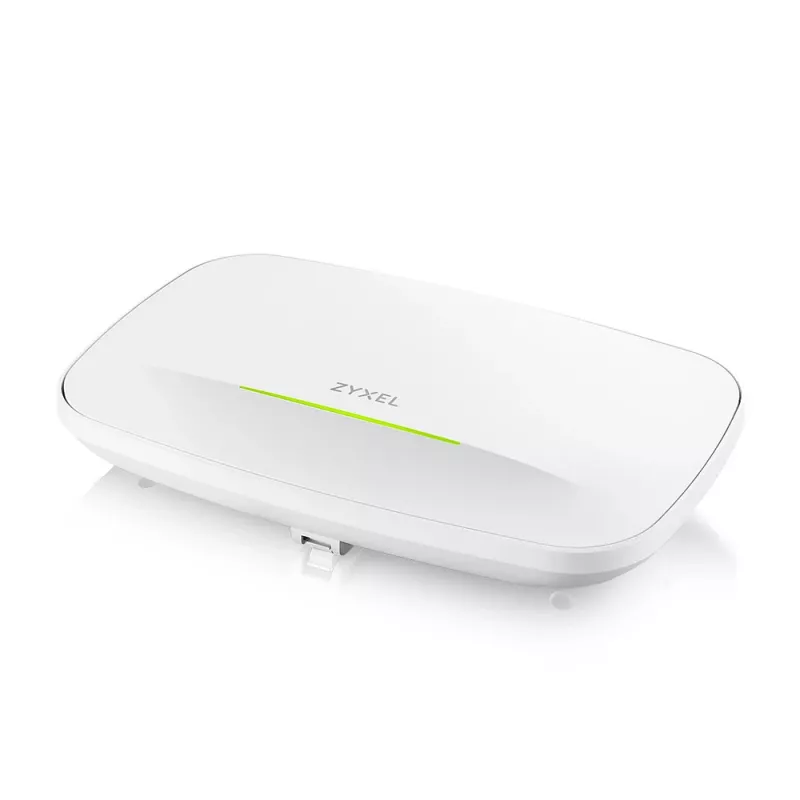

Zyxel WBE630S 11530 Mbit/s Λευκό Power over Ethernet (PoE)

The Zyxel WBE630S is a high-performance wireless access point designed for educational and small-to-medium business environments. It supports operation on 2.4 GHz, 5 GHz and 6 GHz bands with a combined maximum data rate of up to 11,530 Mbit/s, a Qualcomm quad-core CPU and Power over Ethernet (PoE) for flexible installation. The device delivers WiFi 7-capable features including Multi-Link Operation (MLO) when managed via Nebula, and offers enhanced capacity and low-latency connectivity for digital learning, virtual classrooms and VR/AR applications.

Advantages

WBE630S provides multi-band throughput and durable hardware to support high-density deployments, delivering up to 12.3 Gbps peak performance for demanding wireless tasks. Integrated Smart Antenna technology automatically adapts antenna patterns to reduce interference and improve coverage across different mounting options. The unit includes modern security protocol support (WEP, WPA, WPA2, WPA3) and dual RJ-45 Ethernet ports, simplifying secure connectivity and network integration.

Suitable for

• Educational institutions (classrooms, lecture halls, libraries)
• Small and medium business offices with high device density
• Spaces requiring low-latency wireless for virtual classrooms and VR/AR
• Environments where PoE installation and minimal cabling changes are preferred

Key specifications

• Wireless bands: 2.4 GHz, 5 GHz, 6 GHz
• Maximum data transfer rate: 11,530 Mbit/s
• Processor: Qualcomm quad-core CPU

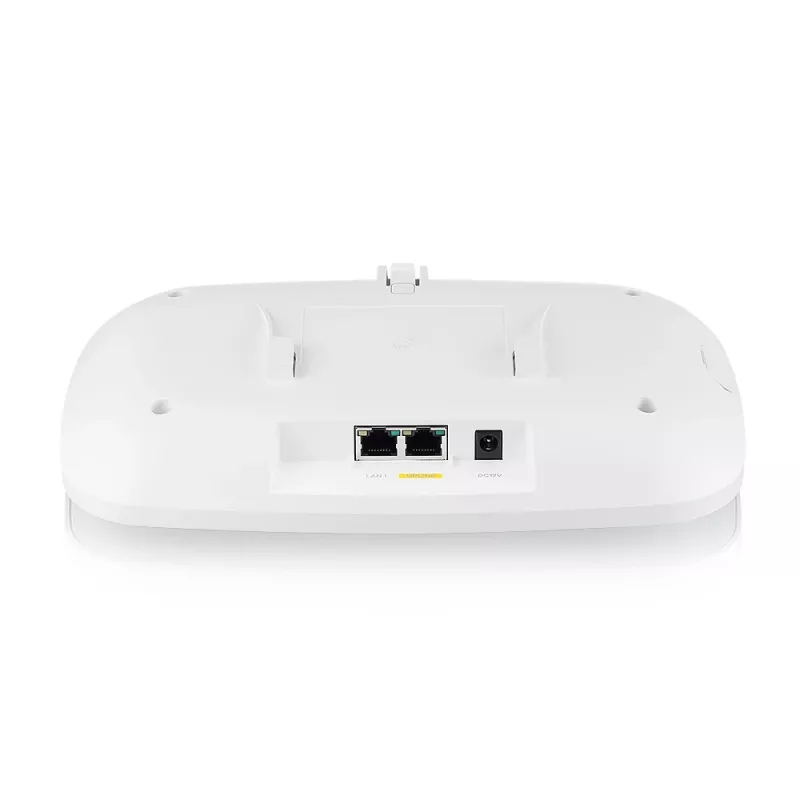

• Ports: 2 × Ethernet LAN (RJ-45)
• Security: WEP, WPA, WPA2, WPA3; SNMP support
• Power: Power over Ethernet (PoE)
• Colour: White
• Weight: 0.815 kg

How to use

Mount the WBE630S according to site requirements and connect it to the network using an RJ-45 cable with PoE power or a compatible power source. Configure the access point through the device’s management interface or via Zyxel Nebula cloud management to enable MLO and other WiFi 7 features. Assign SSIDs, security settings (WPA3 recommended where supported) and VLAN or QoS policies as required for your network design. Place access points to provide overlapping coverage with minimal interference, using Smart Antenna adjustments as needed.

Recommendations

For best results in education deployments, use Nebula management to enable Multi-Link Operation (MLO), keep firmware up to date, and pair the access point with compatible switches such as Zyxel XMG1915 series to increase network throughput without changing existing cabling.
