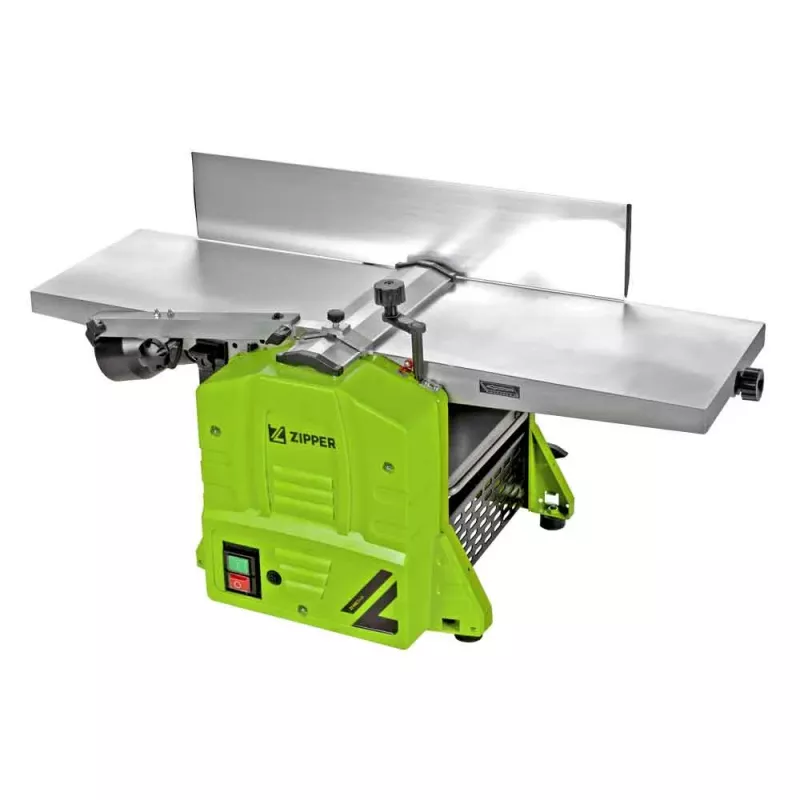

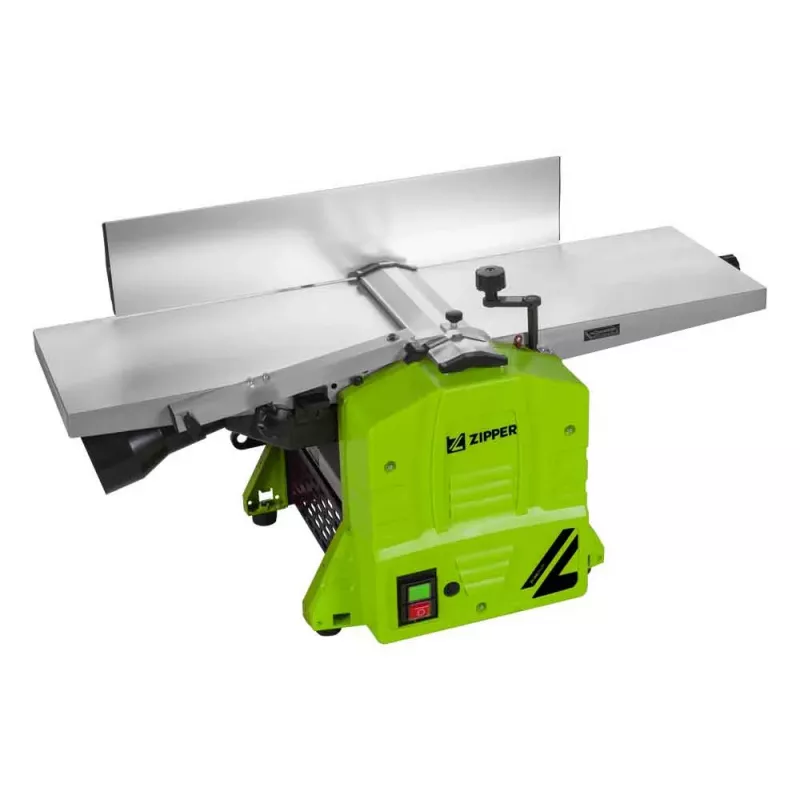

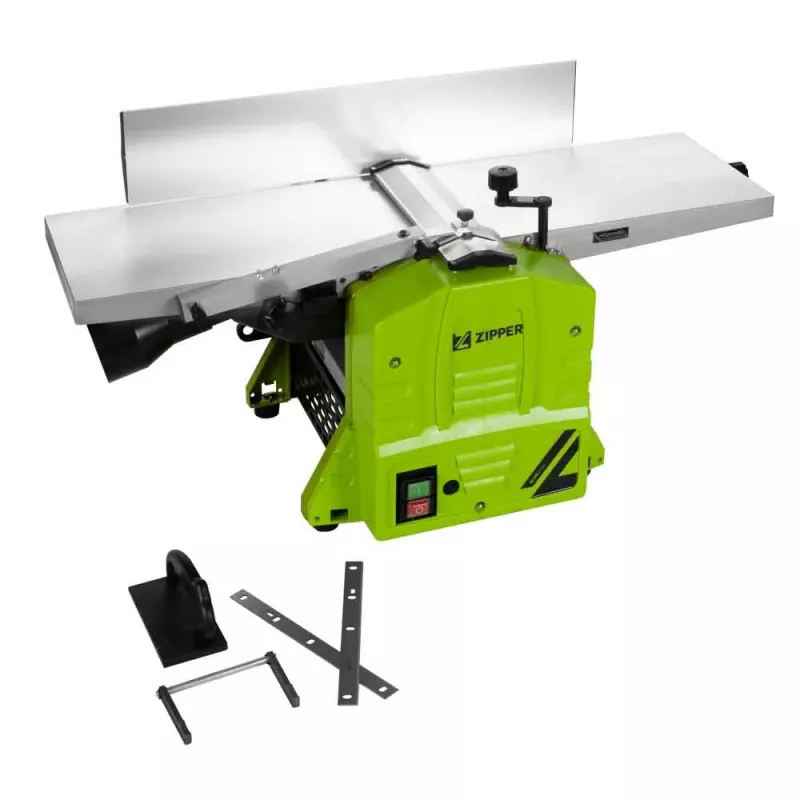

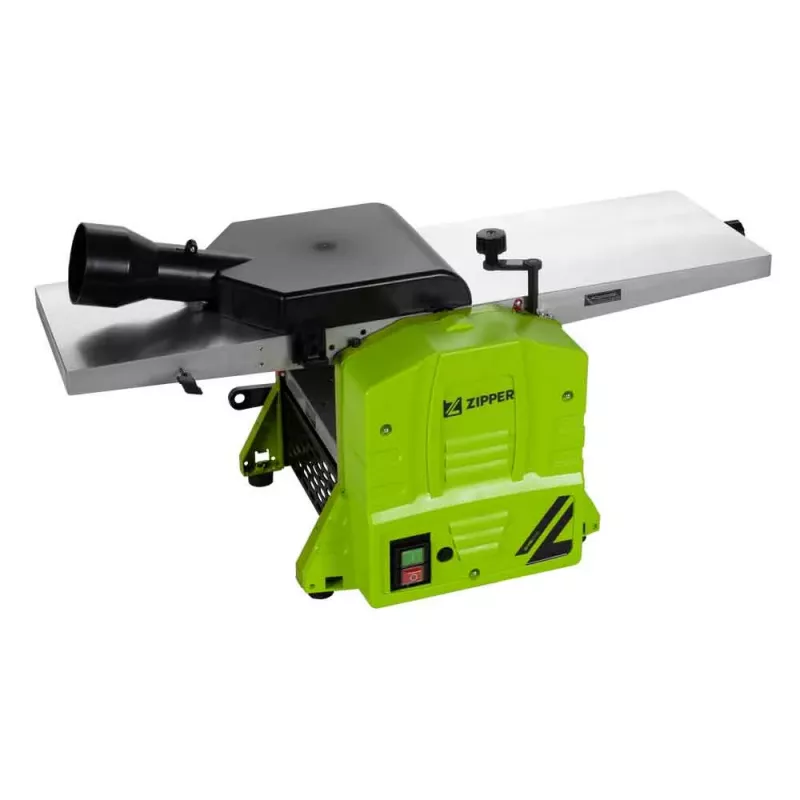

Zipper ZI-HB254N πλάνη ισιώματος και χονδρίσματος 1500 W

In a small joinery workshop, the Zipper ZI-HB254N handles both surface planing and thicknessing with a single 1500 W motor. The 254 mm planing width takes boards up to 2.5 mm deep per pass, while the thicknessing table adjusts from 6 to 120 mm for dimensioning stock. Two HSS knives spin at 9000 rpm on the cutter block, fed at 6 m/min for consistent results. The cast aluminium fence tilts from 90° to 135° for chamfers and angled edges. A 100 mm dust extraction port connects to a shop vacuum to keep the work area clear.

Key specifications

• Motor power: 1500 W
• Max. planing width: 254 mm
• Max. planing depth: 2.5 mm
• Thicknessing height range: 6 - 120 mm
• Max. thicknessing depth: 2.0 mm
• Feed speed: 6 m/min
• Cutter block speed: 9000 rpm
• Number of planing knives: 2
• Planing table dimensions: 960 x 254 mm
• Thicknessing table dimensions: 270 x 254 mm
• Fence tilt range: 90° - 135°
• Dust extraction port diameter: 100 mm
• Sound pressure level: 93 dB(A)

Why choose it

Combining two machines in one saves floor space and cost. The 254 mm capacity suits furniture components, door frames and laminated panels. The 100 mm extraction port fits common workshop ducting, and the fence locks securely for repeatable bevels.

Ideal use cases

• Flattening and squaring rough-sawn timber
• Thicknessing boards to consistent dimensions
• Creating chamfers and angled edges on workpieces
• Preparing stock for joinery and cabinet making

Good to know

The machine runs on a standard 230 V / 50 Hz supply. Two HSS knives are fitted; spare knives are available separately. The aluminium tables resist corrosion and provide a smooth feed surface.
