Zebra Βάση αυτοκινήτου για επαγωγική φόρτιση

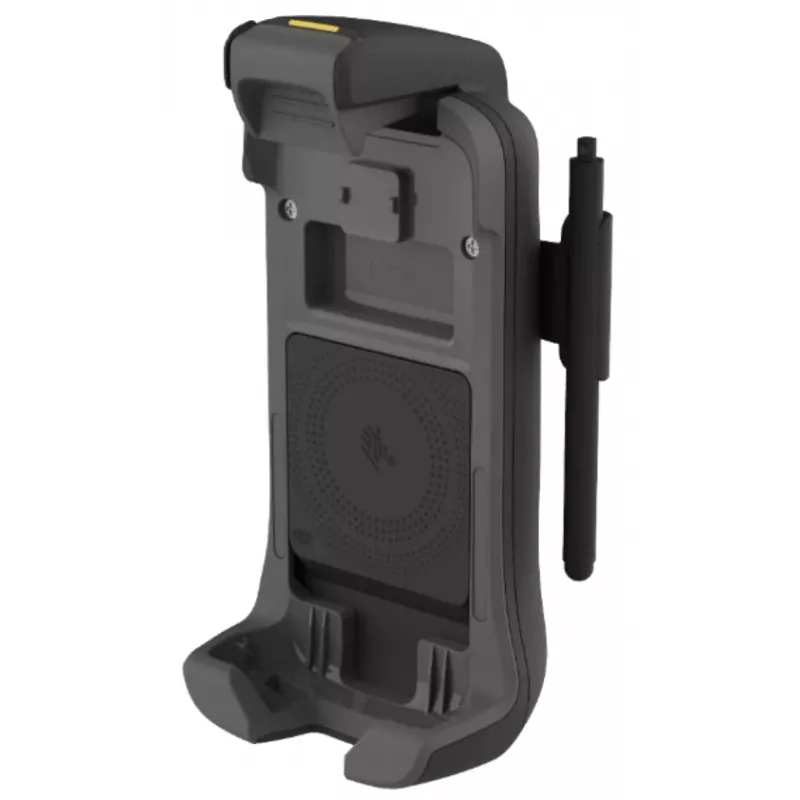

Delivery drivers and field technicians rely on their Zebra TC5x mobile computers for route navigation, proof of delivery, and real-time data access. The CRD-TC78-WCVC-01 inductive vehicle cradle keeps those devices charged and secure throughout the shift, eliminating the hassle of fumbling with cables every time they get in and out of the vehicle. Simply drop the device into the cradle and the wireless charging begins automatically, with a status LED confirming the connection.

Key specifications

• Inductive (wireless) charging technology – no connector wear or alignment issues
• Compatible with Zebra TC5x series: TC51, TC52, TC56, TC57, TC52x, TC57x, TC53, TC58
• 10W wireless output for fast, efficient charging
• 12-24V DC input with over-current, over-voltage, and short-circuit protection

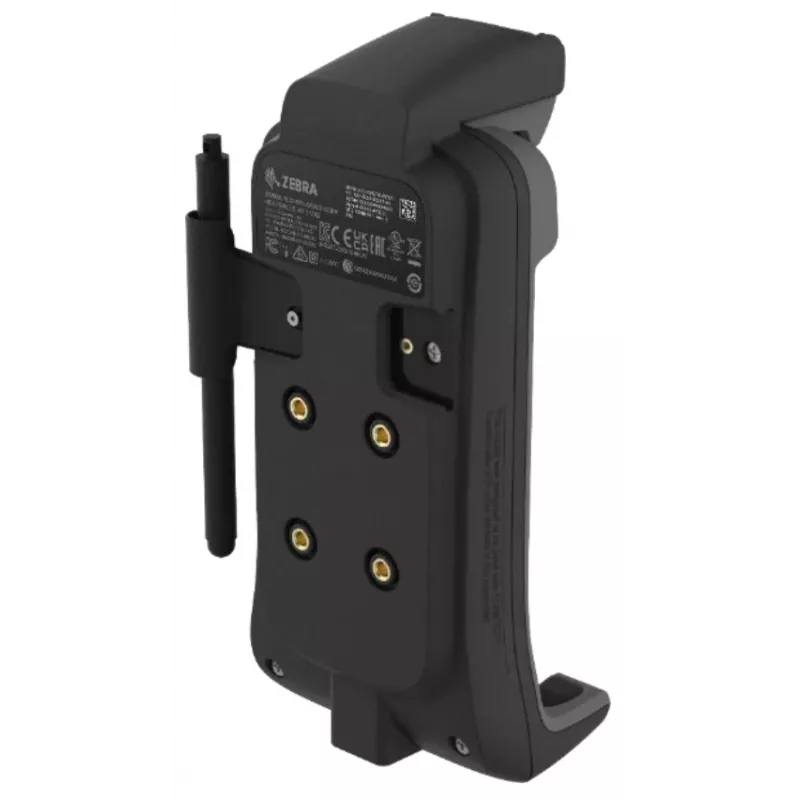

• AMPS hole pattern for standard mounting arms (RAM Mounts compatible)
• Secure latching mechanism keeps device firmly in place during vehicle movement
• Durable PC/ABS housing with metal mounting plate; MIL-STD 810G vibration resistance
• Operating temperature: -20°C to 60°C; storage: -40°C to 70°C
• Includes DC power cable; mounting hardware sold separately
• CE, FCC, RoHS certified

Why choose it

This cradle is built for the realities of mobile work. The inductive design means no exposed charging contacts to corrode or break, extending the life of both the cradle and the device. The secure latch and rugged construction keep your investment safe even on rough roads, while the wide temperature range ensures reliable performance in hot delivery vans or cold storage docks. With a simple drop-in action, drivers can focus on the job instead of fiddling with plugs.

Ideal use cases

• Route delivery and courier services using TC5x handhelds for signature capture and navigation
• Field service technicians who need their device charged between stops
• Warehouse and logistics operations with vehicle-mounted data terminals
• Public safety or utility crews requiring always-ready mobile computers in vehicles

Good to know

The cradle supports 10W wireless charging, which is sufficient for most TC5x models; actual charging speed may vary based on device battery state and temperature. Mounting hardware is not included, so you'll need a compatible AMPS-pattern arm or bracket. The DC power cable is included, but you'll need a 12-24V vehicle power source. For fixed installations, consider pairing with a RAM mount for optimal positioning.
