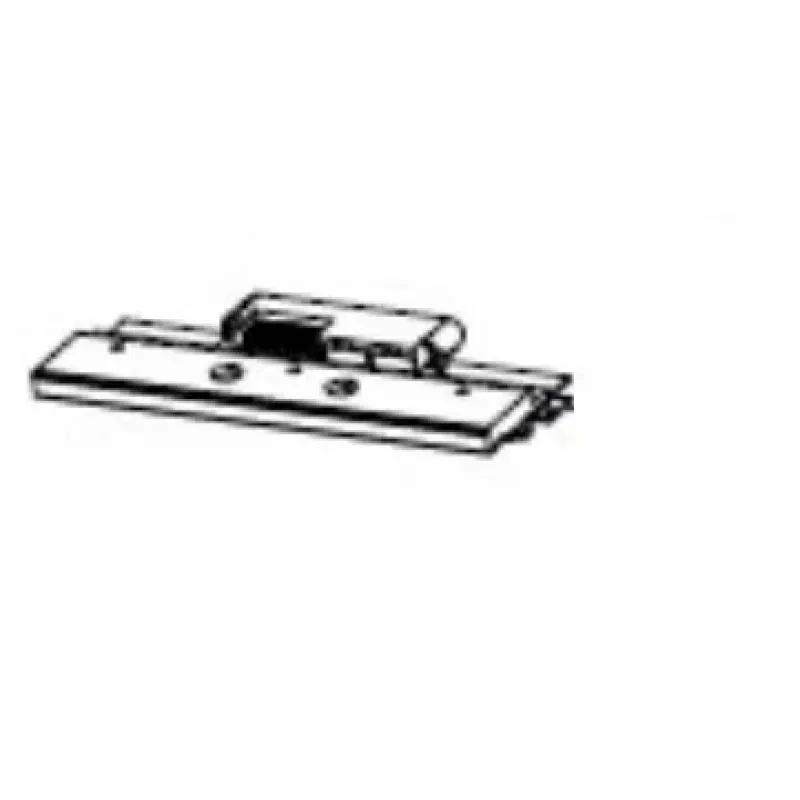

Zebra Kit μηχανισμού εκτύπωσης 203dpi ZD621T

When print quality degrades or the printhead fails, label output becomes unreadable and operations stall. This Zebra print mechanism kit restores crisp, reliable printing for the ZD621T thermal transfer printer. It is a genuine replacement assembly engineered to exact specifications, ensuring consistent barcode and label clarity at 203 dpi resolution.

Who is it for

This kit is intended for service technicians, IT administrators, and maintenance teams responsible for keeping Zebra ZD621T printers in peak condition. It is suitable for warehouses, retail back offices, healthcare facilities, and logistics hubs where label accuracy is critical.

Main features

• Genuine Zebra printhead assembly for ZD621T thermal transfer printers
• 203 dpi resolution delivers sharp text, barcodes, and graphics
• Supports print widths up to 4.09 inches (104 mm) and speeds up to 8 ips (203 mm/s)
• Field replaceable unit (FRU) for straightforward installation
• Durable metal and composite housing in black/silver
• Complete kit with necessary components for replacement

Specifications

• Brand: Zebra
• Model: P1112640-234
• MPN: P1083320-010
• Resolution: 203 dpi
• Print technology: Thermal transfer
• Maximum print width: 4.09 in (104 mm)
• Maximum print speed: 8 in/s (203 mm/s)
• Product type: Printhead assembly kit
• Condition: New

Tips

Always power off and unplug the printer before installation. Follow the ZD621T service manual for proper alignment and torque settings. After replacement, run a test print and calibration to verify print quality and media registration.
