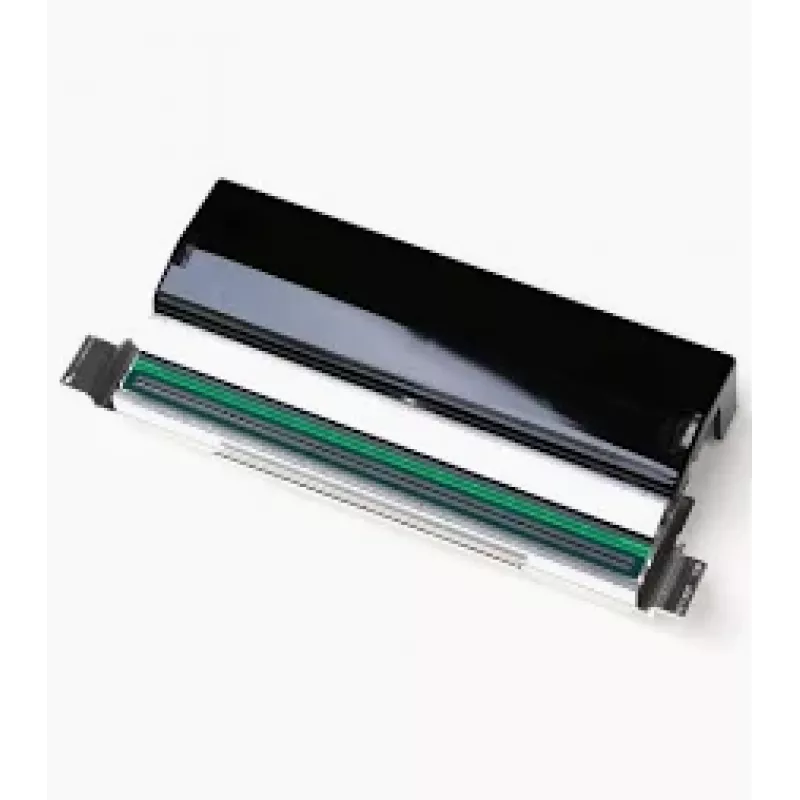

Kit κεφαλής εκτύπωσης 203 dpi ZT231R serialized RFID

When print quality degrades or fails on your Zebra ZT231R industrial RFID printer, a worn printhead is often the culprit. This genuine Zebra printhead kit restores crisp, reliable 203 dpi printing for barcodes, text, and graphics on labels and tags. Engineered specifically for the ZT231R (and compatible with ZT230/ZT231 series), it ensures accurate RFID encoding and long-lasting performance in demanding environments.

Who is it for

This printhead is ideal for warehouse, manufacturing, and logistics operations that depend on the Zebra ZT231R for high-volume RFID label printing. It suits maintenance technicians and IT staff responsible for printer uptime, as well as businesses that require authentic, serialized components for warranty compliance and quality assurance.

Main features

• Genuine Zebra printhead kit with serialization for authenticity and tracking
• 203 dpi resolution (8 dots/mm) for sharp, scannable output
• Designed for Zebra ZT231R industrial RFID printers; also fits ZT230 and ZT231 series
• Supports thermal transfer and direct thermal printing methods
• Maximum print width: 4.09 inches (104 mm)
• Thin film printhead technology with high-quality ceramic and metal construction
• User-replaceable for minimal downtime
• Industrial-grade duty cycle for continuous operation

Specifications

• Product type: Printhead kit
• Print resolution: 203 dpi (8 dots/mm)
• Compatible products: Zebra ZT231R, ZT230, ZT231 series
• Printing method: Thermal transfer / direct thermal
• Maximum print width: 104 mm (4.09 in)
• Feature: Serialized for authenticity
• Material: Ceramic and metal components
• Installation: User-replaceable
• Technology: Thin film printhead
• Operating temperature: 5°C to 40°C (41°F to 104°F)
• Storage temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity range: 20% to 85% non-condensing
• Package contents: Printhead, installation instructions (may vary)

Tips

To maximize printhead life, clean the printhead regularly with isopropyl alcohol and a lint-free cloth, and use high-quality Zebra-certified media and ribbons. Always power off and unplug the printer before replacing the printhead, and follow the installation guide carefully to avoid damage.
