Zebra DS8208 AREA IMAGER SR CORDED - Σαρωτής χειρός

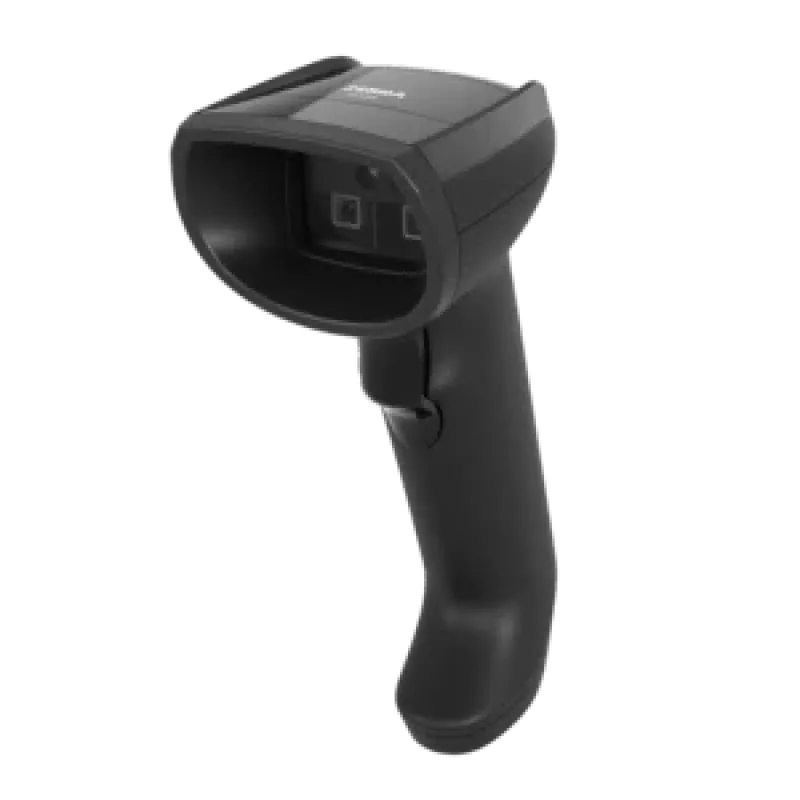

Scanning dense or poorly printed barcodes can slow down checkout lines and warehouse operations. The Zebra DS8208-SR40004VZWW handheld area imager eliminates that bottleneck by capturing 1D, 2D, and PDF417 codes instantly, even from mobile screens or damaged labels. Its high-resolution 1280 x 800 sensor and aggressive motion tolerance keep productivity high in retail, healthcare, and logistics environments.

Who is it for

This corded scanner is built for businesses that need reliable, omnidirectional scanning at a fixed workstation. It suits point-of-sale counters, pharmacy dispensing, inventory management, and light industrial applications where a durable, plug-and-play device is essential. The DS8208 is an ideal upgrade for teams moving from laser scanners to 2D imaging, or for anyone who needs to read barcodes from smartphone screens.

Main features

• High-performance area imager: 1280 x 800 pixel sensor delivers fast, accurate reads of 1D, 2D, and PDF417 barcodes, including poorly printed or damaged codes.
• Omnidirectional scanning: No need to align the scanner; the wide 48° horizontal by 30.6° vertical field of view captures codes from any angle.
• Superior motion tolerance: Reads 13 mil UPC codes at speeds up to 610 cm/sec (240 in./sec), ideal for fast-paced environments.
• Rugged design: Withstands multiple 1.8 m (6 ft.) drops to concrete and 1,000 tumbles at 0.5 m (1.6 ft.), with an IP42 rating against dust and moisture.
• Flexible connectivity: Supports USB, RS-232, Keyboard Wedge, and TGCS (IBM) 46XX over RS485, ensuring compatibility with existing systems.
• Intuitive aiming: Circular 617 nm amber LED and dual 660 nm red illumination LEDs provide clear targeting and reading.

Specifications

• Scanner type: Handheld area imager
• Decoding capability: 1D, 2D, PDF417
• Connectivity: Corded
• Host interfaces: USB, RS-232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
• Scan pattern: Omni-directional
• Imager sensor resolution: 1280 x 800 pixels
• Field of view: 48° H x 30.6° V (nominal)
• Minimum print contrast: 15% MRD
• Motion tolerance: 610 cm/sec (240 in./sec) for 13 mil UPC
• Drop specification: Withstands multiple 1.8 m (6 ft.) drops to concrete
• Tumble specification: 1,000 tumbles at 0.5 m (1.6 ft.)
• IP rating: IP42
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 5% to 95% relative humidity, non-condensing
• Light source: Aiming: Circular 617 nm amber LED; Illumination: (2) 660 nm red LEDs
• Colour: Black
• Power consumption: 5VDC +/- 10% @ 350mA (typical)
• Included accessories: USB cable

Tips

To maximize scanning speed, keep the scanner's exit window clean and free of scratches. For mobile coupon or loyalty card scanning, enable the appropriate mobile phone reading mode in the configuration. When using RS-232 or Keyboard Wedge, ensure the correct cable is ordered separately if not included in your kit.
