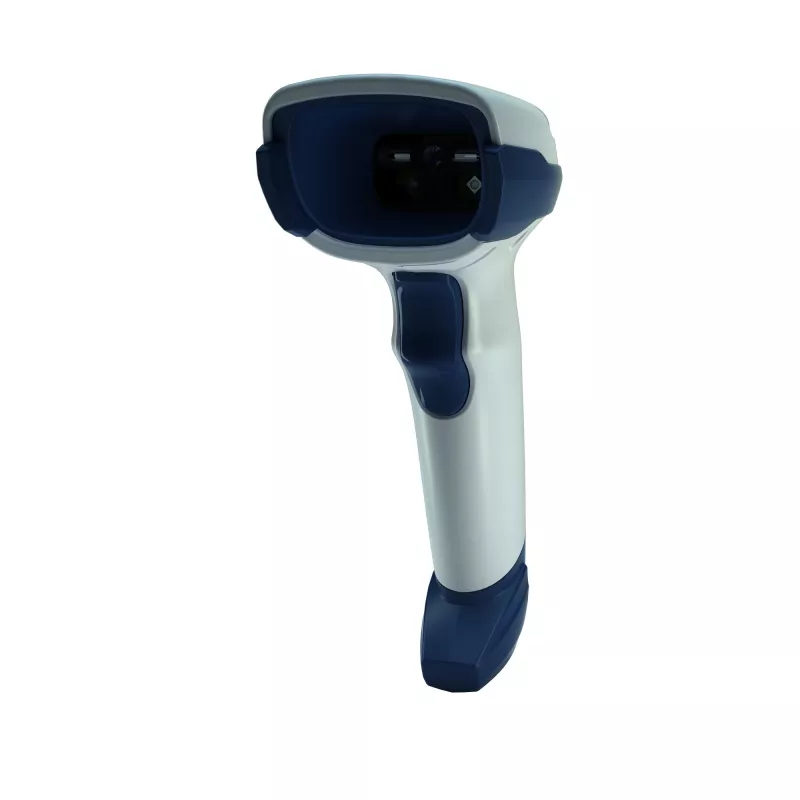

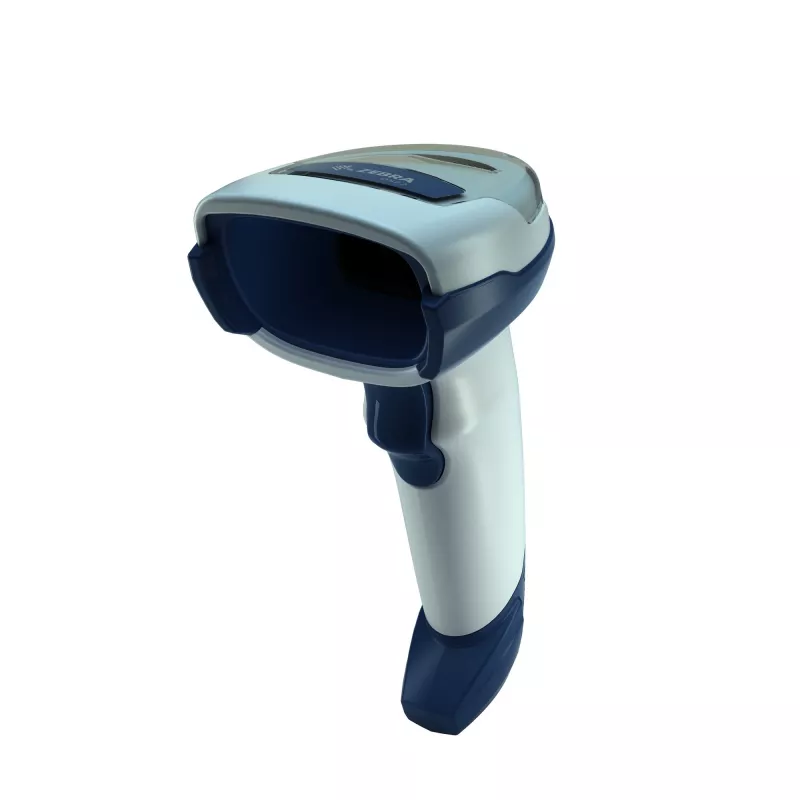

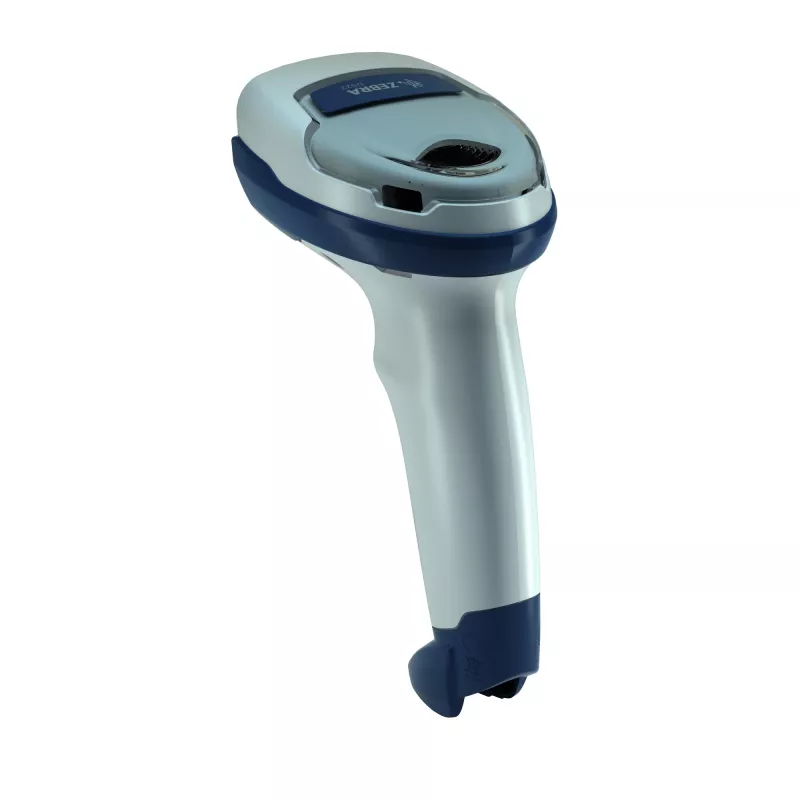

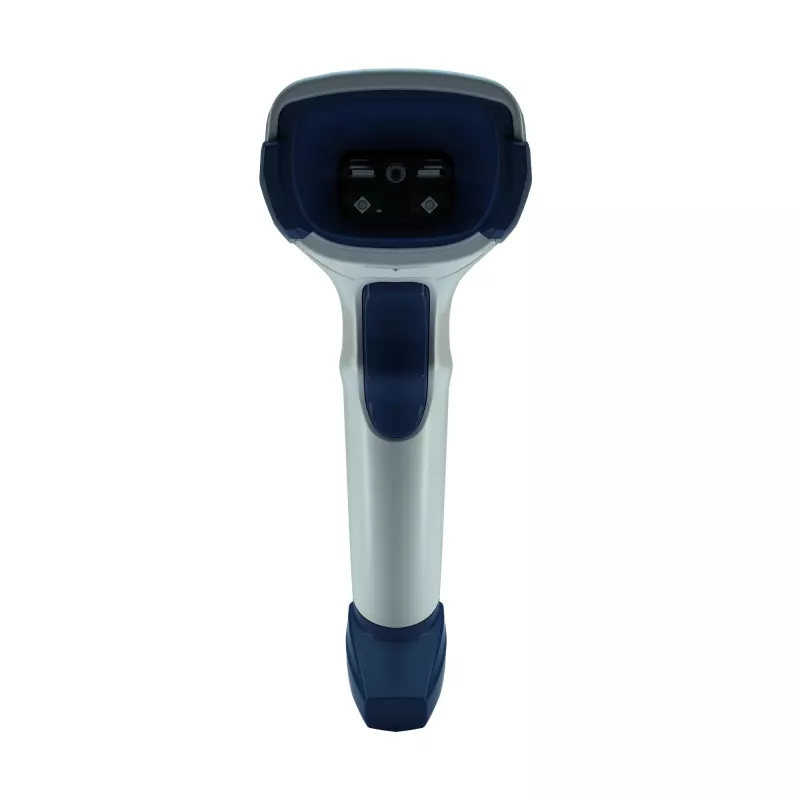

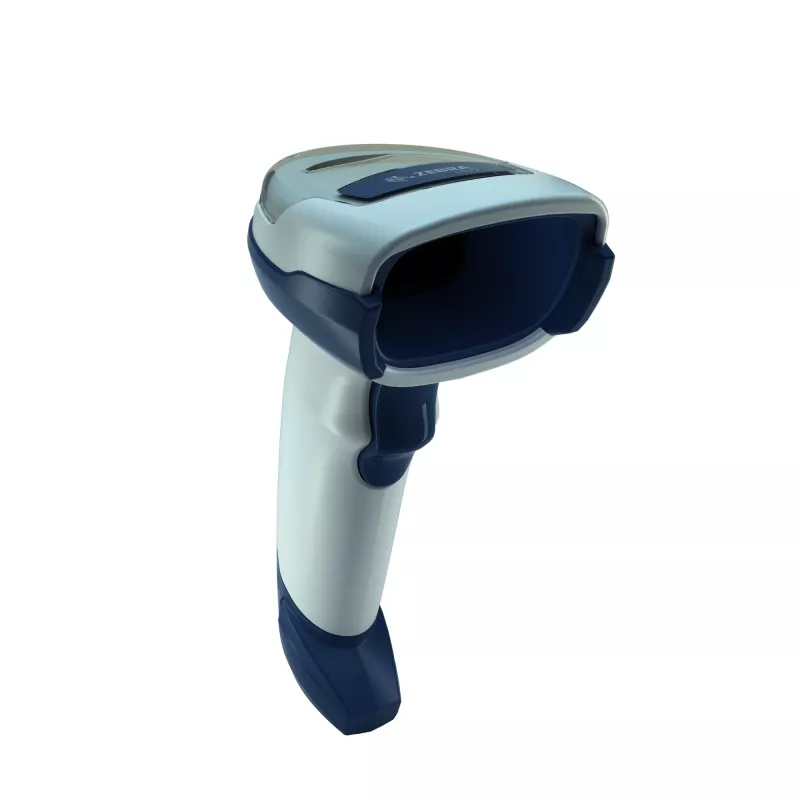

Zebra DS2208-HC φορητός αναγνώστης barcode 1D/2D LED λευκό

The Zebra DS2208-HC handheld bar code reader is designed for healthcare point-of-sale and clinical environments, supporting both 1D and 2D barcodes with an LED imaging sensor. Available as a corded model (DS2208) or a cordless variant (DS2278), the series delivers reliable scanning of item labels, printed and electronic coupons, and loyalty cards while maintaining a compact, lightweight form factor and an IP42 rating for basic protection against dust and moisture.

Advantages

The DS2208-HC combines affordable 1D/2D imaging performance with easy deployment and simple management. It reads a wide range of linear and matrix barcodes, offers multiple connectivity options (including USB and RS-232 for wired setups and a cordless model for wireless use up to approximately 10 meters), and features a long-lasting 2400 mAh Lithium‑Ion battery in the cordless configuration. Its small weight (about 161.6 g) and white housing make it suitable for frequent handling in clinical settings.

Suitable for

• Hospital and clinic patient wristband scanning
• Pharmacy prescription and medication label verification
• Point-of-sale scanning of 1D and 2D codes on products and coupons
• Inventory and stock management in healthcare storerooms

Key specifications

• Scanner type: 1D/2D imager
• Sensor type: LED
• Connectivity: Wired (USB, RS-232) or cordless option (Bluetooth, up to ~10 m)
• Supported 1D barcodes: MSI, GS1 DataBar Expanded, EAN-13, Code 93, Code 39, Code 128, Code 11, Codabar, Interleaved 2 of 5, U.P.C.
• Supported 2D codes: MaxiCode, Aztec Code, Composite Codes, Data Matrix, Han Xin, Micro QR Code, PDF417, TLC-39
• Battery (cordless model): 2400 mAh Lithium‑Ion
• Ingress protection: IP42
• Weight: 0.1616 kg
• Colour: White
• Manufacturer model/MPN: DS2208-HCBU2100AZR

How to use

Connect the corded DS2208 to the host system using the appropriate interface cable (USB or RS-232), or charge and pair the cordless DS2278 with the host via Bluetooth following the supplied pairing instructions. Aim the reader at the barcode so the illumination covers the code area, press the trigger to activate the aimer if required, and wait for the confirmation beep or LED acknowledgement. For repeated scanning in busy workflows, keep the scanner charged and configure host settings for the chosen interface.

Recommendations

Use the DS2208-HC in clean, indoor healthcare settings and avoid exposure to heavy sprays or immersion. Clean the housing and window with manufacturer-recommended disinfectants and follow infection-control protocols. Choose the cordless DS2278 for workflows that need mobility within approximately 10 meters; select the corded DS2208 when constant wired connectivity is required.
