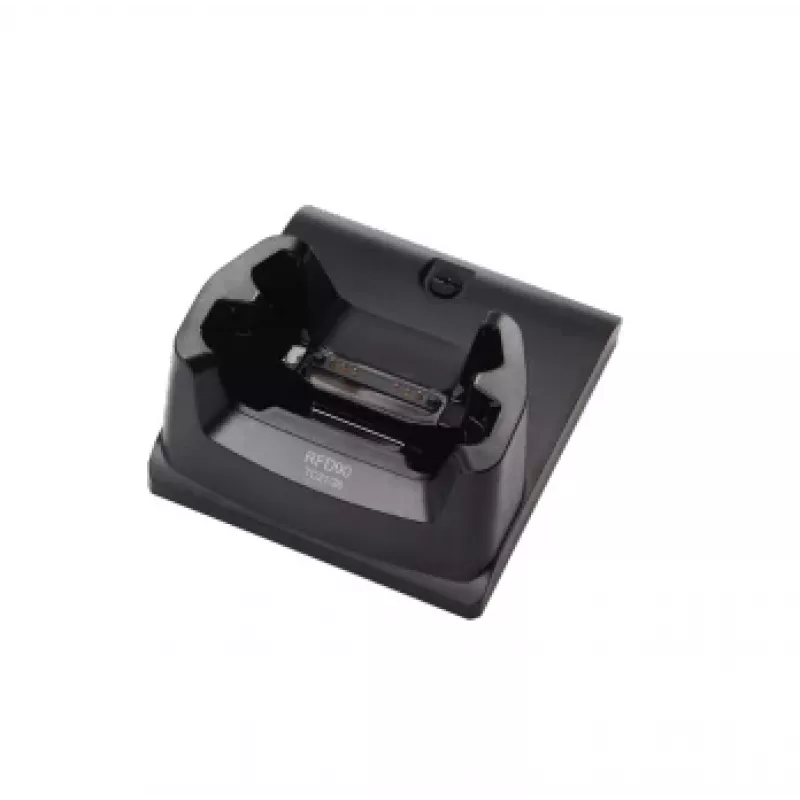

Zebra CUP-RFD90-TC2X-1R, εσωτερικού χώρου, AC, μαύρο

Warehouse associates and field technicians rely on the Zebra RFD90 UHF RFID sled attached to a TC2X mobile computer for high-volume asset tracking and inventory management. This single-slot cradle keeps that combination charged and connected at a workstation, ensuring the device is always ready for the next scan. The cradle simultaneously charges both the sled and the attached mobile computer, eliminating the need for separate power sources and reducing downtime.

Key specifications

• Compatible with Zebra RFD90 Ultra-Rugged UHF RFID Sled and TC2X Series (TC21, TC22, TC26, TC27)
• Single slot for sled with attached mobile computer
• Charges both devices simultaneously
• Data communication: USB-C (host) and Ethernet (network)
• LED charging status indicator
• Indoor use, black colour
• Desktop or wall-mountable (optional bracket)
• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to 70°C
• Humidity: 5% to 95% non-condensing
• Requires external power supply (sold separately, e.g., Zebra PWR-BGA12V50W0WW) and DC line cord (e.g., Zebra CBL-DC-388A1-01)

Why choose it

This cradle is purpose-built for the RFD90 and TC2X ecosystem, providing a secure and efficient charging and data transfer solution. Its simultaneous charging capability ensures both the sled and the mobile computer are always ready, while the Ethernet and USB-C ports allow for fast data synchronization and network connectivity. The robust design suits demanding indoor environments, and the LED indicator gives clear status at a glance.

Ideal use cases

• Charging and syncing RFD90 sleds with TC2X computers at warehouse workstations
• Maintaining RFID scanning equipment in retail backrooms or distribution centers
• Providing a fixed communication point for device management in field service offices
• Wall-mounting in tight spaces to keep devices accessible and charged

Good to know

Power supply and DC line cord are not included; order Zebra PWR-BGA12V50W0WW and CBL-DC-388A1-01 separately. The cradle is intended for indoor use only. For wall mounting, an optional bracket is required. This cradle does not include a spare battery charging slot; it charges the devices while docked.
