WLAN Stick AVM FRITZ!WLAN Stick AC 430 MU-MIMO

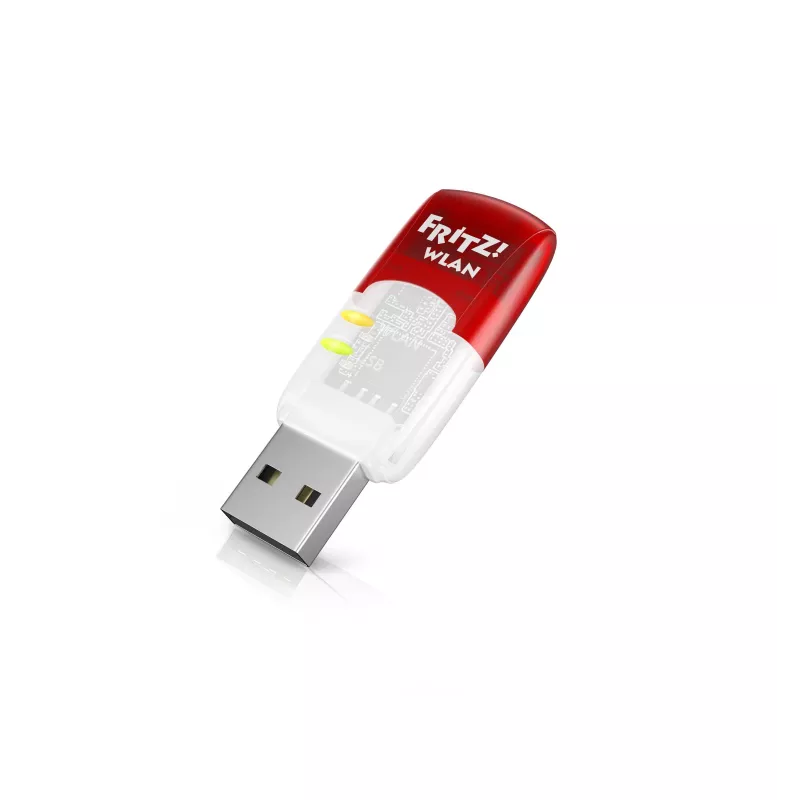

The AVM FRITZ!WLAN Stick AC 430 MU-MIMO is a compact USB WLAN adapter that adds dual-band wireless capability to computers and other USB-equipped devices. Supporting both 2.4 GHz and 5 GHz bands and a maximum data transfer rate of up to 433 Mbit/s, the stick implements modern IEEE 802.11 standards including 802.11ac and MU-MIMO technology to improve throughput and multi-device performance. The device connects via a USB host interface and can be used where an external WLAN connection is needed or to upgrade older systems to current wireless standards.

Advantages

The FRITZ!WLAN Stick AC 430 MU-MIMO provides dual-band operation that reduces interference and offers higher throughput on the 5 GHz band while retaining compatibility with 2.4 GHz networks. MU-MIMO support helps maintain performance when multiple clients are active. The USB form factor simplifies installation and portability, and the adapter supports a broad set of IEEE 802.11 standards for compatibility with many routers and access points.

Suitable for

• Upgrading laptops or desktops without integrated 5 GHz WLAN
• Stable wireless connections for streaming video and online conferencing
• Temporary or portable WLAN access on travel or at remote work locations
• Connecting older devices to modern 802.11ac networks

Key specifications

• Connectivity technology: Wired & Wireless
• Host interface: USB
• Maximum data transfer rate: 433 Mbit/s
• Supported frequency bands: 2.4 GHz and 5 GHz
• Networking standards: IEEE 802.11b/g/n/ac and 802.11i security
• MU‑MIMO support for improved multi-client throughput

How to use

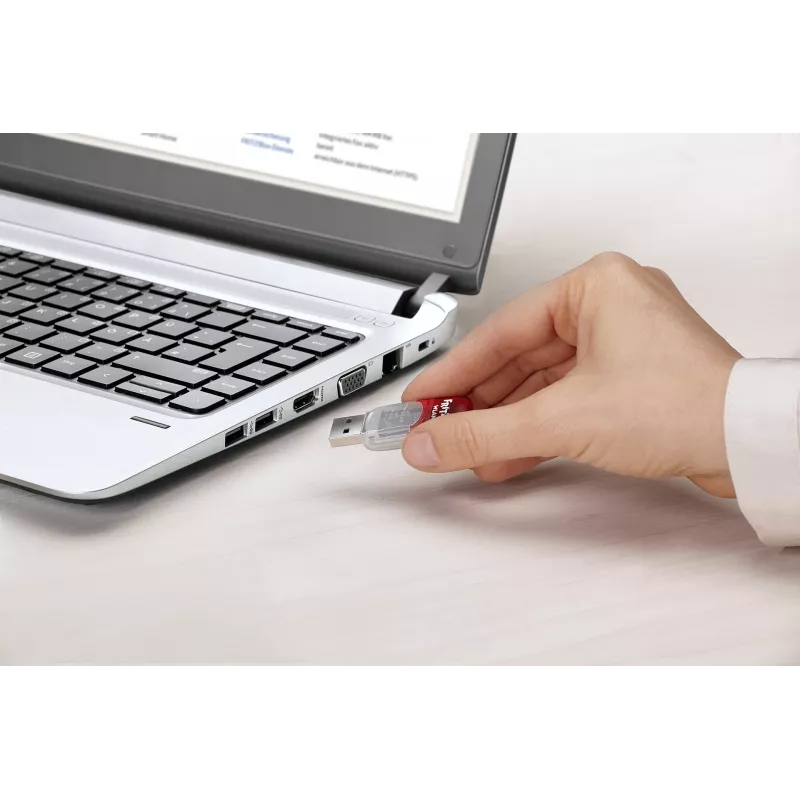

Plug the FRITZ!WLAN Stick AC 430 MU-MIMO into an available USB port on your device and allow the operating system to detect the adapter. Install any vendor drivers or utilities if prompted to ensure full functionality and compatibility with your router. Use the system’s network manager to scan for available SSIDs, select the desired network, and enter the network password to establish a secure connection. Choose the 5 GHz band when available for higher throughput or 2.4 GHz for extended range and legacy compatibility.

Recommendations

Place the adapter in a USB port with clear line-of-sight to the router when possible and avoid physical obstructions to optimize signal strength. For stationary setups, use a rear USB port or a USB extension cable to reduce electromagnetic interference. Keep device drivers up to date to ensure security and the best performance with MU‑MIMO and 802.11ac features.
