Weidmüller Τερματικό στήριγμα 56x8x47mm WEW 35/2

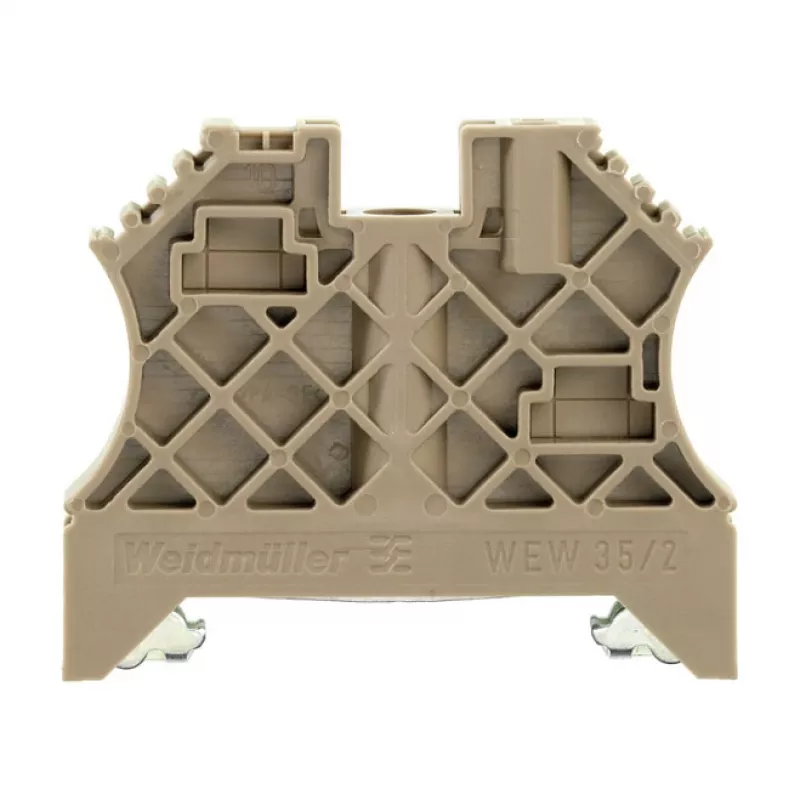

The Weidmüller WEW 35/2 end bracket is a high-quality DIN rail accessory designed to secure terminal blocks and other components on TS 35 DIN rails. Made from durable polyamide, this end stop ensures reliable positioning and prevents lateral movement in industrial control cabinets and electrical enclosures.

Advantages

Easy snap-on installation without tools saves time during assembly. The polyamide material offers excellent resistance to oils, greases, and common chemicals, ensuring long-lasting performance in harsh environments. With a wide operating temperature range from -50 °C to +100 °C, it is suitable for extreme conditions. The UL 94 V-2 flammability rating provides added safety.

Suitable for

• Industrial control cabinets
• Electrical enclosures
• DIN rail mounting systems
• Securing terminal blocks, relays, and other modular components

Key specifications

• Product Type: End Stop / End Bracket
• Mounting Type: DIN Rail TS 35
• Material: Polyamide (PA)
• Color: Dark Beige
• Dimensions: 56 x 8 x 47 mm
• Operating Temperature: -50 °C to +100 °C
• Flammability Rating: UL 94 V-2
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Halogen-free: Yes
• Certifications: cULus, EAC
• Series: WEW

Recommendations

For optimal performance, use with Weidmüller terminal blocks and other DIN rail components. Ensure the rail is clean and properly grounded before installation.
