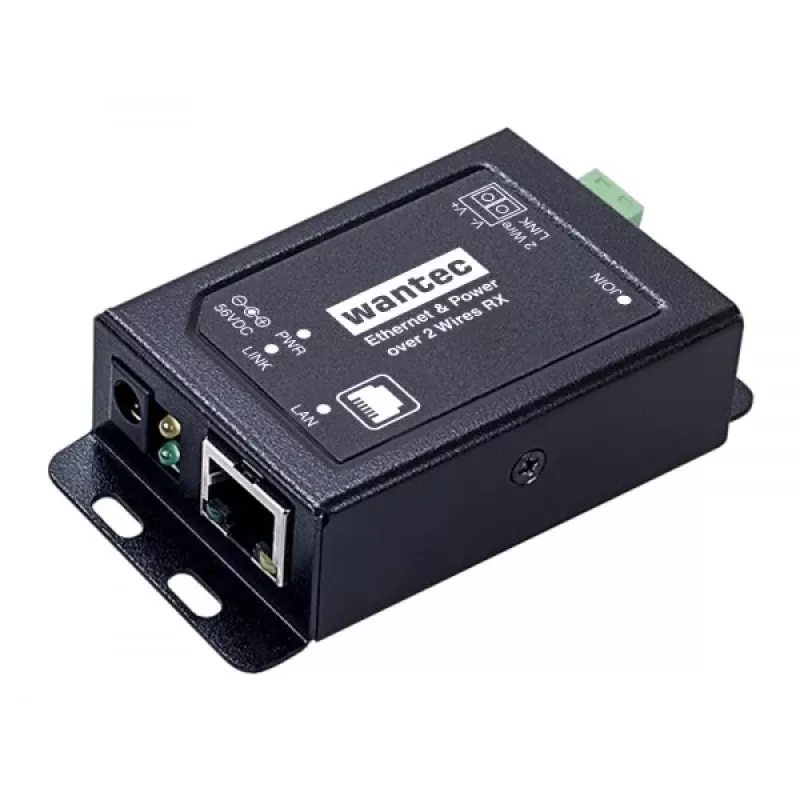

WANTEC 5720 PoE Injector Fast Ethernet 10/100 Mbps Μαύρο

The WANTEC 5720 is a high-performance Power over Ethernet (PoE) injector designed to deliver both data and power over a single Ethernet cable. Compliant with IEEE 802.3af and IEEE 802.3at (PoE+) standards, it provides up to 30W of power to compatible devices such as IP cameras, wireless access points, and VoIP phones. With support for 10/100 Mbps Fast Ethernet, this injector ensures reliable network connectivity for your devices.

Advantages

Simplifies installation by eliminating the need for separate power cables near each device. Supports both PoE and PoE+ standards, offering flexibility for a wide range of powered devices. Compact and durable design allows for desktop or wall-mountable installation. Plug-and-play operation requires no configuration, making it easy to deploy.

Suitable for

• IP security cameras
• Wireless access points
• VoIP phones
• Network devices requiring PoE power

Key specifications

• Product Type: PoE Injector
• Ethernet Standard: Fast Ethernet
• Data Transfer Rate: 10/100 Mbps
• PoE Standards: IEEE 802.3af, IEEE 802.3at (PoE+)
• Max. PoE Output Power: 30 W
• PoE Output Voltage: 48-56 V DC
• Data Ports: 1x RJ-45 (Data In)
• PoE Ports: 1x RJ-45 (Data + Power Out)
• Duplex Mode: Full-duplex, Half-duplex
• Network Cabling: Cat5, Cat5e, Cat6
• LED Indicators: Power, PoE Status, Link/Activity
• Color: Black
• Power Input: 100-240 V AC, 50/60 Hz
• Protection Features: Over-current, Over-voltage, Short-circuit protection
• Operating Temperature: -10°C to 50°C
• Installation: Plug-and-Play, Desktop/Wall-mountable

Recommendations

For optimal performance, use with Cat5e or higher cabling. Ensure the powered device is compatible with PoE or PoE+ standards. This injector is ideal for expanding PoE capabilities in small to medium-sized networks.
