WAGO πλάκα τερματισμού και ενδιάμεση 2205-7692 πάχους 1 mm πορτοκαλί

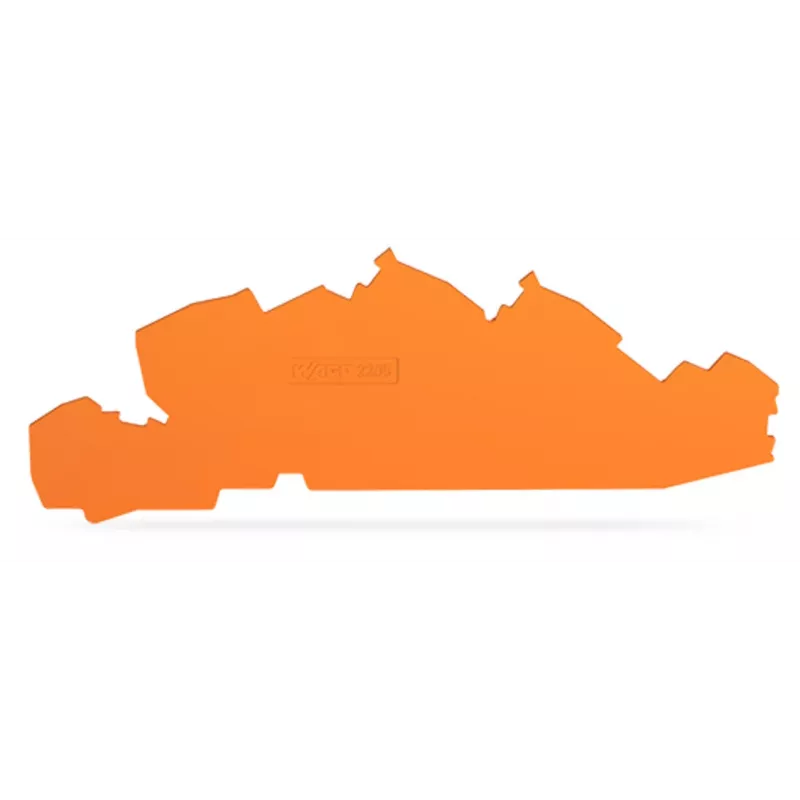

The WAGO 2205-7692 End and Intermediate Plate is a high-quality accessory designed for use with the TOPJOB® S 2205 Series terminal blocks. This 1 mm thick orange plate provides electrical isolation, visual separation, and assembly termination, making it an essential component for industrial control, panel building, and automation applications. Manufactured from durable Polyamide 66 (PA 66) with a UL 94 V-0 flammability rating, it ensures reliable performance in demanding environments.

Advantages

This end and intermediate plate offers several key benefits: it provides clear visual separation between terminal blocks, enhances electrical isolation, and simplifies assembly termination. Its compact 1 mm thickness saves space on the DIN rail, while the orange color allows for easy identification and coding. The plate is RoHS compliant and holds VDE, UL, and CSA approvals, ensuring global acceptance and safety.

Suitable for

• Industrial control panels
• Building automation systems
• Electrical distribution and wiring
• Machine and plant engineering

Key specifications

• Product Type: End and Intermediate Plate
• Series: TOPJOB® S
• Compatible Terminal Block Series: 2205 Series
• Color: Orange
• Thickness: 1 mm
• Insulation Material: Polyamide 66 (PA 66)
• Flammability Rating: UL 94 V-0
• Operating Temperature Range: -35 ... +105 °C
• Storage Temperature Range: -35 ... +105 °C
• Mounting Position: Side (for rail-mount terminal blocks)
• Function: Electrical isolation, visual separation, assembly termination
• Approvals: VDE, UL, CSA
• Environmental Compliance: RoHS compliant
• Weight (per piece): 1.5 g

Recommendations

For optimal performance and safety, always use WAGO end and intermediate plates with compatible TOPJOB® S 2205 Series terminal blocks. Ensure proper mounting on a DIN rail and follow manufacturer guidelines for installation.
