Legrand 004832 Ακροδέκτης σειράς

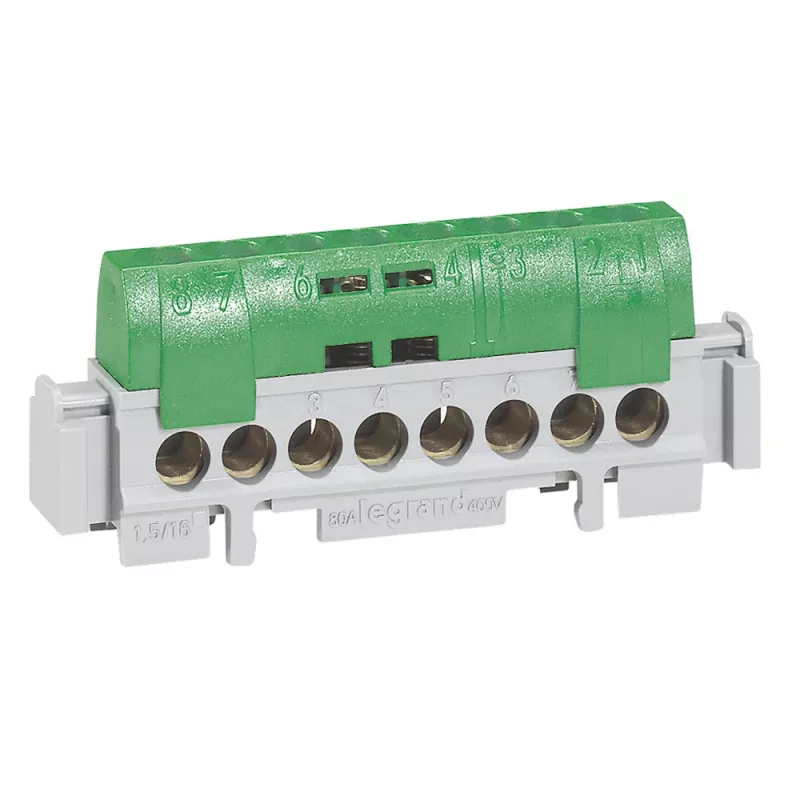

The Legrand 004832 terminal block is an earth (PE) connector designed for safe and standard-compliant electrical grounding. It is supplied ready for use with screws not tightened and meets IEC 60998-2-1 requirements. The compact insulated block provides eight connection points for conductors from 1.5 to 16 mm² and is suitable for mounting on a DIN rail with a universal support (Cat. No. 0 048 11) or on a 12 x 2 mm flat bar. The product measures approximately 75 mm in functional length and is finished in green to indicate earth/PE.

Advantages

The terminal block supports conductor cross-sections up to 16 mm² and allows up to 100 A (with 25 mm² input) or 80 A (with 16 mm² input) at 400 V~, providing robust current-carrying capacity for grounding applications. It is supplied ready for installation, simplifying wiring work, and its compliance with IEC 60998-2-1 ensures compatibility with standard electrical installations. The green colour clearly identifies the earth terminal.

Suitable for

Key specifications

How to use

Mount the terminal block on a DIN rail using the specified universal support (Cat. No. 0 048 11) or fix it to a 12 x 2 mm flat bar. Insert conductors into the eight connection points, observing conductor size limits (1.5–16 mm²). Tighten the screws to secure conductors — note the product is supplied with screws not tightened. Ensure that grounding conductors are connected according to local wiring rules and that the assembly is performed with the power isolated.

Recommendations

Use the terminal block for protective earth connections only; verify conductor cross-section and tightening torque per installation guidelines. For high-current grounding where 25 mm² conductors are used, ensure wiring and protective devices are rated for 100 A at 400 V~. Follow local electrical codes and perform installation by a qualified electrician.
