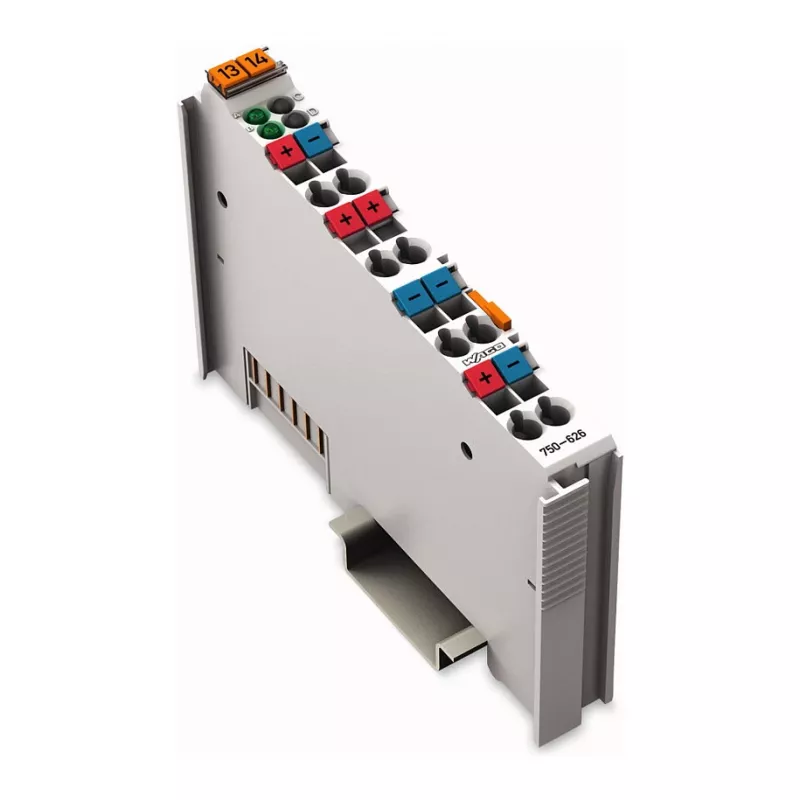

WAGO 750-626 Module φίλτρου τροφοδοσίας 24 V DC, CAGE CLAMP, γκρι

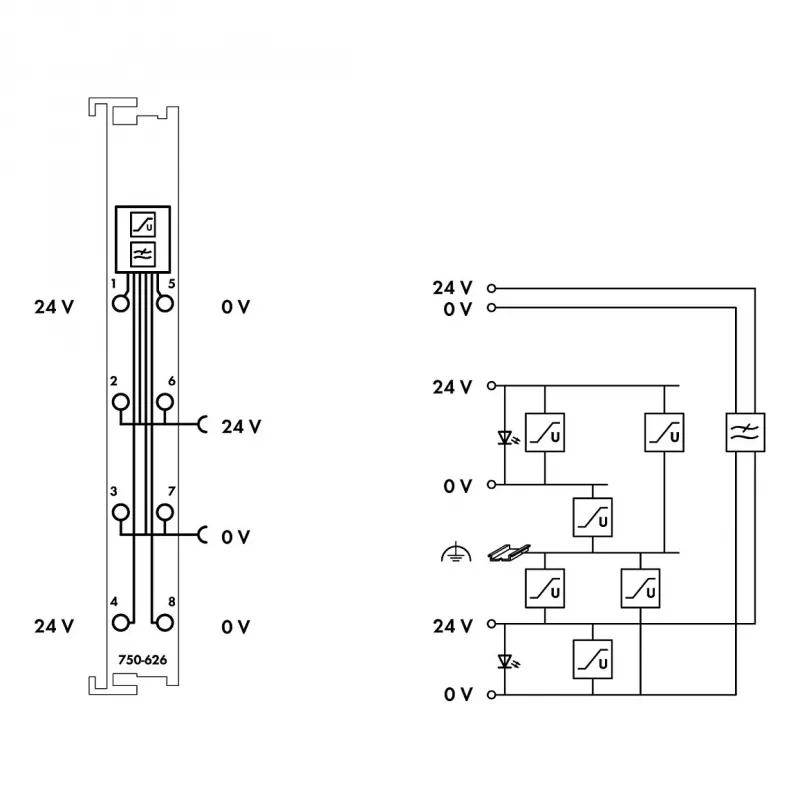

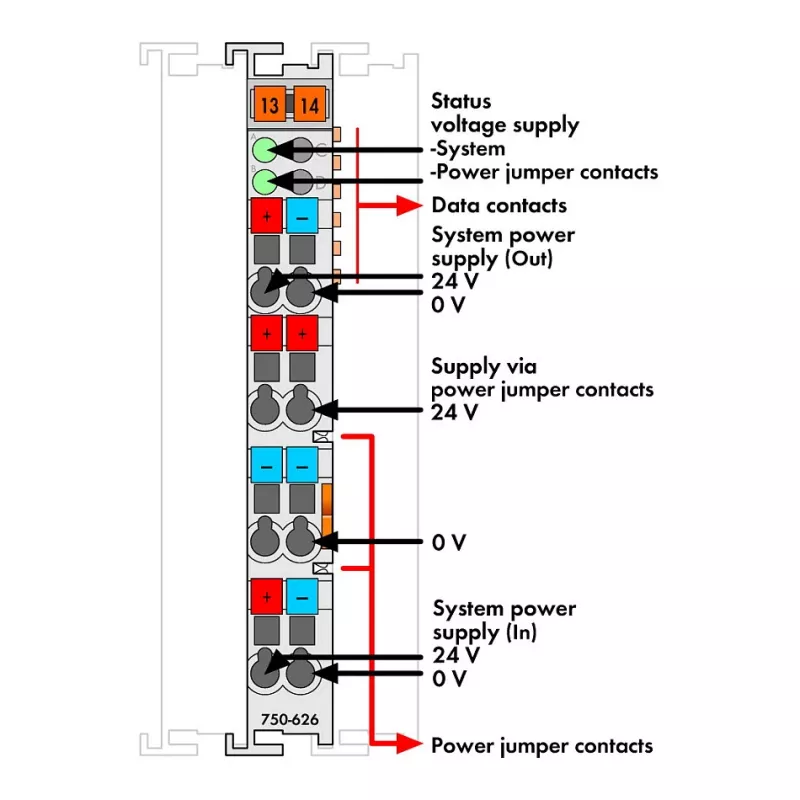

The WAGO 750-626 is a supply filter module for the 24 V DC system supply. It filters the 24 V system supply and includes overvoltage protection. The module is grey and mounts on DIN 35 × 15 rail.

Key features

• Supply filter module for 24 V DC system supply
• Includes overvoltage protection
• Shock-resistant and vibration-resistant
• CAGE CLAMP connection
• IP20 protection rating

Specifications

• Brand: WAGO
• MPN: 750-626
• Product colour: Grey
• Mounting type: DIN 35 × 15
• Fire load: 1.247 MJ
• DC input voltage: 24 V
• Output current: 10 A
• Conductor range: 0.08 mm² to 2.5 mm²
• Wire gauge AWG (max.): 14 AWG
• Wire gauge (min.): 28
• Wire connection type: CAGE CLAMP
• International protection code: IP20
• Operating temperature: -25 to 85 °C
• Relative humidity during operation: 0 to 95%
• Width: 12 mm
• Depth: 100 mm
• Height: 69.8 mm
• Weight: 50.61 g
